Adds a backlit metal keypad to the modular door station
The keypad module of the VTO4202FB series modular door stations. Its metal keyboard lights from behind, the aluminum alloy body works at an outdoor entrance and it draws power from the other modules in the chain.
100 x 100 x 31 mmmodule size
IP65Protection Grade
IK07impact rating
5 VDCPower Options
-30 °C to +60 °COperating Temperature
Key features

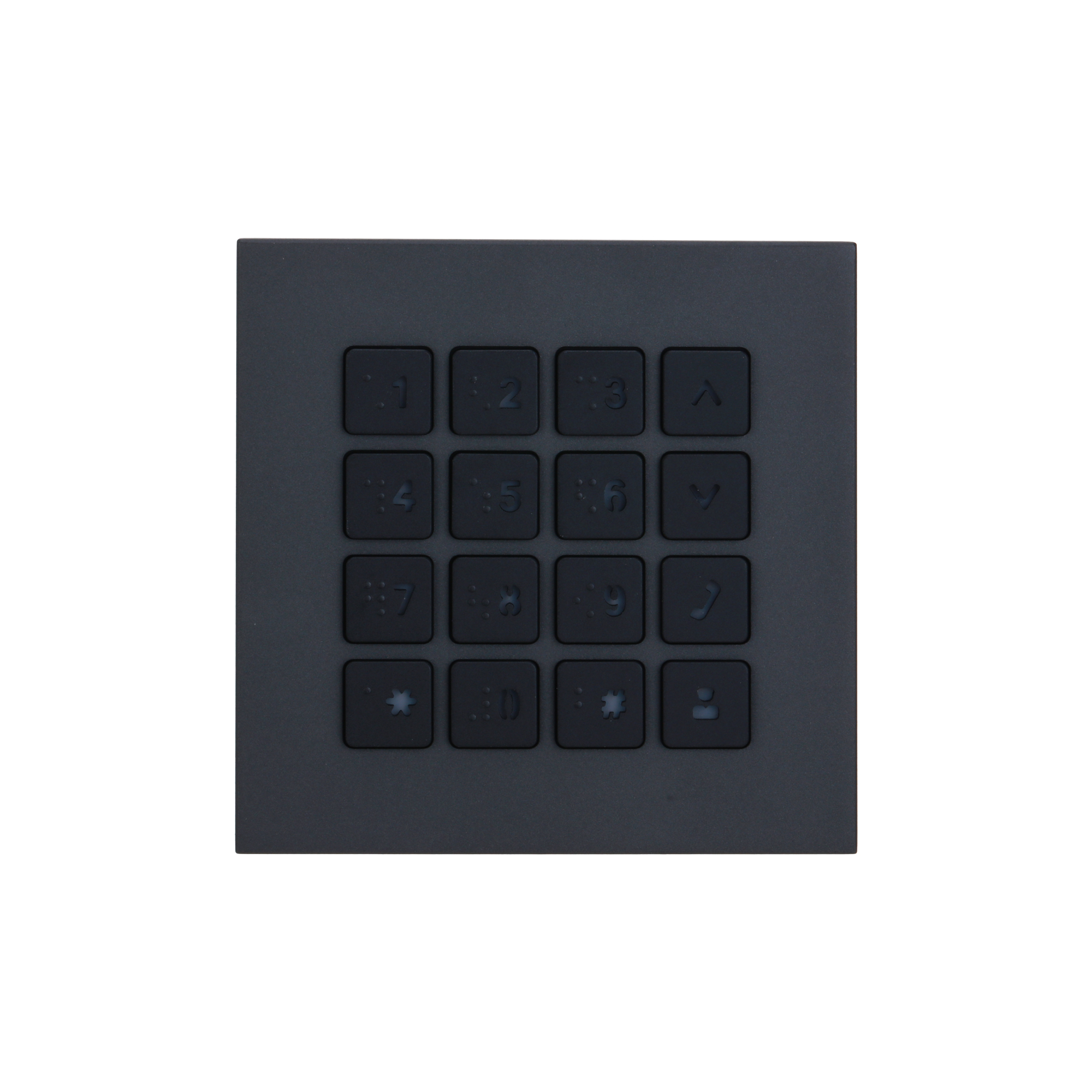

KeypadThe metal keyboard lights from behind and stays readable at a dark entrance.
Casing MaterialCarries an aluminum alloy body with a black appearance color.
Protection GradeRated IK07 and IP65; installation calls for silicone sealant.
Power supplyRuns on 5 VDC; takes power from the modules in the chain and passes it on.
InstallationAccepts flush and surface mounting; the body measures 100 x 100 x 31 mm.
