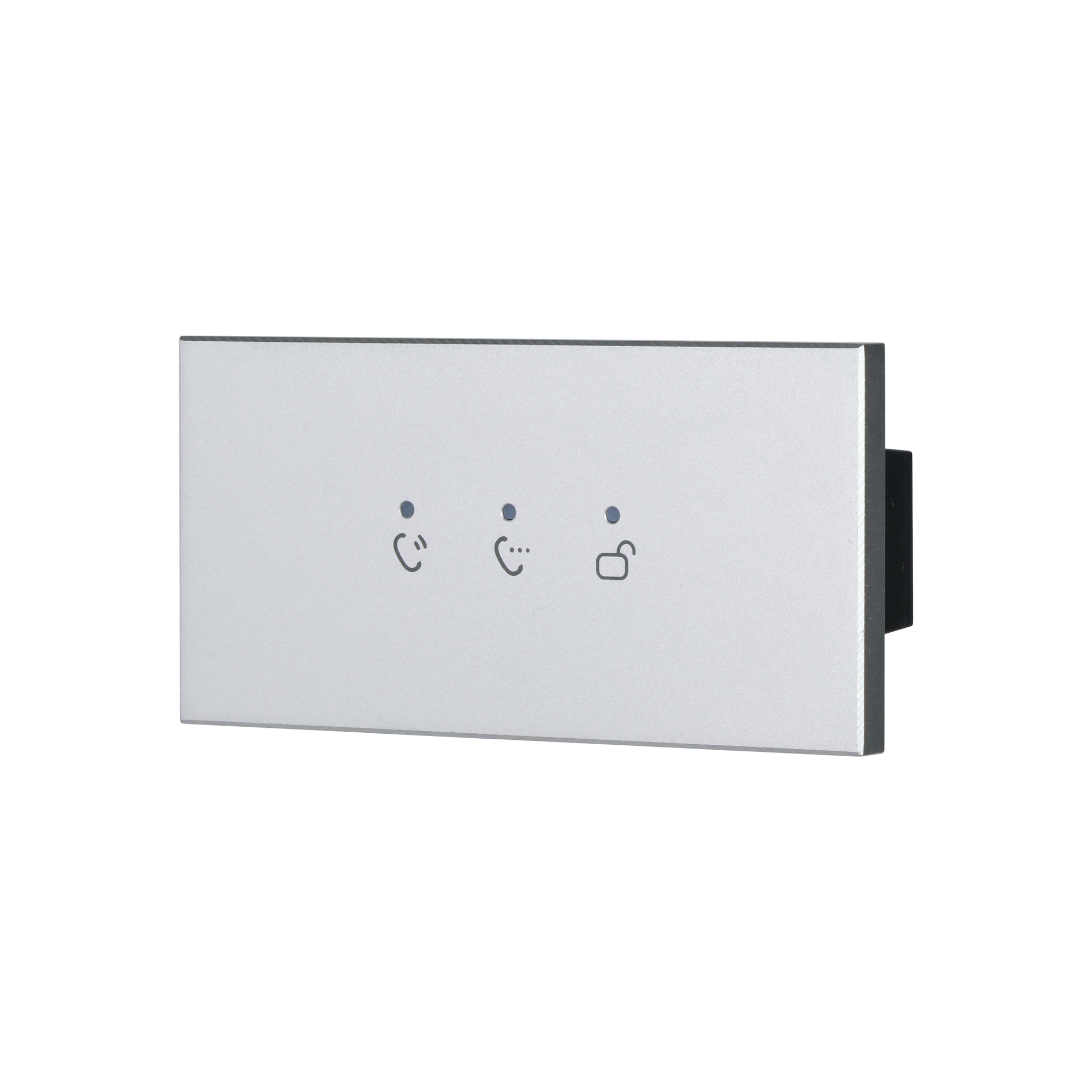

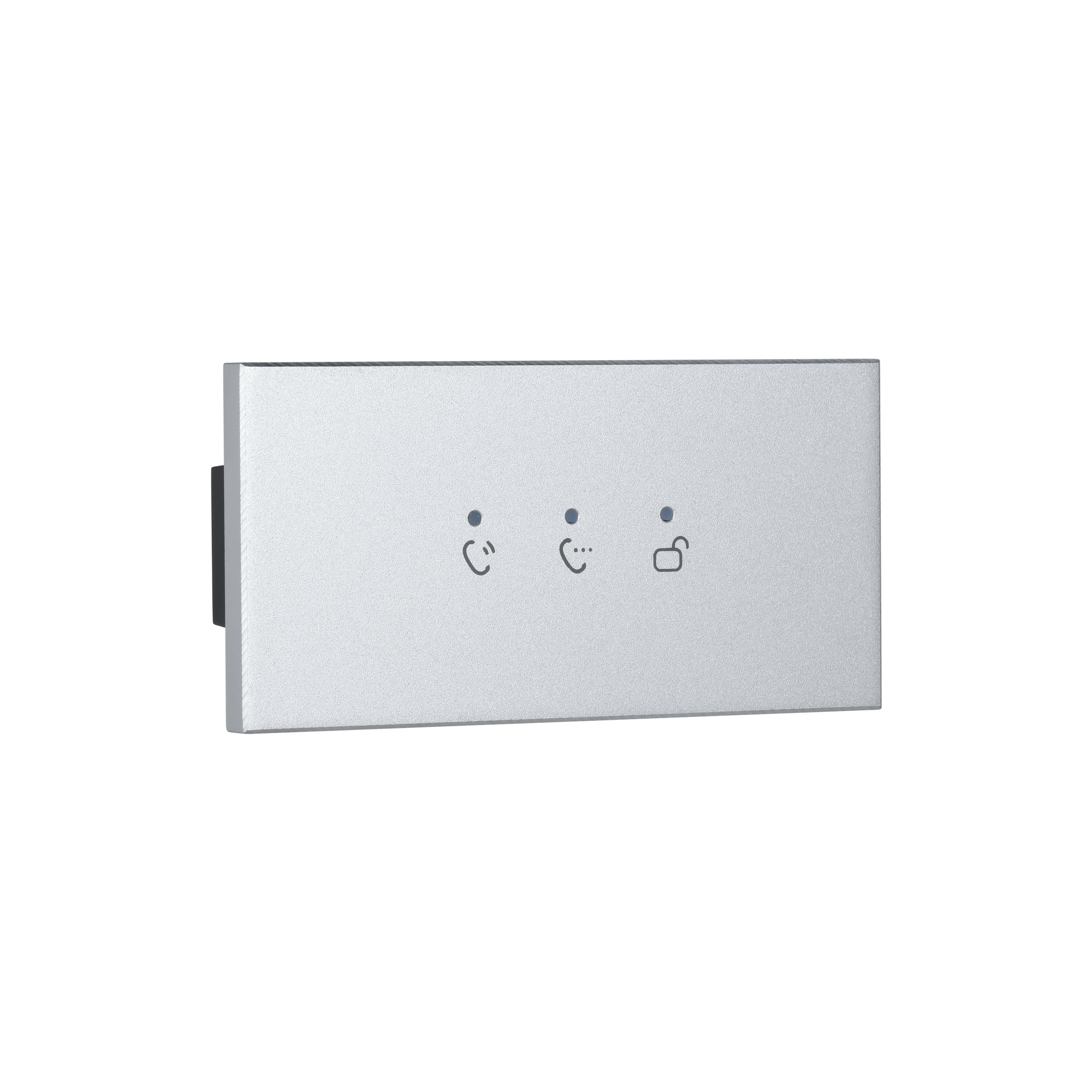

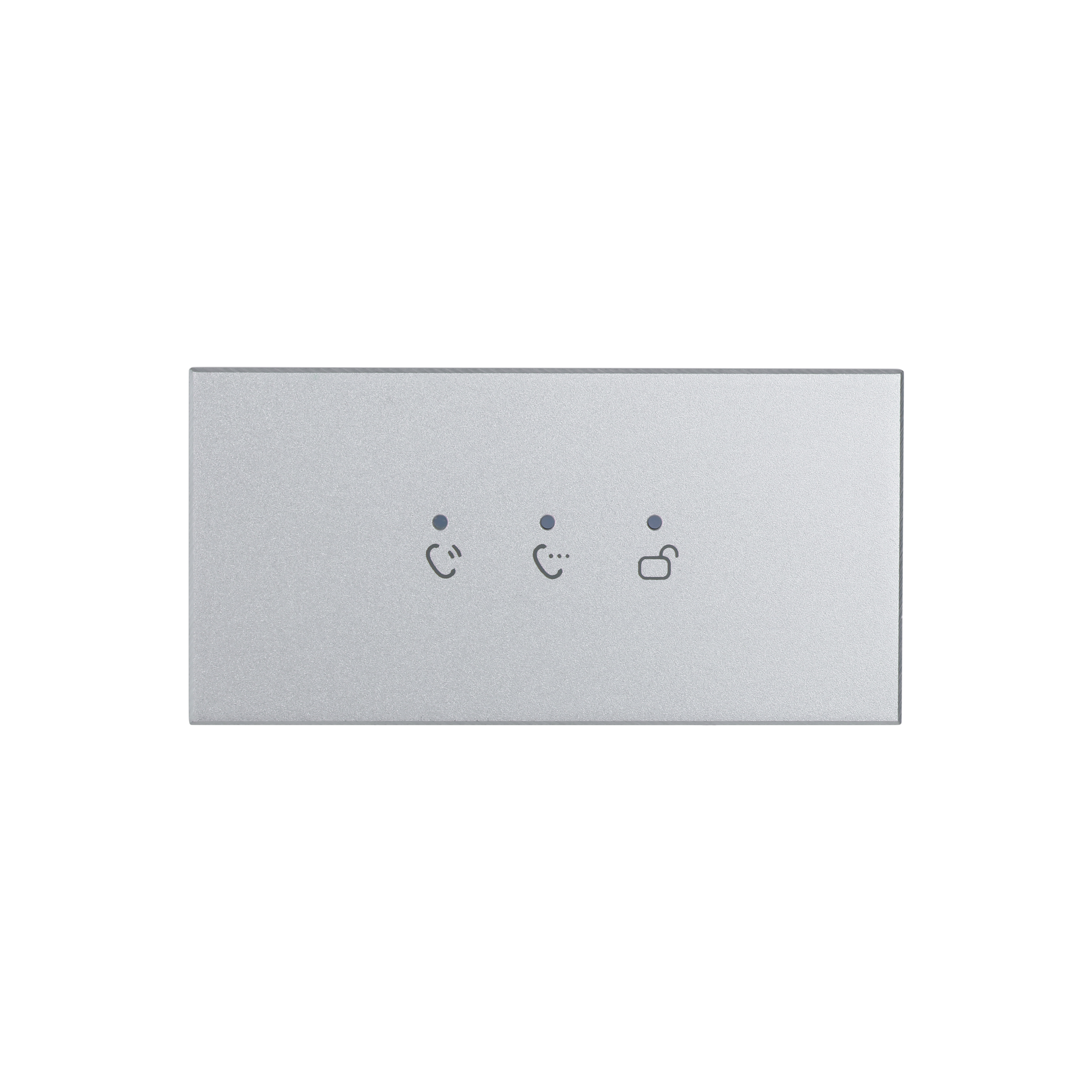

The status light module of the VTO4103F series modular door stations. Its aluminum alloy body withstands the weather at an outdoor entrance, draws power from the other modules in the chain and passes it on to them.
Status lightForms the status indicator of the VTO4103F series modular door station.
Casing MaterialCarries an aluminum alloy body with a silver appearance color.
Protection GradeRated IP65 and IK07; installation calls for silicone sealant.

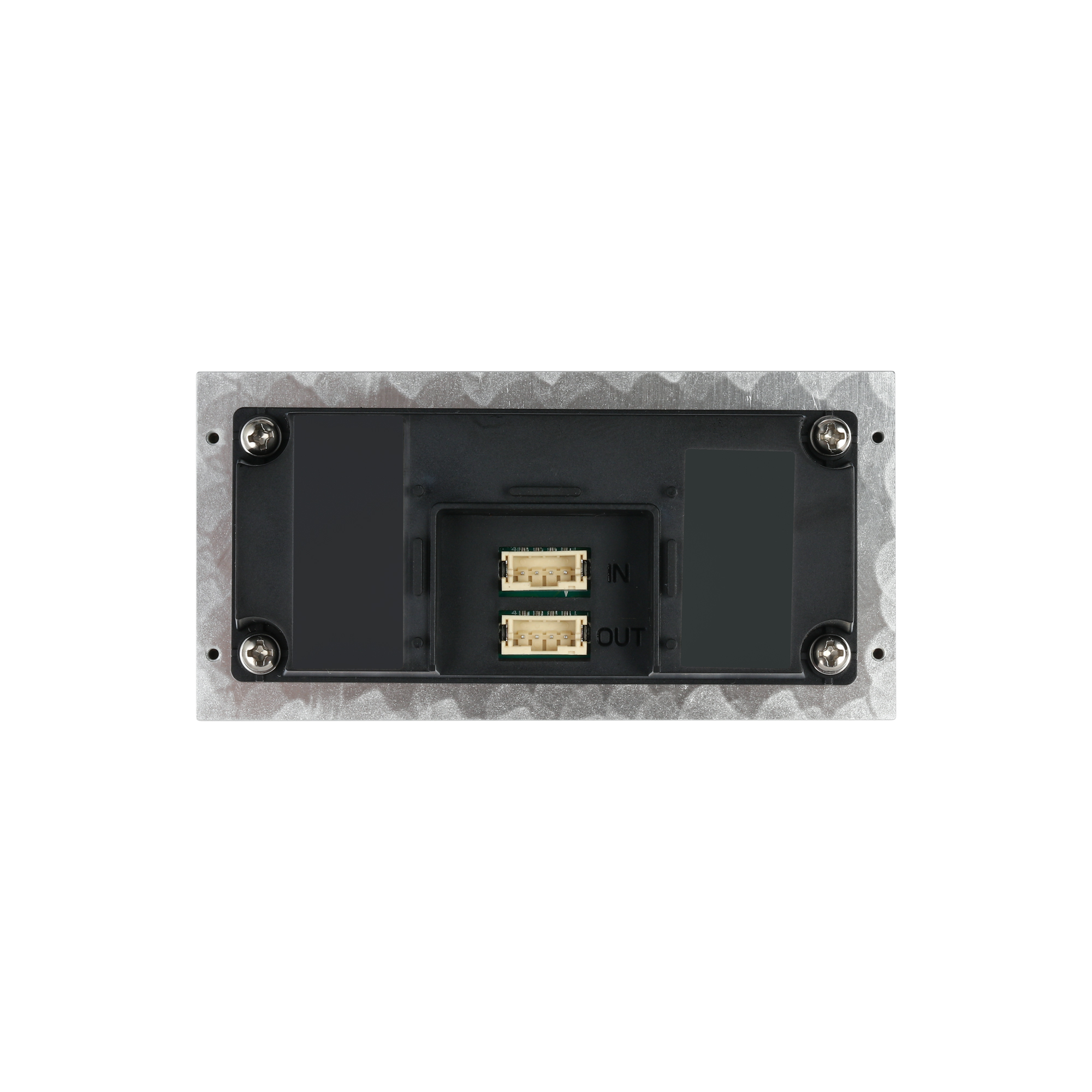

Power supplyRuns on 5 V DC; takes power from the modules in the chain and passes it on.
InstallationAccepts flush and surface mounting.
Operating conditionsWorks between -30 °C and +60 °C at 10% - 90% non-condensing relative humidity.
