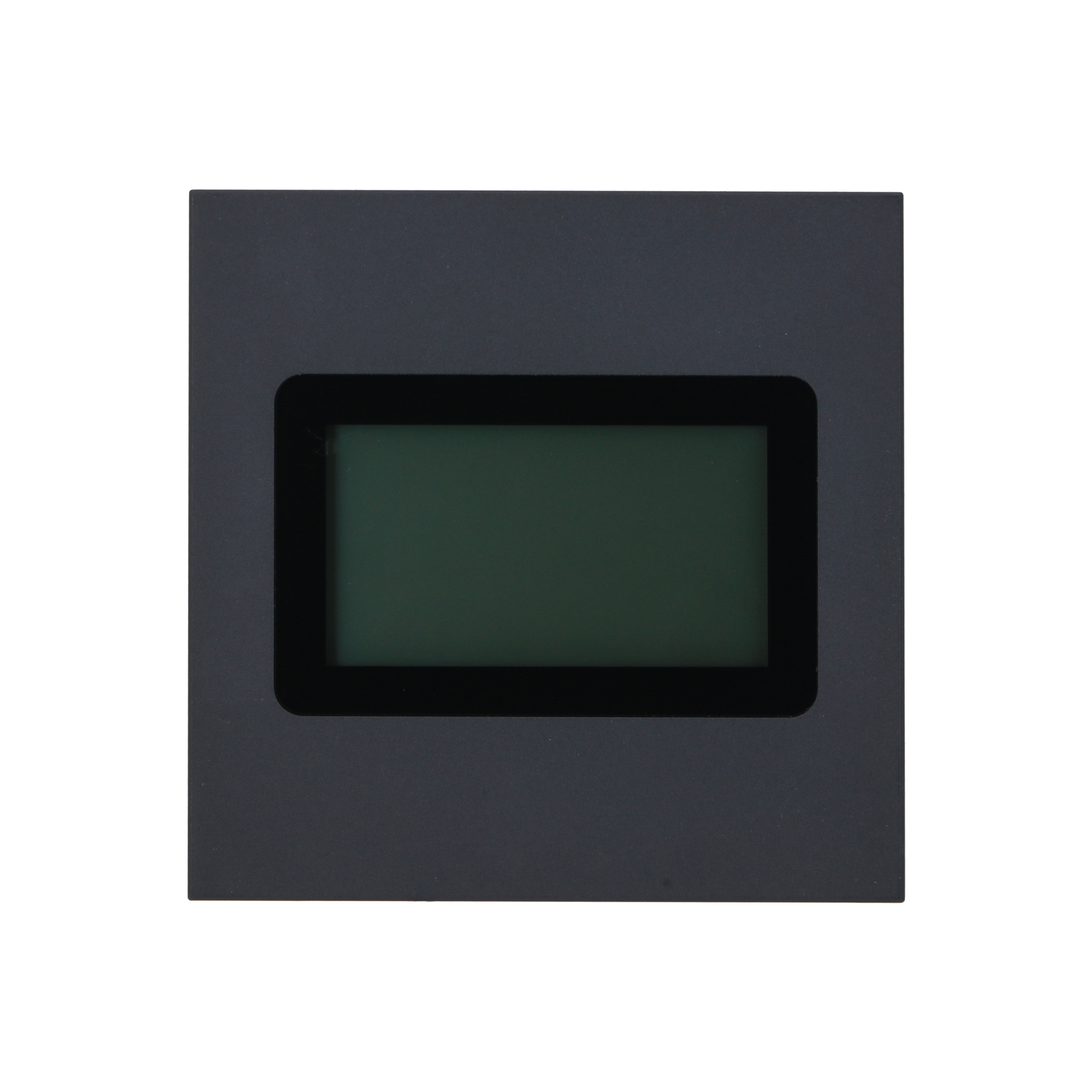

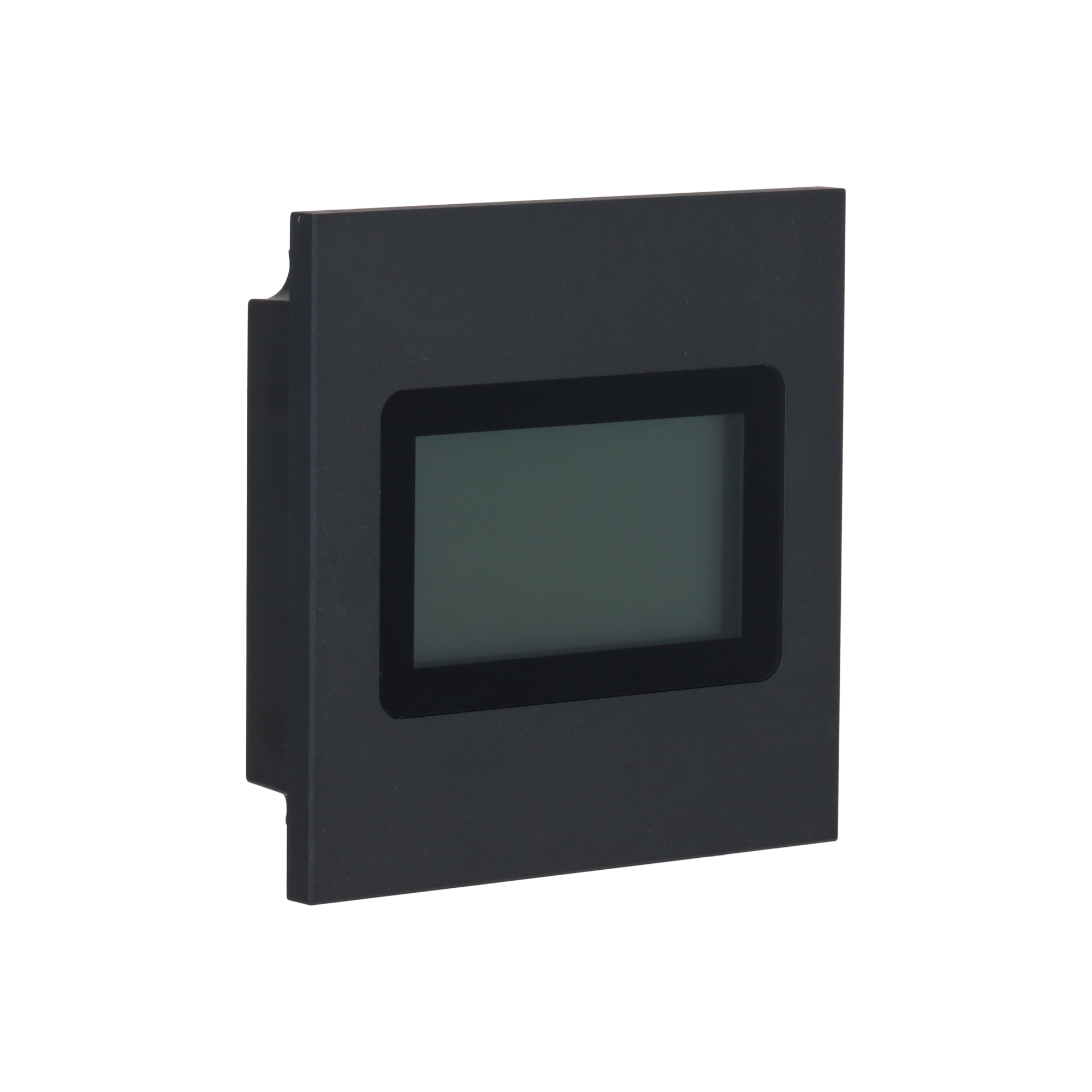

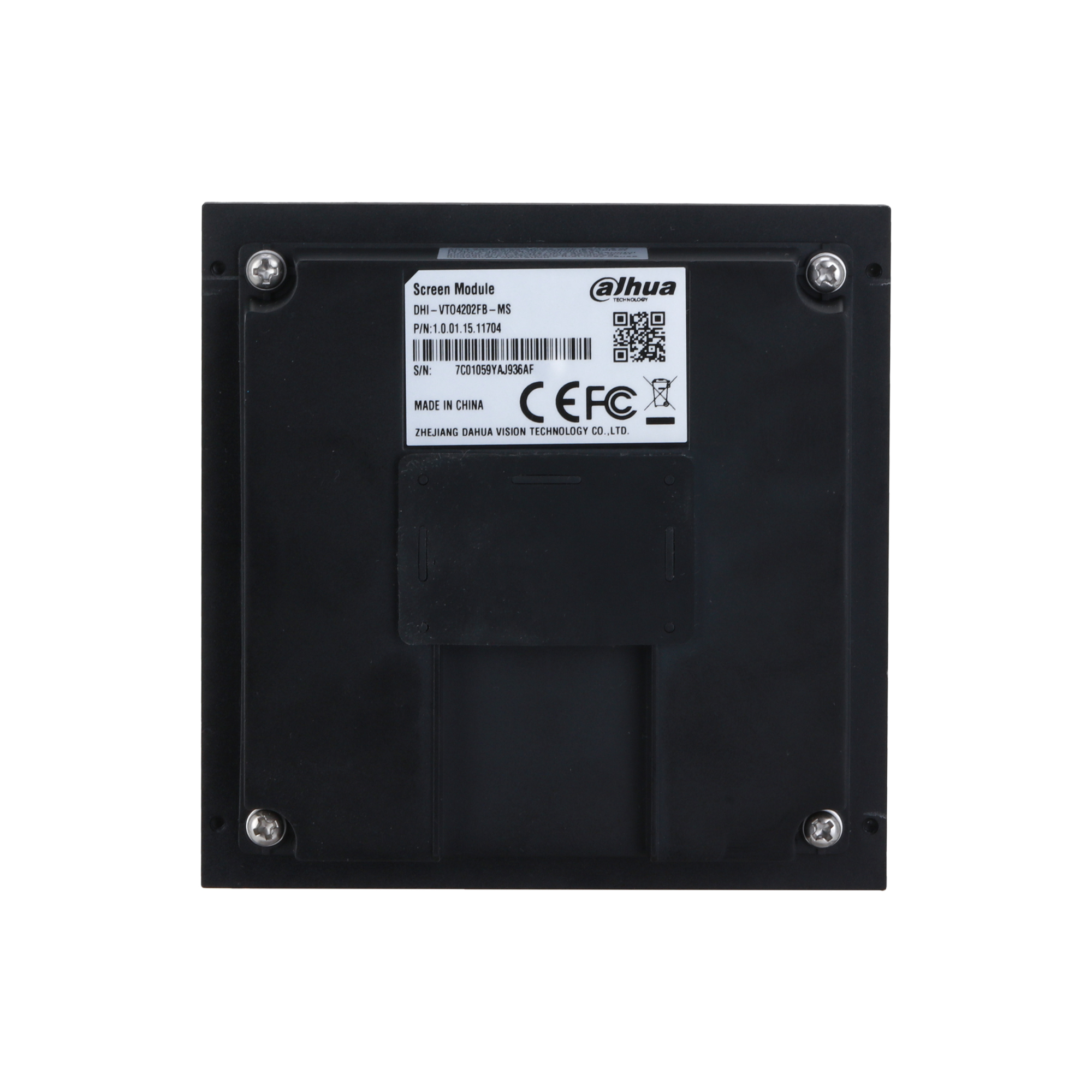

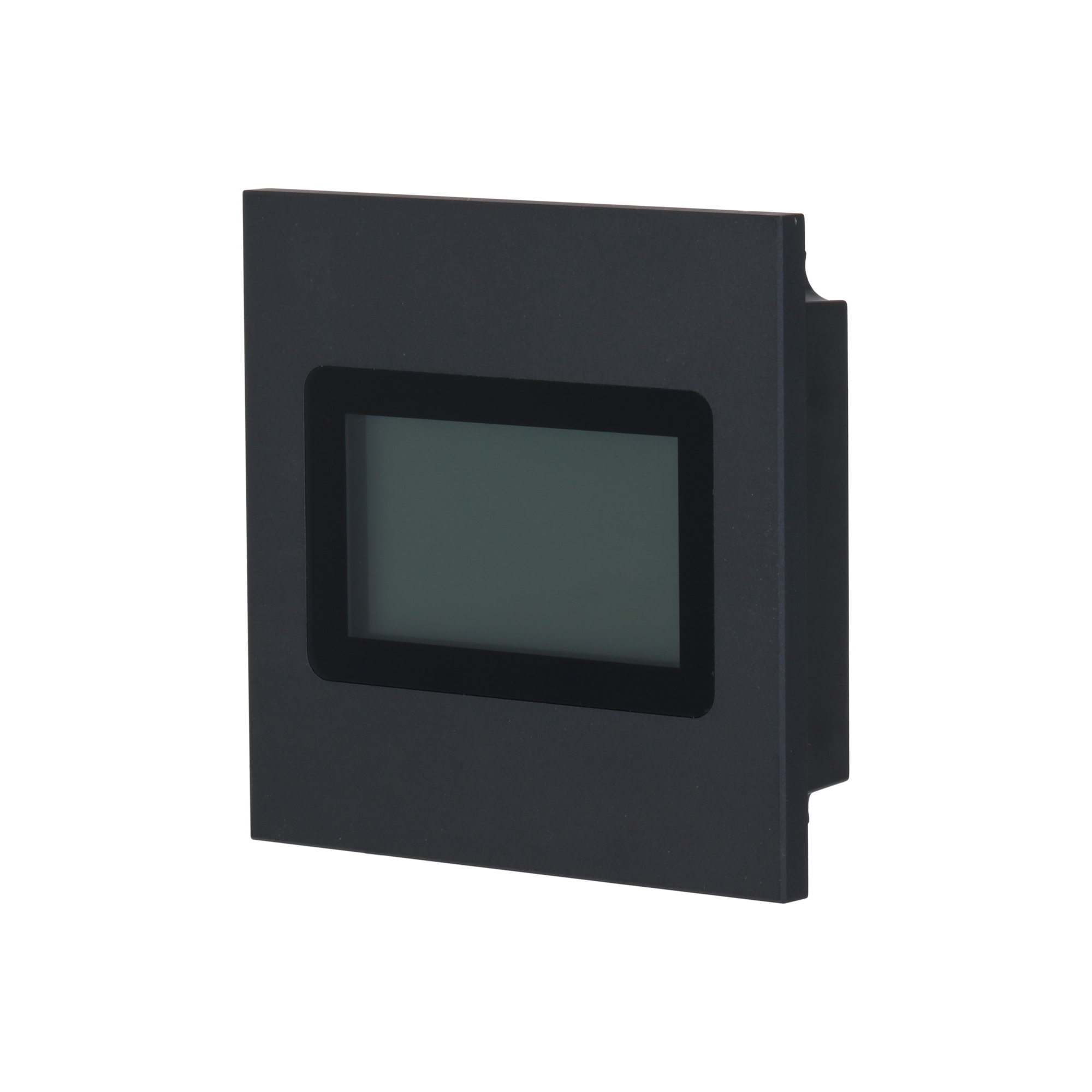

The display module of modular door stations. Its aluminum alloy body withstands the weather at an outdoor entrance, draws power from the other modules in the chain and passes it on to them.
Display moduleForms the display unit of the modular outdoor station.
Casing MaterialCarries an aluminum alloy body with a black appearance color.
Protection GradeRated IK07 and IP65; installation calls for a silicone seal.
Power supplyRuns on 5 VDC, draws 2 W or less and feeds the other modules in the chain.
InstallationAccepts flush and surface mounting; the body measures 100 mm x 100 mm x 28.50 mm.
Operating conditionsWorks between -30 °C and +60 °C at 10% - 90% relative humidity.
