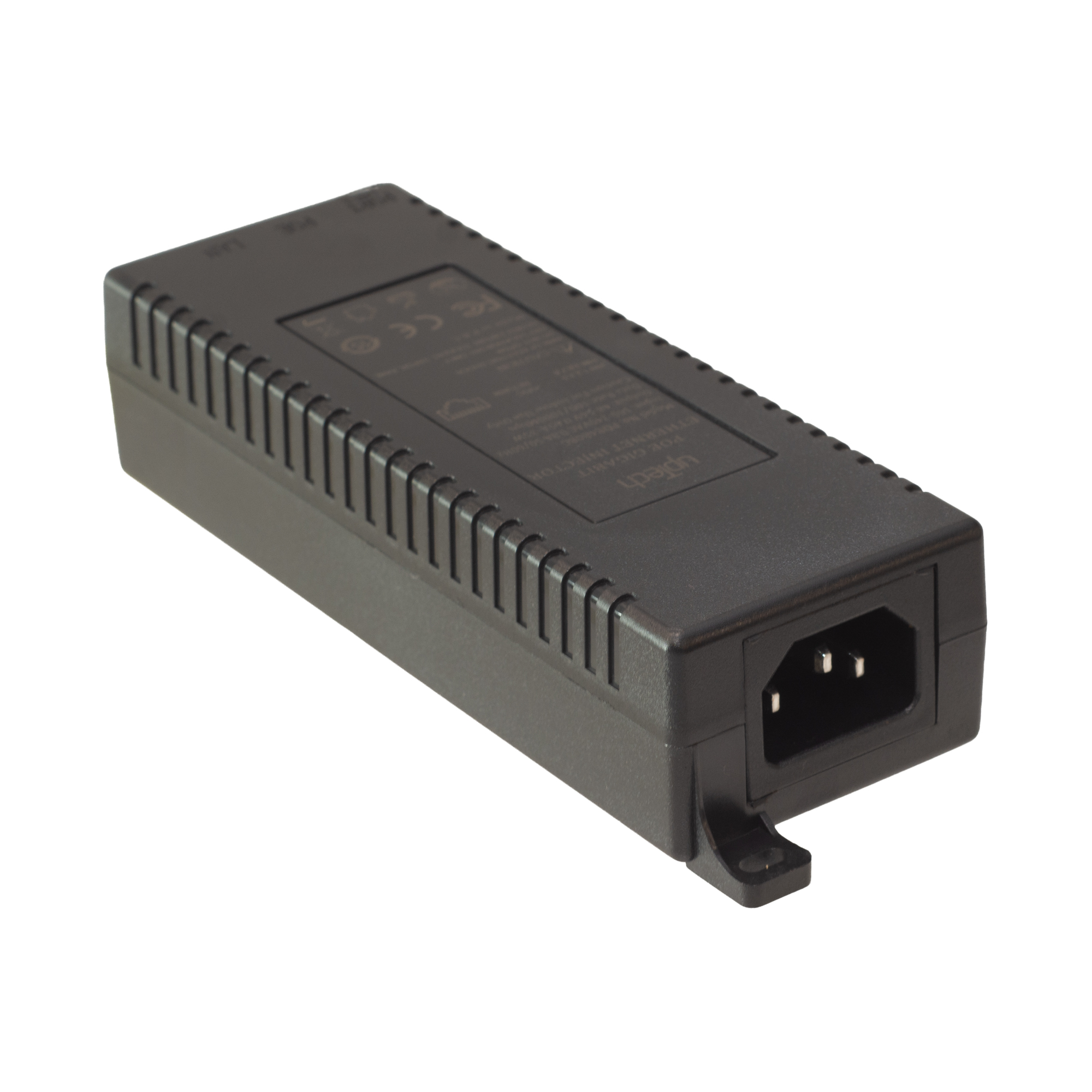

It powers IEEE802.3af endpoints directly. IP phones, IP cameras and wireless access points run without a separate adapter. The single port combines data and power on the same RJ-45 link.
PoE standardPowers IEEE802.3af endpoints directly.
Power outputDelivers 48-52 VDC output at a 24 W rated power, with ±5% voltage tolerance.
Pin layout+VDC runs on pins 4 and 5, -VDC on pins 7 and 8, and data on pins 1, 2, 3 and 6.
Cable supportAccepts EIA/TIA-568 100 ohm cable up to 100 m; Cat.3, 4, 5 for 10T and Cat.5 UTP/STP for 100TX.
ProtectionShort circuit and overload protection trips at 145~160% of peak value and recovers on its own once the fault clears.
Safety and EMCMeets CE / EN60950 safety and EN55022, EN55024 EMC standards, and complies with RoHS.
