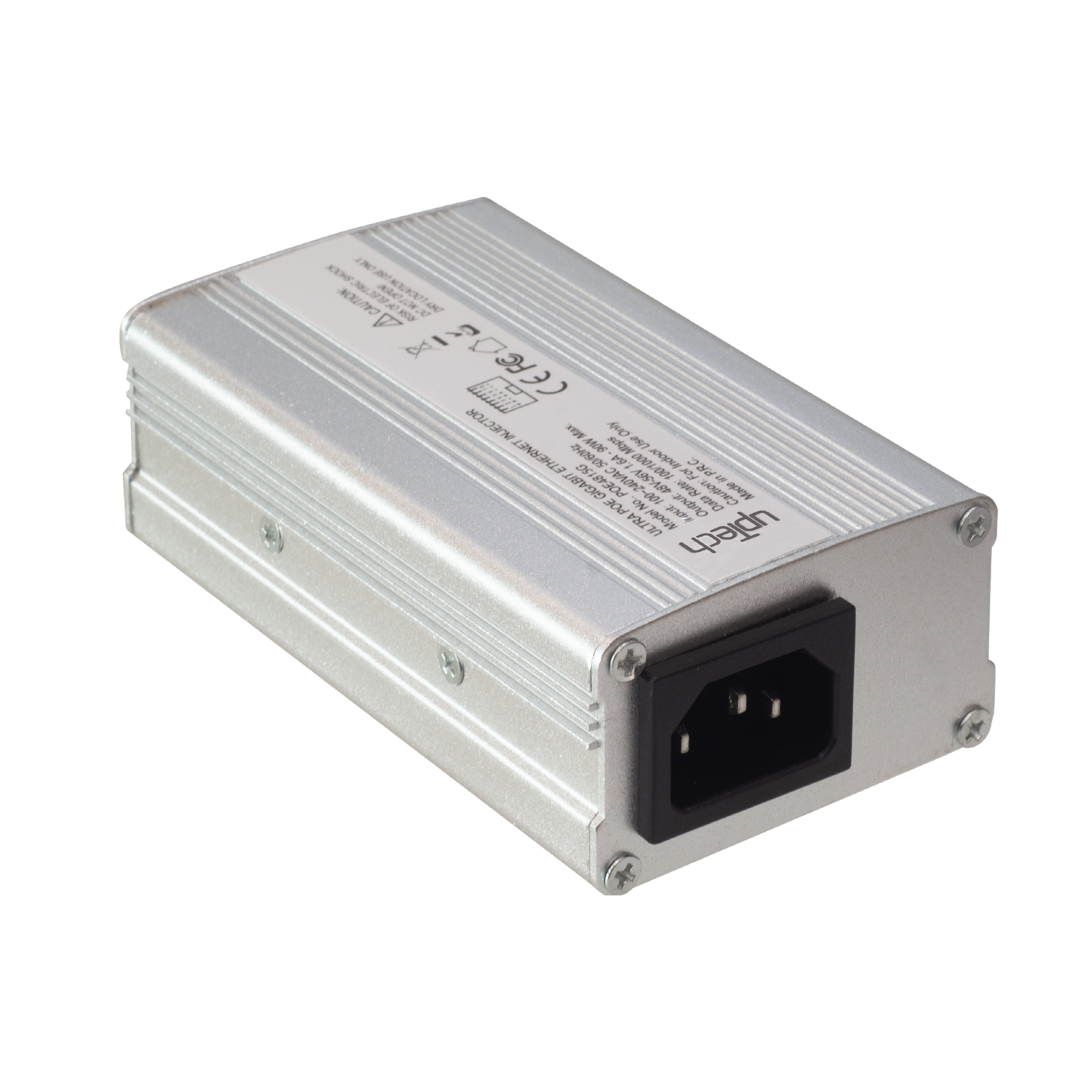

It carries data and power on the same cable to IEEE 802.3bt and 802.3at endpoints. Wireless access points, IP phones and IP security cameras run without a separate adapter. The fanless desktop housing stays compact.
Power outputDelivers 48-56 VDC output, with a Nominal Current of 1.5 A and a rated power of 72-90 W.
Mains inputRuns on 100~240 VAC ±10% at 47~63 Hz and uses an IEC320-C6 three pin inlet.
Pin layout+VDC runs on pins 1, 2, 4 and 5, -VDC on pins 3, 6, 7 and 8, and data runs full duplex.
ProtectionShort circuit, overload and over temperature protection engage; overload cuts the output at 145~160% of peak value.
Status indicatorsA green LED shows input power and an amber LED shows active output, while blinking reports a loading error.
Cable supportAccepts EIA/TIA-568 100 ohm cable up to 100 m, and 4 pair Cat.5 UTP/STP for 1000T.
