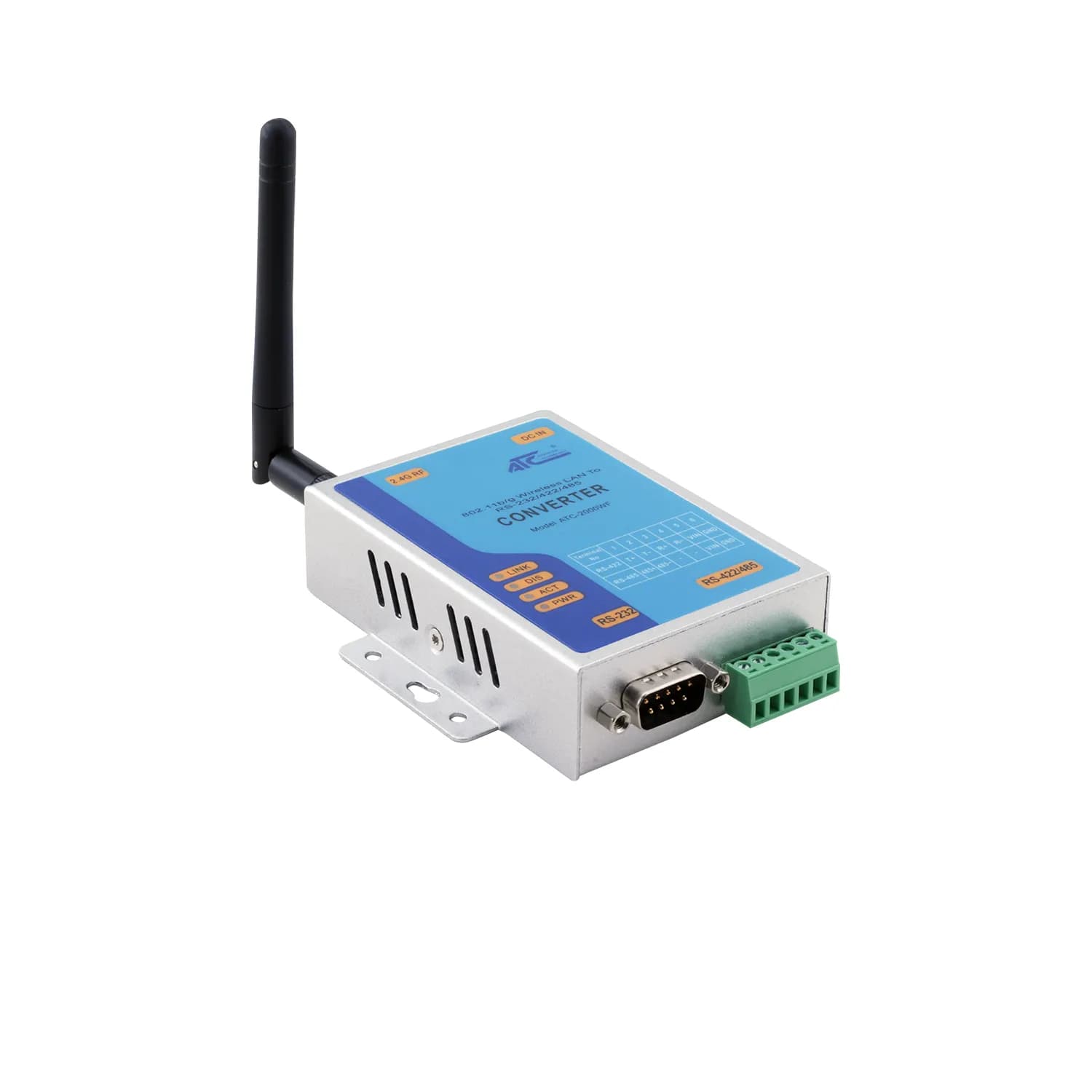

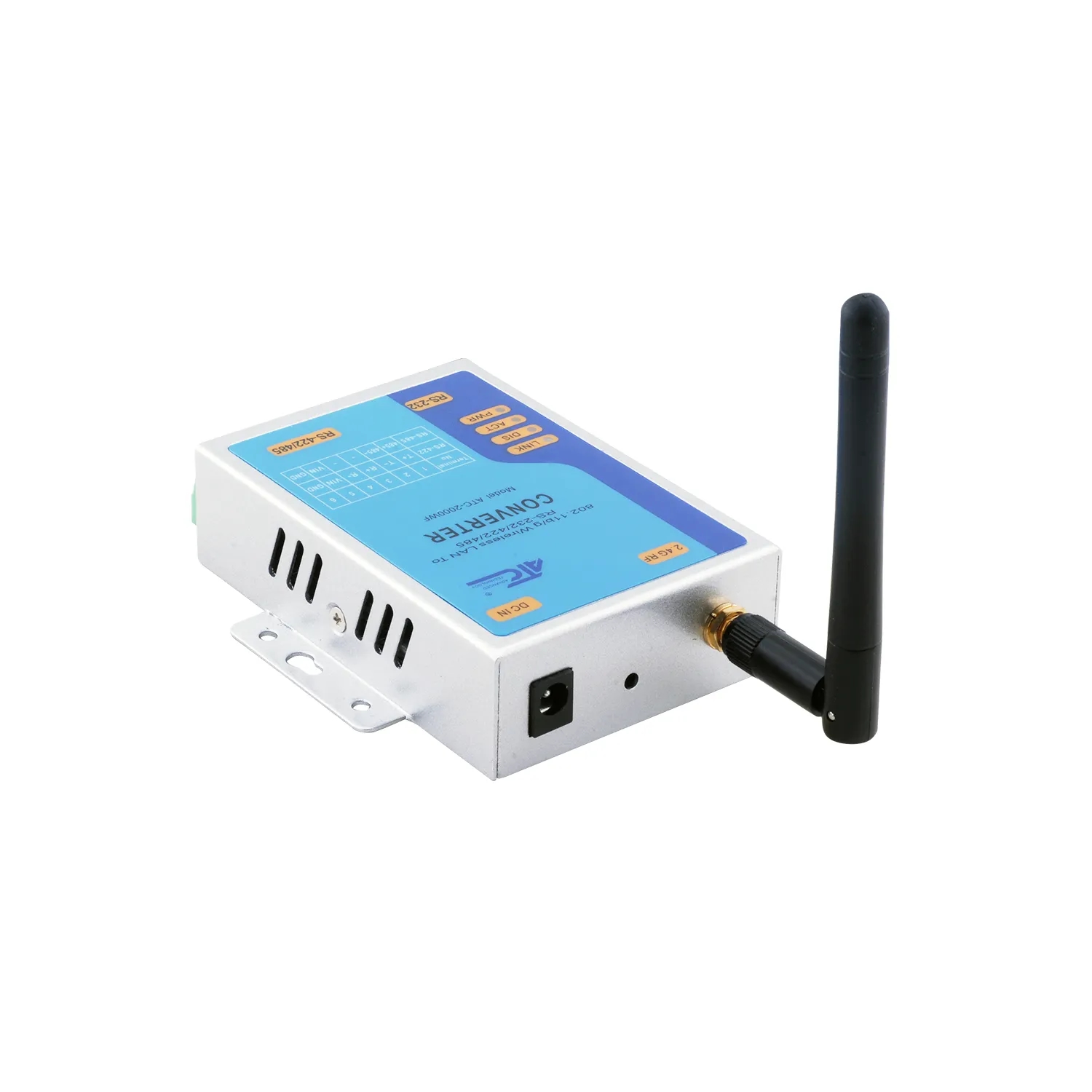

Connects a serial device to the 802.11b/g wireless network

A standalone wireless server that gathers RS-232, RS-422 and RS-485 interfaces into one body. The 2.4 GHz radio, processor, TCP/IP stack, real-time clock and analog sensor interfaces all ship inside the module. It mounts on a DIN rail and fits mobile jobs such as asset tracking and GPS monitoring.

RS-232/422/485Interface

2402 ~ 2480 MHzOperating Frequency

6 – 54 MbpsTransmission Speed

+18 dBmTransmission Power

9 ~ 24 VDCPower Supply

Technical detail

Wireless linkIt runs on 802.11b wireless LAN and stays compatible with 802.11g. Over-air rate reaches 1 – 11 Mbps for 802.11b and 6 – 54 Mbps for 802.11g.

Serial interfaceThe three-in-one serial port works as RS-232, RS-422 or RS-485 and climbs to 57.6 kbps. The RS-232 end is a DB-9 male, the RS-485/422 end a 6-pin terminal block.

RadioDSSS modulation covers channels 1-14 with 5 MHz spacing. Receiver sensitivity is -85 dBm, output level +18 dBm, and the UFL connector takes at most 10 dBm RF input.

Network and securityIt works in TCP/IP, UDP/IP, HTTP, ARP and DHCP modes. WEP encryption uses 64-bit and 128-bit keys, while password protection and IP filtering narrow access. Ad-Hoc, Infrastructure and Pseudo IBSS modes are supported.

IndicatorsLINK, DIS, ACT and PWR lights report WLAN status, data flow and power. A virtual COM port setup runs on the Windows side.

Housing and environmentDIN-rail mounting, 1 mm iron enclosure, 0.5 kg weight and 100 mm x 86 mm x 26 mm dimensions. It operates from -40°C to 70°C.

Usage areasAsset tracking · GPS monitoring · Battery-powered sensor applications · Industrial serial device connectivity

Serial Interface

Interface Type

RS-232/485/422 3-in-1 (optional)

Connector — RS-232

DB-9 male

Connector — RS-485/422

6-pin terminal block

Radio Specifications

Frequency

2402 ~ 2480 MHz

Modulation

DSSS (CCK-11, CCK-5.5, DQPSK-2, DBPSK-1)

Channel Spacing

5 MHz

Channels

1-14

Transmission Rate (over air)

1 – 11 Mbps for 802.11b / 6 – 54 Mbps for 802.11g

Receiver Sensitivity

-85 dBm typ.

Output Level (Class 1)

+18 dBm

Maximum RF Input (UFL Connector)

10 dBm

LED Indicators — LINK

WLAN status

LED Indicators — DIS

WLAN status

LED Indicators — ACT

Flashes when transferring data from WLAN to serial or serial to WLAN.

LED Indicators — PWR

Power indicator

Power Supply

9~24 VDC

Physical Characteristics

Installation

DIN-rail mounting

Housing

Iron (1 mm)

Weight

0.5 Kg

Dimensions

100 × 86 × 26 mm (3.94 × 3.39 × 1.02 in)

Environmental Limits

Operating Temperature

-40 ~ 70°C

Storage Temperature

-40 ~ 85°C

Ambient Relative Humidity

5% - 95% (non-condensing)

Standards and Certifications

RoHS, CE, FCC
