Combines a thermal and a visible channel in one housing and measures temperature in explosive atmospheres.

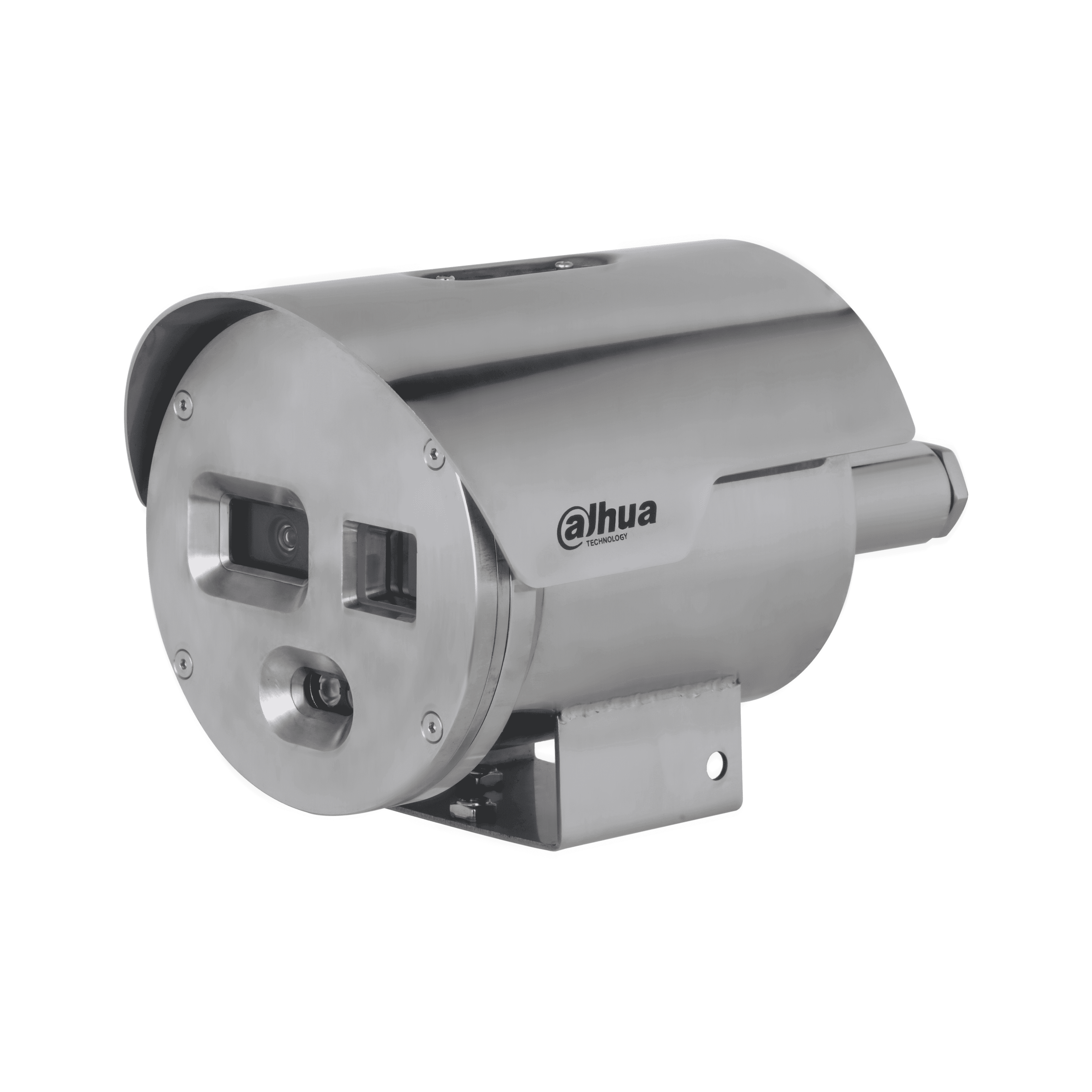

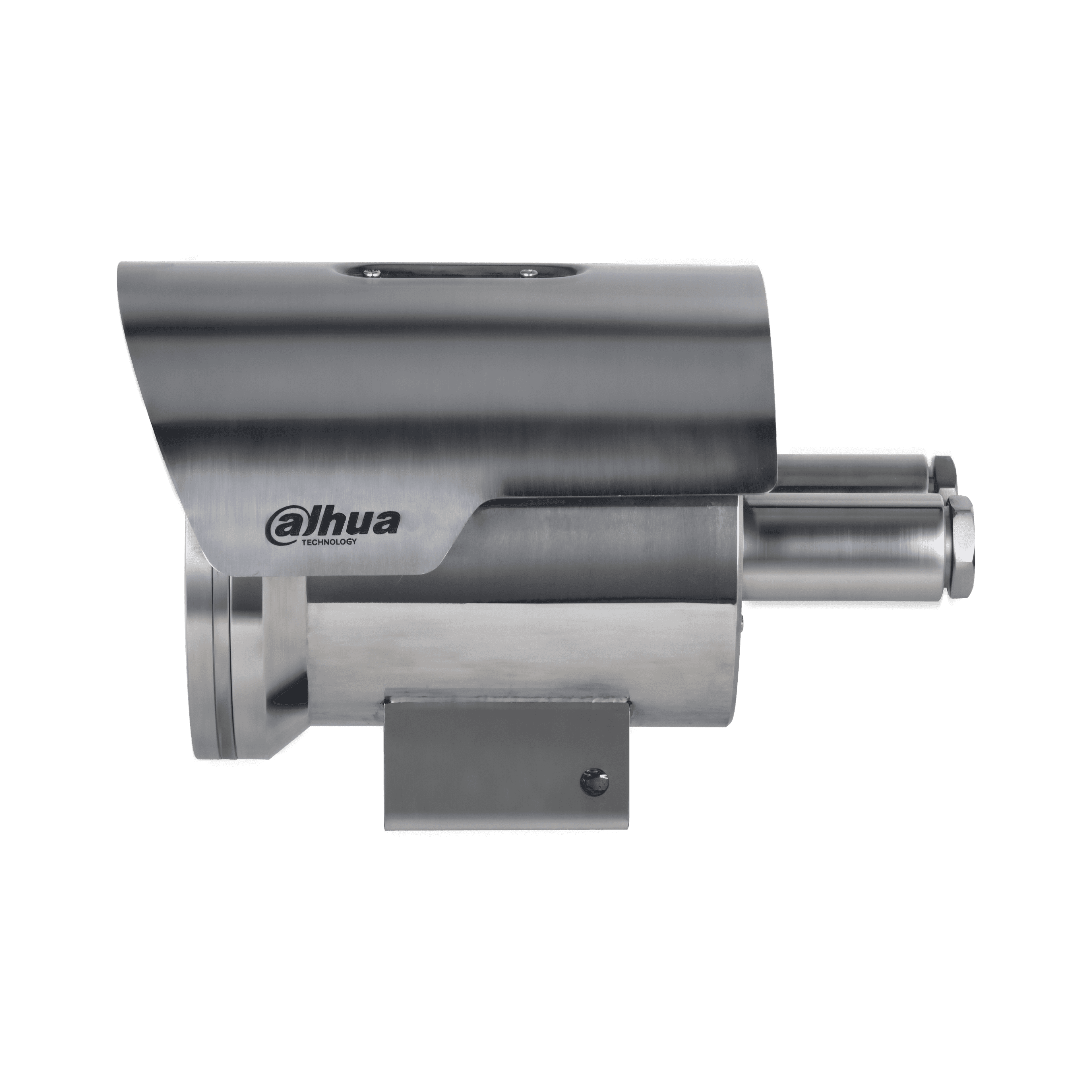

This hybrid bullet camera carries a 4 MP visible camera alongside a 400 x 300 thermal detector. Its ATEX and IECEx certified housing works outdoors in production areas that contain gas and dust.

400 x 300Thermal resolution

4 MPVisible camera

18Color palettes

±2 °CMeasurement accuracy

IP68Protection Grade

12 VDC / PoEPower supply

Key features

400 x 300thermal pixels

Vanadium oxide detector

A 17 µm pixel pitch and ≤40 mK sensitivity separate heat differences in the scene.

4MP

Visible channel

A 2688 x 1520 CMOS delivers a color image next to the thermal one.

30m

Illuminator range

Makes the scene visible in darkness, switching on and off automatically or by hand.

18color palettes

Display tuned to the scene

Switches between palettes such as white hot, iron red and fusion.

IP68protection

Built for the outdoors

Operates from -40 °C to +60 °C with 6 kV surge protection.

ATEXIECEx

Explosive atmosphere approval

Certified as II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80 °C Db.

IN THE FIELD

Fusion and PIPOverlays the thermal and visible images or shows them side by side in a small window.

Perimeter protectionSeparates tripwire and intrusion rules into human and vehicle classes.

Sound and light alarmGives a local audio and white light prompt the moment an alarm fires.

Only authorized personnel install this camera in explosive atmospheres, under ATEX and IECEx rules.

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 µm

Spectral Range

8 µm – 14 µm

Sensitivity (NETD)

≤40 mK (@f/1.0)

Focal Length

9 mm; 13 mm; 25 mm

Field of View

9 mm: H: 41°; V: 31°
13 mm: H: 30.4°; V: 22.5°
25 mm: H: 15.5°; V: 11.6°

Thermal Focus Control

Fixed-focal

Close Focus Distance

9 mm: 1.7 m
13 mm: 2.9 m
25 mm: 9 m

Detection Distance①

9 mm: Vehicle: 588 m; Human: 220 m
13 mm: Vehicle: 1,019 m; Human: 382 m
25 mm: Vehicle: 1,960 m; Human: 735 m

Recognition Distance②

9 mm: Vehicle: 147 m; Human: 56 m
13 mm: Vehicle: 255 m; Human: 98 m
25 mm: Vehicle: 490 m; Human: 189 m

Identification Distance③

9 mm: Vehicle: 73 m; Human: 28 m
13 mm: Vehicle: 127 m; Human: 49 m
25 mm: Vehicle: 245 m; Human: 94 m

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

Thermal AGC

Auto / Manual

Thermal Noise Reduction

2D NR / 3D NR

Image Flip

180°; mirror; rotation mode

Color Palettes

18 (white hot / black hot / fusion / rainbow / golden autumn / midday / iron red / amber / jade / sunset / icefire / painting / pomegranate / emerald / spring / summer / autumn / winter)

Temperature Measurement Range

Low temperature mode: –20 °C ~ +150 °C
High temperature mode: +100 °C ~ +550 °C
Auto mode

Temperature Measurement Accuracy

Max. (±2 °C, ±2%)
Operating temperature: –20 °C ~ +50 °C

Temperature Measurement Mode

Spot: 12
Line: 12
Area: 12
Supports 12 rules simultaneously

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

≥1100 TVL

Min. Illumination

Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)

Visible AGC

Auto / Manual

Visible Noise Reduction

2D NR / 3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Electronic defog

Electronic Shutter Speed

1 s – 1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Fixed

Image Flip

180°; mirror; rotation mode

Exposure Compensation

Yes

Visible Focus Control

Fixed-focal

Focal Length

4 mm; 6 mm; 8 mm

Field of View

4 mm: H: 90.1°; V: 48.2°
6 mm: H: 56°; V: 30°
8 mm: H: 41.3°; V: 23.1°

Close Focus Distance

4 mm: 1.5 m
6 mm: 3 m
8 mm: 4.4 m

Aperture

F2.0

Illuminator On/Off Control

Auto; manual

Illumination Distance

30 m

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal:
Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default); Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default)
Visible:
Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default); Sub stream: 704 × 576; 352 × 288; 704 × 576 (default)

Video Frame Rate

Thermal (50 Hz):
Main stream: 1 fps – 25 fps, 25 fps by default
Sub stream: 1 fps – 25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps – 25 fps, 25 fps by default
Sub stream: 1 fps – 25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps – 30 fps, 30 fps by default
Sub stream: 1 fps – 30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps – 30 fps, 30 fps by default
Sub stream: 1 fps – 30 fps, 15 fps by default

Audio Compression

PCM; G.711a; G.711mu; AAC

Image Encoding Format

JPEG

Function

Two-way Audio

Yes

Sound and Light Alarm

Local audio and white light alarm prompts

Network Protocol

IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI

Browser

IE; Firefox; Chrome

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Fusion Mode

Yes. Disabled by default.

PIP

Yes

Intelligence

Cold/Hot Spot Trace

Yes

Perimeter Protection

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

12 VDC ± 20%, PoE (802.3af)

Power Consumption

Basic: 5 W
Max: 10 W

ePoE

Yes

Environment

Operating Temperature

–40 °C ~ +60 °C

Operating Humidity

≤95%

Storage Temperature

–40 °C ~ +60 °C

Structure

Ingress Protection

IP68

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Product Dimensions

248 mm × 149 mm × 155.7 mm (L × W × H)

Packaging Dimensions

Package: 330 mm × 256 mm × 256 mm (L × W × H)
Protection box: 535 mm × 535 mm × 360 mm (L × W × H)

Net Weight

≤5.8 kg

Gross Weight

≤6.8 kg

Certification

Certifications

CE/FCC

Explosion-proof certification

ATEX, IECEx:
II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80 °C Db

Heat Detection Distance

Distances

Focal Length	Max. Distance
9 mm	540 m
13 mm	780 m
25 mm	1,500 m

Temperature Measurement Distance

Distances

Focal Length	Min. Distance	Max. Distance
9 mm	1 m	5 m
13 mm	2 m	10 m
25 mm	4 m	20 m
