Pans endlessly in explosive atmospheres and watches heat and image at the same time.

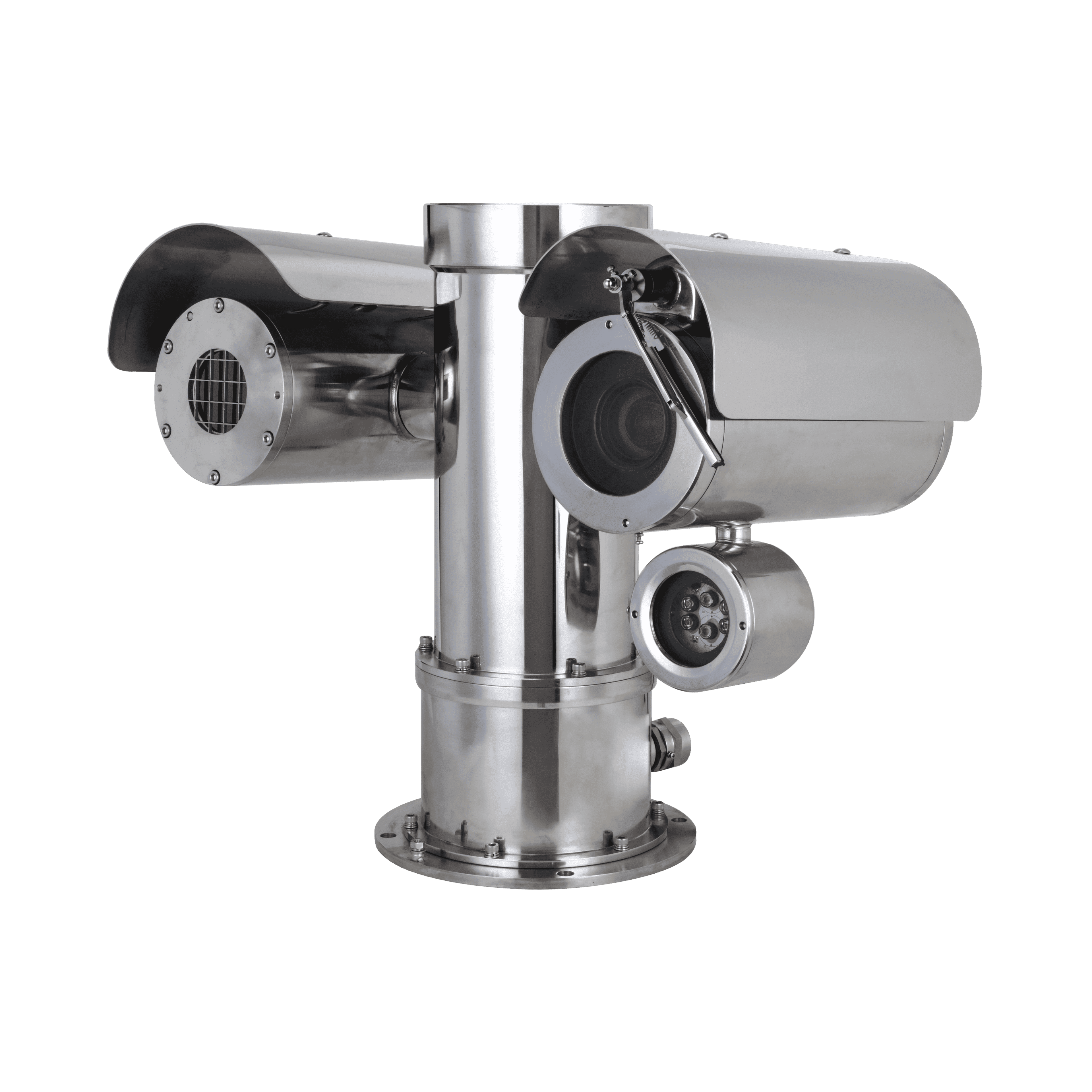

This hybrid PTZ camera carries a 4 MP visible camera alongside a 640 x 512 thermal detector. A stainless housing and ATEX certification suit production areas that contain gas and dust.

640 x 512Thermal resolution

4 MPVisible camera

18Color palettes

±2 °CMeasurement accuracy

IP68Protection Grade

100 - 240 VACPower supply

Key features

640 x 512thermal pixels

High-resolution detector

A 12 µm pixel pitch and ≤35 mK sensitivity separate heat differences on distant targets.

5.5 - 248mm

Visible channel optics

The motorized lens focuses from wide angle to the tele end.

150m

Infrared illumination

Makes the scene visible in darkness.

360°endless pan

Uninterrupted sweep

Pans without a stop and tilts from -90° to +90°.

300presets

Position memory

8 tours, 5 patterns and 5 scans run on top of the presets.

ATEXIECEx

Explosive atmosphere approval

Certified as II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80 °C Db.

IN THE FIELD

Stainless housingA SUS304 or SUS316L body protects the outer surface in corrosive environments.

Hot spot traceMarks the hottest and coldest point in the frame continuously.

Fits the existing systemONVIF and CGI support connect the camera to the management software already in use.

Only authorized personnel install this camera in explosive atmospheres, under ATEX and IECEx rules.

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Sensitivity (NETD)

≤35 mK (@f/1.0)

Focal Length

9 mm; M18 mm; 35 mm

Field of View

9 mm: H: 48.3°; V: 8.6°
M18 mm: H: 24°; V: 19.2°
35 mm: H: 12.5°; V: 10.0°

Thermal Focus Control

9 mm: Athermalized
M18 mm: Auto; semi-auto; manual
35 mm: Athermalized

Close Focus Distance

9 mm: 2.2 m (7.22 ft)
M18 mm: 0.5 m (1.64 ft)
35 mm: 51 m (167.32 ft)

Detection Distance①

9 mm: Vehicle: 1,154 m (3,786.09 ft); Human: 375 m (1,230.31 ft)
M18 mm: Vehicle: 2,308 m (7,572.18 ft); Human: 750 m (2,460.63 ft)
35 mm: Vehicle: 4,487 m (14,721.13 ft); Human: 1,458 m (4,783.46 ft)

Recognition Distance②

9 mm: Vehicle: 283 m (928.48 ft); Human: 96 m (314.96 ft)
M18 mm: Vehicle: 566 m (1,856.96 ft); Human: 193 m (633.2 ft)
35 mm: Vehicle: 1,101 m (3,612.2 ft); Human: 375 m (1,230.31 ft)

Identification Distance③

9 mm: Vehicle: 143 m (469.16 ft); Human: 48 m (157.48 ft)
M18 mm: Vehicle: 286 m (938.32 ft); Human: 96 m (314.96 ft)
35 mm: Vehicle: 556 m (1,824.15 ft); Human: 188 m (616.8 ft)

Digital Detail Enhancement (DDE)

Yes

Thermal Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

24 levels

Thermal AGC

Auto; manual

Thermal Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/autumn/winter)

Temperature Measurement Range

Low temperature mode:
–20 °C (–4 °F) to +150 °C (+302 °F)
High temperature mode:
+100 °C (+212 °F) to +550 °C (+1022 °F)
Auto mode

Temperature Measurement Accuracy

Max. (±2 °C, ±2%)
Operating temperature:
–20 °C (–4 °F) to +50 °C (+122 °F)

Temperature Measurement Mode

Spot: 12
Line: 12
Area: 12
Support 12 rules simultaneously

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 850 TVL

Min. Illumination

Color: 0.001 lux@F1.4
Black & white: 0.0001 lux@F1.4
0 lux (IR on)

Visible AGC

Auto; manual

Visible Noise Reduction

2D NR; 3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Optical defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Auto

Image Flip

180°

Exposure Compensation

Yes

Visible Focus Control

Auto; semi-auto; manual

Focal Length

5.5 mm–248 mm

Field of View

H: 61.8°–2.2°
V: 36.3°–1.3°

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Illuminator On/Off Control

Auto; manual

Illumination Distance

150 m (429 ft, IR)

Audio and Video

Video Compression

H.264 (High, Main); M-JPEG; H.265

Resolution

Thermal:
Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320 × 256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default)
Sub stream: 704 × 576; 352 × 288; 704 × 576 (default)

Video Frame Rate

Thermal:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visible:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –90° to +90°

Manual Control Speed

Pan: 0.1°/s to 30°/s
Tilt: 0.1°/s to 20°/s

Preset Speed

Pan: 0.1°/s to 30°/s
Tilt: 0.1°/s to 20°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Privacy Masking

4 blocks

Idle Motion

Preset; auto pattern; auto tour; pan; progressive scan

Function

Two-way Audio

Yes

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 (total bandwidth: 64 MB)

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes (Intelligence automatically turns off when PIP is on)

Intelligence

Cold/Hot Spot Trace

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

100–240 VAC

Power Consumption

<120 W

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Physical Characteristics

Protection

IP68

Reliability

Surge protection: 6 kV
Air discharge of 15 kV
Contact discharge of 8 kV

Structure

Product Dimensions

554 mm × 350 mm × 489 mm (21.8" × 13.8" × 19.3") (L × W × H)

Packaging Dimensions

700 mm × 700 mm × 615 mm (27.6" × 27.6" × 24.2") (L × W × H)

Net Weight

≤47 kg (103.62 lb)

Gross Weight

≤75 kg (165.35 lb)

Lens

Included

Casing

SUS304/SUS316L (customized)

Certification

Certifications

Explosion-proof certification

ATEX, IECEx:
II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db

Heat Detection Distance

Focal Length / Max. Distance

Focal Length	Max. Distance
9 mm	780 m (2,559.06 ft)
M18 mm	1,500 m (4,921.3 ft)
35 mm	3,000 m (9,842.5 ft)

Temperature Measurement Distance

Focal Length / Min. / Max. Distance

Focal Length	Min. Distance	Max. Distance
9 mm	1 m (3.28 ft)	5 m (16.4 ft)
M18 mm	3 m (9.84 ft)	15 m (49.21 ft)
35 mm	6 m (19.69 ft)	30 m (98.43 ft)

Pans endlessly in explosive atmospheres and watches heat and image at the same time.

This hybrid PTZ camera carries a 4 MP visible camera alongside a 640 x 512 thermal detector. A stainless housing and ATEX certification suit production areas that contain gas and dust.

640 x 512Thermal resolution

4 MPVisible camera

18Color palettes

±2 °CMeasurement accuracy

IP68Protection Grade

100 - 240 VACPower supply

Key features

640 x 512thermal pixels

High-resolution detector

A 12 µm pixel pitch and ≤35 mK sensitivity separate heat differences on distant targets.

5.5 - 248mm

Visible channel optics

The motorized lens focuses from wide angle to the tele end.

150m

Infrared illumination

Makes the scene visible in darkness.

360°endless pan

Uninterrupted sweep

Pans without a stop and tilts from -90° to +90°.

300presets

Position memory

8 tours, 5 patterns and 5 scans run on top of the presets.

ATEXIECEx

Explosive atmosphere approval

Certified as II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80 °C Db.

IN THE FIELD

Stainless housingA SUS304 or SUS316L body protects the outer surface in corrosive environments.

Hot spot traceMarks the hottest and coldest point in the frame continuously.

Fits the existing systemONVIF and CGI support connect the camera to the management software already in use.

Only authorized personnel install this camera in explosive atmospheres, under ATEX and IECEx rules.

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Sensitivity (NETD)

≤35 mK (@f/1.0)

Focal Length

9 mm; M18 mm; 35 mm

Field of View

9 mm: H: 48.3°; V: 8.6°
M18 mm: H: 24°; V: 19.2°
35 mm: H: 12.5°; V: 10.0°

Thermal Focus Control

9 mm: Athermalized
M18 mm: Auto; semi-auto; manual
35 mm: Athermalized

Close Focus Distance

9 mm: 2.2 m (7.22 ft)
M18 mm: 0.5 m (1.64 ft)
35 mm: 51 m (167.32 ft)

Detection Distance①

Recognition Distance②

9 mm: Vehicle: 283 m (928.48 ft); Human: 96 m (314.96 ft)
M18 mm: Vehicle: 566 m (1,856.96 ft); Human: 193 m (633.2 ft)
35 mm: Vehicle: 1,101 m (3,612.2 ft); Human: 375 m (1,230.31 ft)

Identification Distance③

9 mm: Vehicle: 143 m (469.16 ft); Human: 48 m (157.48 ft)
M18 mm: Vehicle: 286 m (938.32 ft); Human: 96 m (314.96 ft)
35 mm: Vehicle: 556 m (1,824.15 ft); Human: 188 m (616.8 ft)

Digital Detail Enhancement (DDE)

Yes

Thermal Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

24 levels

Thermal AGC

Auto; manual

Thermal Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/autumn/winter)

Temperature Measurement Range

Low temperature mode:
–20 °C (–4 °F) to +150 °C (+302 °F)
High temperature mode:
+100 °C (+212 °F) to +550 °C (+1022 °F)
Auto mode

Temperature Measurement Accuracy

Max. (±2 °C, ±2%)
Operating temperature:
–20 °C (–4 °F) to +50 °C (+122 °F)

Temperature Measurement Mode

Spot: 12
Line: 12
Area: 12
Support 12 rules simultaneously

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

Center ≥ 1200 TVL
Edge ≥ 850 TVL

Min. Illumination

Color: 0.001 lux@F1.4
Black & white: 0.0001 lux@F1.4
0 lux (IR on)

Visible AGC

Auto; manual

Visible Noise Reduction

2D NR; 3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Optical defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Auto

Image Flip

180°

Exposure Compensation

Yes

Visible Focus Control

Auto; semi-auto; manual

Focal Length

5.5 mm–248 mm

Field of View

H: 61.8°–2.2°
V: 36.3°–1.3°

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Illuminator On/Off Control

Auto; manual

Illumination Distance

150 m (429 ft, IR)

Audio and Video

Video Compression

H.264 (High, Main); M-JPEG; H.265

Resolution

Video Frame Rate

Audio Compression

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –90° to +90°

Manual Control Speed

Pan: 0.1°/s to 30°/s
Tilt: 0.1°/s to 20°/s

Preset Speed

Pan: 0.1°/s to 30°/s
Tilt: 0.1°/s to 20°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Privacy Masking

4 blocks

Idle Motion

Preset; auto pattern; auto tour; pan; progressive scan

Function

Two-way Audio

Yes

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 (total bandwidth: 64 MB)

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes (Intelligence automatically turns off when PIP is on)

Intelligence

Cold/Hot Spot Trace

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

100–240 VAC

Power Consumption

<120 W

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Physical Characteristics

Protection

IP68

Reliability

Surge protection: 6 kV
Air discharge of 15 kV
Contact discharge of 8 kV

Structure

Product Dimensions

554 mm × 350 mm × 489 mm (21.8" × 13.8" × 19.3") (L × W × H)

Packaging Dimensions

700 mm × 700 mm × 615 mm (27.6" × 27.6" × 24.2") (L × W × H)

Net Weight

≤47 kg (103.62 lb)

Gross Weight

≤75 kg (165.35 lb)

Lens

Included

Casing

SUS304/SUS316L (customized)

Certification

Certifications

Explosion-proof certification

ATEX, IECEx:
II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db

Heat Detection Distance

Focal Length / Max. Distance

Focal Length	Max. Distance
9 mm	780 m (2,559.06 ft)
M18 mm	1,500 m (4,921.3 ft)
35 mm	3,000 m (9,842.5 ft)

Temperature Measurement Distance

Focal Length / Min. / Max. Distance

Focal Length	Min. Distance	Max. Distance
9 mm	1 m (3.28 ft)	5 m (16.4 ft)
M18 mm	3 m (9.84 ft)	15 m (49.21 ft)
35 mm	6 m (19.69 ft)	30 m (98.43 ft)

Termal Patlama Önleyici Hibrit PTZ Kamera

Datasheet

TPC-AEPT8641-T

A&E Dökümanları

TPC-AEPT8641-T

Firmware

TPC-AEPT8641-T

TPC-AEPT8641-T

TPC-AEPT8641-T

TPC-AEPT8641-T

Kullanım Kılavuzu

TPC-AEPT8641-T

Teknik Çizim

TPC-AEPT8641-T

TPC-AEPT8641-T

Fotoğraf

TPC-AEPT8641-T

Similar Products

Thermal Anti-Explosion Hybrid PTZ Camera

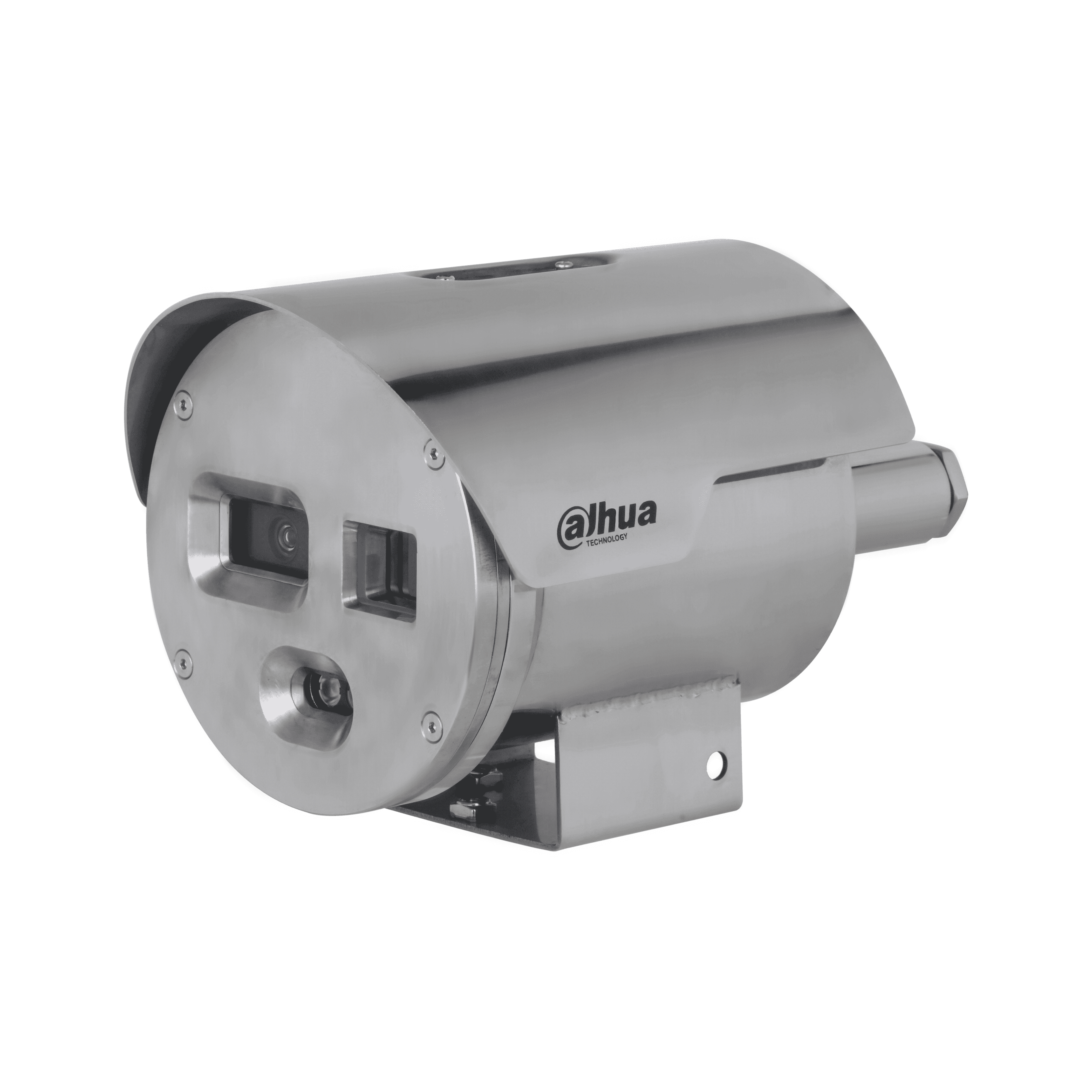

Thermal Network Explosion-proof Hybrid Bullet Camera

Thermal Network Explosion-proof Hybrid Bullet Camera

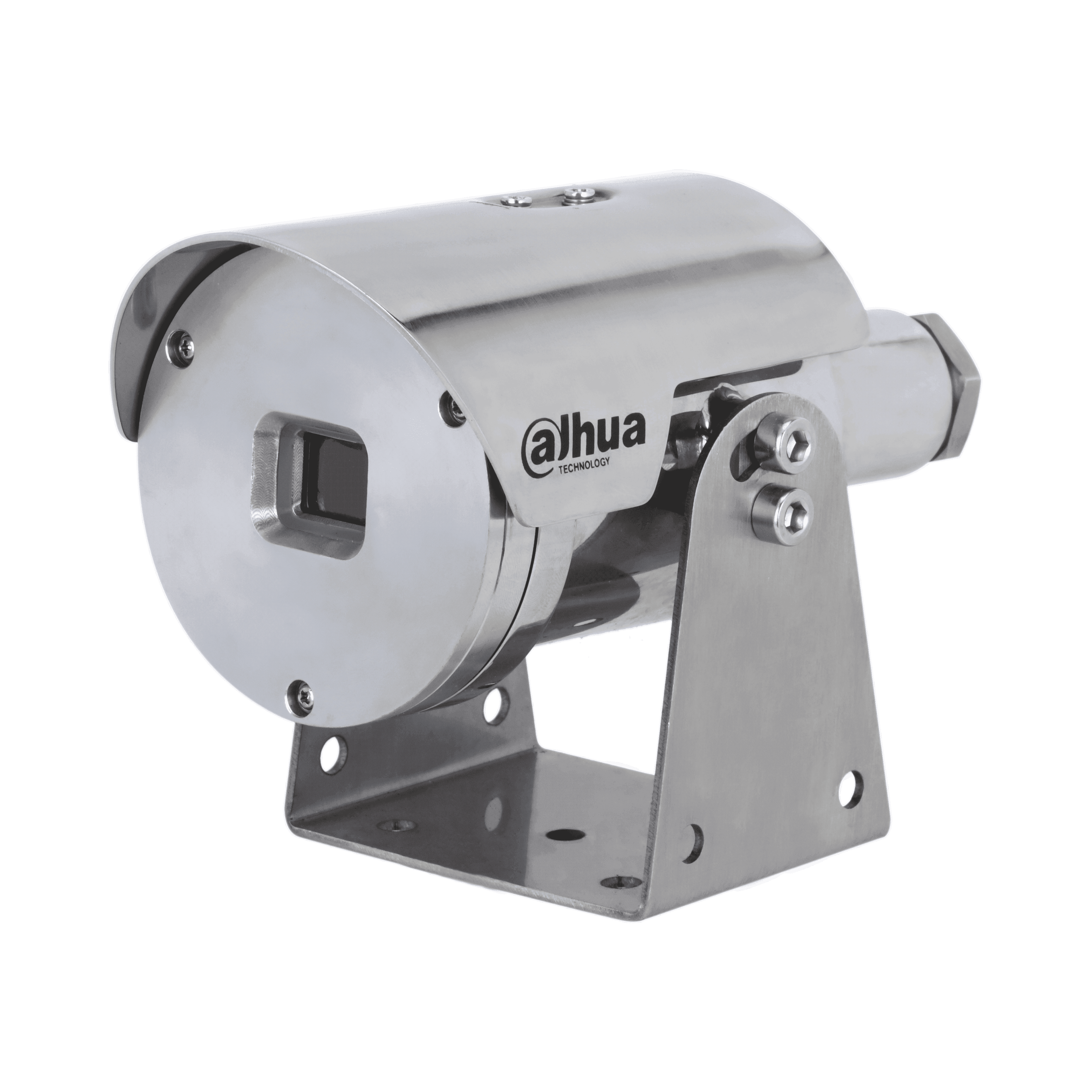

Thermal Network Explosion-proof Bullet Camera

Termal Patlama Önleyici Hibrit PTZ Kamera

Datasheet

TPC-AEPT8641-T

A&E Dökümanları

TPC-AEPT8641-T

Firmware

TPC-AEPT8641-T

TPC-AEPT8641-T

TPC-AEPT8641-T

TPC-AEPT8641-T

Kullanım Kılavuzu

TPC-AEPT8641-T

Teknik Çizim

TPC-AEPT8641-T

TPC-AEPT8641-T

Fotoğraf

TPC-AEPT8641-T

Similar Products

Thermal Anti-Explosion Hybrid PTZ Camera

Thermal Network Explosion-proof Hybrid Bullet Camera

Thermal Network Explosion-proof Hybrid Bullet Camera

Thermal Network Explosion-proof Bullet Camera
