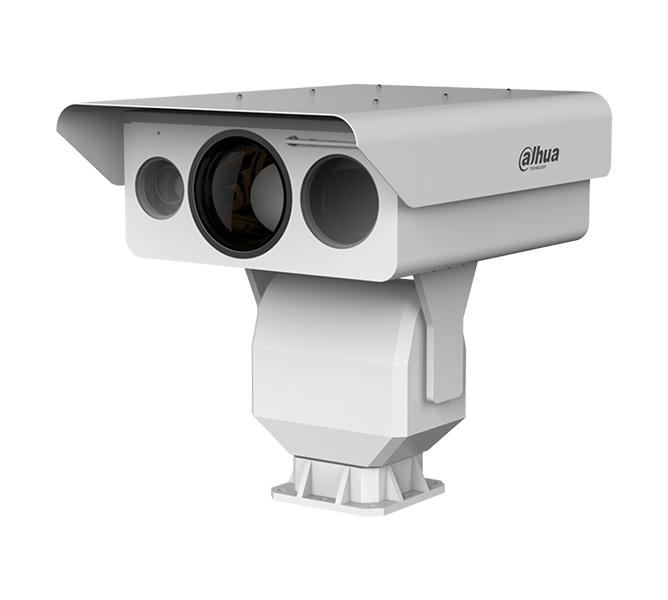

Name: Thermal Network Hybrid PTZ Camera
Brand: Dahua
SKU: TPC-PT8641C

Combines thermal and visible imaging in a single housing and scans wide sites without a break.

An uncooled vanadium oxide thermal detector and a 4 MP visible channel work inside the same PTZ housing. The camera turns heat differences into an image in darkness and fog, separates heat, smoke and intrusion events, and supports human and vehicle classification.

640 × 512Thermal effective pixels

4 MPVisible channel resolution

300Presets

100–300 VACPower supply

IP66Protection Grade

-40 °C to +70 °COperating Temperature

Key features

640 × 512pixels

Thermal detector

The uncooled detector covers the 8 µm–14 µm band with a sensitivity of ≤35 mK.

4MP

Visible channel

The CMOS sensor delivers daytime video at 2688 × 1520.

300presets

Position memory

The camera holds 8 tours and 5 patterns; each tour runs up to 32 presets in sequence.

210W

Draw with the heater on

Basic consumption is 100 W; with the illuminator on as well it reaches 260 W.

512GB

Edge recording

Micro SD card recording and FTP upload run at the same time.

IP66rating

Outdoor endurance

The housing operates from -40 °C to +70 °C with 6 kV surge protection.

DAY-TO-DAY USE

Two channels on one screenOperators watch thermal and visible video at once; picture in picture merges both channels.

Self-clearing front glassThe rain-sensing wiper clears the window and optical defog sharpens distant targets.

Fits an existing systemONVIF, CGI and DaHuaSDK interfaces connect the camera to recording and management software.

Usage AreaPerimeter security and border lines·Port and coastal surveillance·Heat-based early warning

Intelligence functions turn off automatically while PIP is on.

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

17 µm

Spectral Range

8 µm–14 µm

Sensitivity (NETD)

≤35 mK@f/1.0

Focal Length

100 mm; 150 mm; 20 mm–100 mm; 30 mm–150 mm; 38 mm–190 mm; 23 mm–230 mm

Field of View

100 mm: H: 6.2°; V: 5.0°
150 mm: H: 4.15°; V: 3.32°
20 mm–100 mm: H: 31.6°–6.2°; V: 25.1°–5°
30 mm–150 mm: H: 20.6°–4.2°; V: 16.5°–3.3°
38 mm–190 mm: H: 16.7°–3.5°; V: 12.5°–2.6°
23 mm–230 mm: H: 26.6°–2.7°; V: 21.4°–2.2°

Focus Control

Manual; Auto; Semi-auto

Close Focus Distance

100 mm: 5 m
150 mm: 15 m
20 mm–100 mm: 2 m
30 mm–150 mm: 5 m
38 mm–190 mm: 5 m
23 mm–230 mm: 2 m

Optical Zoom

100 mm: None
150 mm: None
20 mm–100 mm: 5×
30 mm–150 mm: 5×
38 mm–190 mm: 5×
23 mm–230 mm: 10×

Digital Detail Enhancement (DDE)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

24 levels

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot; black hot; fusion; rainbow; globow; ironbow1; ironbow2; sepia; color1; color2; icefire; rain; red hot; green hot; spring; summer; autumn; winter)

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

6 mm–336 mm: Center ≥ 1200 TVL; Edge ≥ 900 TVL
10 mm–600 mm: Center ≥ 1200 TVL; Edge ≥ 900 TVL
10 mm–860 mm: Center ≥ 1200 TVL; Edge ≥ 900 TVL

Min. Illumination

6 mm–336 mm: Color: 0.005 lux@F1.5; Black & white: 0.0005 lux@F1.5
10 mm–600 mm: Color: 0.002 lux@F1.5; Black & white: 0.0005 lux@F1.5
10 mm–860 mm: Color: 0.002 lux (F2.8); Black & white: 0.002 lux (F2.8)

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Optical defog

Image Stabilization

6 mm–336 mm: Optical Image Stabilization
10 mm–600 mm: Electronic Image Stabilization (EIS)
10 mm–860 mm: Optical Image Stabilization

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Digital Zoom

16×

Day/Night

Auto (ICR); Color; B/W

Image Flip

180°

Exposure Compensation

Yes

Focus Control

Auto; Semi-auto; Manual

Focal Length

6 mm–336 mm; 10 mm–600 mm; 10 mm–860 mm

Zoom Speed

6 mm–336 mm: <8.8 s
10 mm–600 mm: <12 s
10 mm–860 mm: <10 s

Field of View

6 mm–336 mm: H: 64.4°–1.28°; V: 38.37°–0.72°
10 mm–600 mm: H: 41.2°–1.2°; V: 22.6°–0.7°
10 mm–860 mm: H: 29.13°–0.58°; V: 16.72°–0.33°

Close Focus Distance

6 mm–336 mm: 0.1 m–5 m (0.33 ft–16.4 ft)
10 mm–600 mm: 1.5 m (4.92 ft)
10 mm–860 mm: 1 m–10 m (3.28 ft–32.81 ft)

Optical Zoom

6 mm–336 mm: 56×
10 mm–600 mm: 60×
10 mm–860 mm: 86×

Aperture

6 mm–336 mm: F1.5–F5.3
10 mm–600 mm: F1.8–F5.0
10 mm–860 mm: F2.8–F8.2

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal:
Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default)
Sub stream: 640 × 512; 320 × 256; 640 × 512 (default)
Visible:
Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default)
Sub stream: 704 × 576; 352 × 288; 352 × 288 (default)

Video Frame Rate

Thermal (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible (50 Hz):
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Thermal (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default
Visible (60 Hz):
Main stream: 1 fps–30 fps, 30 fps by default
Sub stream: 1 fps–30 fps, 15 fps by default

Audio Encoding

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –45° to +60°

Manual Control Speed

Pan: 0.01°/s to 30°/s
Tilt: 0.01°/s to 15°/s

Preset Speed

Pan: 0.01°/s to 30°/s
Tilt: 0.01°/s to 15°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Privacy Masking

4 blocks

Idle Motion

Preset; Pattern; Tour; Scan; Pan

Timing Task

Preset; Pattern; Tour; Horizontal Scan

Position Display

ON/OFF

Preset Video Freeze

Yes

PTZ Limit

Yes

Telephoto Speed Limit

Yes

Positioning Accuracy

±0.1°

Wiper

Manual/Auto. Supports setting wiper running times, frequency, and period

3D Positioning

Yes

Laser Illumination

Distance

≥3,000 m (9,842.52 ft)

Angle of Laser Illuminator

0.3° to 13° adjustable

Function

Two-way Audio

Yes

Network Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Region of Interest (RoI)

Yes

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI; DaHuaSDK

Browser

IE: IE8 and later (includes the browsers with IE kernel, such as 360 Explorer, Sougou Explorer)
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes (Intelligence automatically turns off when PIP is on)

Intelligence

Heat Detection

Yes. Marks the detected anomaly.

Cold/Hot Spot Trace

Yes

Perimeter Protection

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Target Filtering

Yes (by pixel size)

Target Tracking

Manual tracking/alarm linking tracking

Smoke Detection

Yes

Boat Detection

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

100–300 VAC (adapter included)

Power Consumption

Basic: <100 W
Max: <210 W (heater on, illuminator off); <260 W (heater on, illuminator on)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +80 °C (–40 °F to +176 °F)

Physical Characteristics

Protection

IP66

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Structure

Product Dimensions

655 mm × 515 mm × 616.7 mm (25.79" × 20.28" × 24.28") (L × W × H)

Packaging Dimensions

885 mm × 687 mm × 900 mm (34.84" × 27.05" × 35.43") (L × W × H)

Net Weight

≤75 kg (165.35 lb)

Gross Weight

≤105 kg (231.49 lb)

Heat Detection Distance

Focal Length	Max. Distance
100 mm	6,000 m (19,685.04 ft)
150 mm	9,000 m (29,527.56 ft)

Perimeter Protection Distance

Focal Length	Distance (Vehicle)	Distance (Human)
100 mm	2,100 m (6,889.76 ft)	700 m (2,296.59 ft)
150 mm	3,150 m (10,334.65 ft)	1,050 m (3,444.88 ft)
20 mm–100 mm	2,100 m (6,889.76 ft)	700 m (2,296.59 ft)
30 mm–150 mm	3,150 m (10,334.65 ft)	1,050 m (3,444.88 ft)
38 mm–190 mm	3,990 m (13,090.55 ft)	1,330 m (4,363.52 ft)
23 mm–230 mm	4,830 m (15,846.46 ft)	1,610 m (5,282.15 ft)

DORI Distance

Focal Length	Detection Distance①	Recognition Distance②	Identification Distance③
100 mm	Vehicle: 9,020 m (29,593.18 ft) Human: 2,941 m (9,648.95 ft)	Vehicle: 2,255 m (7,398.29 ft) Human: 735 m (2,411.42 ft)	Vehicle: 1,127 m (3,697.51 ft) Human: 368 m (1,207.35 ft)
150 mm	Vehicle: 13,529 m (44,386.48 ft) Human: 4,412 m (14,475.07 ft)	Vehicle: 3,382 m (11,095.80 ft) Human: 1,103 m (3,618.77 ft)	Vehicle: 1,691 m (5,547.90 ft) Human: 551 m (1,807.74 ft)
20 mm–100 mm	Vehicle: 9,020 m (29,593.18 ft) Human: 2,941 m (9,648.95 ft)	Vehicle: 2,255 m (7,398.29 ft) Human: 735 m (2,411.42 ft)	Vehicle: 1,127 m (3,697.51 ft) Human: 368 m (1,207.35 ft)
30 mm–150 mm	Vehicle: 13,529 m (44,386.48 ft) Human: 4,412 m (14,475.07 ft)	Vehicle: 3,382 m (11,095.80 ft) Human: 1,103 m (3,618.77 ft)	Vehicle: 1,691 m (5,547.90 ft) Human: 551 m (1,807.74 ft)
38 mm–190 mm	Vehicle: 17,137 m (56,223.75 ft) Human: 5,588 m (18,333.33 ft)	Vehicle: 4,284 m (14,055.12 ft) Human: 1,397 m (4,583.33 ft)	Vehicle: 2,142 m (7,027.56 ft) Human: 699 m (2,293.31 ft)
23 mm–230 mm	Vehicle: 20,745 m (68,061.02 ft) Human: 6,765 m (22,194.88 ft)	Vehicle: 5,186 m (17,014.44 ft) Human: 1,691 m (5,547.90 ft)	Vehicle: 2,593 m (8,507.22 ft) Human: 846 m (2,775.59 ft)

Combines thermal and visible imaging in a single housing and scans wide sites without a break.

640 × 512Thermal effective pixels

4 MPVisible channel resolution

300Presets

100–300 VACPower supply

IP66Protection Grade

-40 °C to +70 °COperating Temperature

Key features

640 × 512pixels

Thermal detector

The uncooled detector covers the 8 µm–14 µm band with a sensitivity of ≤35 mK.

4MP

Visible channel

The CMOS sensor delivers daytime video at 2688 × 1520.

300presets

Position memory

The camera holds 8 tours and 5 patterns; each tour runs up to 32 presets in sequence.

210W

Draw with the heater on

Basic consumption is 100 W; with the illuminator on as well it reaches 260 W.

512GB

Edge recording

Micro SD card recording and FTP upload run at the same time.

IP66rating

Outdoor endurance

The housing operates from -40 °C to +70 °C with 6 kV surge protection.

DAY-TO-DAY USE

Two channels on one screenOperators watch thermal and visible video at once; picture in picture merges both channels.

Self-clearing front glassThe rain-sensing wiper clears the window and optical defog sharpens distant targets.

Fits an existing systemONVIF, CGI and DaHuaSDK interfaces connect the camera to recording and management software.

Usage AreaPerimeter security and border lines·Port and coastal surveillance·Heat-based early warning

Intelligence functions turn off automatically while PIP is on.

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

17 µm

Spectral Range

8 µm–14 µm

Sensitivity (NETD)

≤35 mK@f/1.0

Focal Length

100 mm; 150 mm; 20 mm–100 mm; 30 mm–150 mm; 38 mm–190 mm; 23 mm–230 mm

Field of View

Focus Control

Manual; Auto; Semi-auto

Close Focus Distance

100 mm: 5 m
150 mm: 15 m
20 mm–100 mm: 2 m
30 mm–150 mm: 5 m
38 mm–190 mm: 5 m
23 mm–230 mm: 2 m

Optical Zoom

100 mm: None
150 mm: None
20 mm–100 mm: 5×
30 mm–150 mm: 5×
38 mm–190 mm: 5×
23 mm–230 mm: 10×

Digital Detail Enhancement (DDE)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

24 levels

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot; black hot; fusion; rainbow; globow; ironbow1; ironbow2; sepia; color1; color2; icefire; rain; red hot; green hot; spring; summer; autumn; winter)

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

6 mm–336 mm: Center ≥ 1200 TVL; Edge ≥ 900 TVL
10 mm–600 mm: Center ≥ 1200 TVL; Edge ≥ 900 TVL
10 mm–860 mm: Center ≥ 1200 TVL; Edge ≥ 900 TVL

Min. Illumination

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Optical defog

Image Stabilization

6 mm–336 mm: Optical Image Stabilization
10 mm–600 mm: Electronic Image Stabilization (EIS)
10 mm–860 mm: Optical Image Stabilization

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Digital Zoom

16×

Day/Night

Auto (ICR); Color; B/W

Image Flip

180°

Exposure Compensation

Yes

Focus Control

Auto; Semi-auto; Manual

Focal Length

6 mm–336 mm; 10 mm–600 mm; 10 mm–860 mm

Zoom Speed

6 mm–336 mm: <8.8 s
10 mm–600 mm: <12 s
10 mm–860 mm: <10 s

Field of View

6 mm–336 mm: H: 64.4°–1.28°; V: 38.37°–0.72°
10 mm–600 mm: H: 41.2°–1.2°; V: 22.6°–0.7°
10 mm–860 mm: H: 29.13°–0.58°; V: 16.72°–0.33°

Close Focus Distance

6 mm–336 mm: 0.1 m–5 m (0.33 ft–16.4 ft)
10 mm–600 mm: 1.5 m (4.92 ft)
10 mm–860 mm: 1 m–10 m (3.28 ft–32.81 ft)

Optical Zoom

6 mm–336 mm: 56×
10 mm–600 mm: 60×
10 mm–860 mm: 86×

Aperture

6 mm–336 mm: F1.5–F5.3
10 mm–600 mm: F1.8–F5.0
10 mm–860 mm: F2.8–F8.2

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Video Frame Rate

Audio Encoding

G.711a; G.711mu; PCM

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –45° to +60°

Manual Control Speed

Pan: 0.01°/s to 30°/s
Tilt: 0.01°/s to 15°/s

Preset Speed

Pan: 0.01°/s to 30°/s
Tilt: 0.01°/s to 15°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Privacy Masking

4 blocks

Idle Motion

Preset; Pattern; Tour; Scan; Pan

Timing Task

Preset; Pattern; Tour; Horizontal Scan

Position Display

ON/OFF

Preset Video Freeze

Yes

PTZ Limit

Yes

Telephoto Speed Limit

Yes

Positioning Accuracy

±0.1°

Wiper

Manual/Auto. Supports setting wiper running times, frequency, and period

3D Positioning

Yes

Laser Illumination

Distance

≥3,000 m (9,842.52 ft)

Angle of Laser Illuminator

0.3° to 13° adjustable

Function

Two-way Audio

Yes

Network Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Region of Interest (RoI)

Yes

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI; DaHuaSDK

Browser

IE: IE8 and later (includes the browsers with IE kernel, such as 360 Explorer, Sougou Explorer)
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes (Intelligence automatically turns off when PIP is on)

Intelligence

Heat Detection

Yes. Marks the detected anomaly.

Cold/Hot Spot Trace

Yes

Perimeter Protection

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Target Filtering

Yes (by pixel size)

Target Tracking

Manual tracking/alarm linking tracking

Smoke Detection

Yes

Boat Detection

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

100–300 VAC (adapter included)

Power Consumption

Basic: <100 W
Max: <210 W (heater on, illuminator off); <260 W (heater on, illuminator on)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +80 °C (–40 °F to +176 °F)

Physical Characteristics

Protection

IP66

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Structure

Product Dimensions

655 mm × 515 mm × 616.7 mm (25.79" × 20.28" × 24.28") (L × W × H)

Packaging Dimensions

885 mm × 687 mm × 900 mm (34.84" × 27.05" × 35.43") (L × W × H)

Net Weight

≤75 kg (165.35 lb)

Gross Weight

≤105 kg (231.49 lb)

Heat Detection Distance

Focal Length	Max. Distance
100 mm	6,000 m (19,685.04 ft)
150 mm	9,000 m (29,527.56 ft)

Perimeter Protection Distance

Focal Length	Distance (Vehicle)	Distance (Human)
100 mm	2,100 m (6,889.76 ft)	700 m (2,296.59 ft)
150 mm	3,150 m (10,334.65 ft)	1,050 m (3,444.88 ft)
20 mm–100 mm	2,100 m (6,889.76 ft)	700 m (2,296.59 ft)
30 mm–150 mm	3,150 m (10,334.65 ft)	1,050 m (3,444.88 ft)
38 mm–190 mm	3,990 m (13,090.55 ft)	1,330 m (4,363.52 ft)
23 mm–230 mm	4,830 m (15,846.46 ft)	1,610 m (5,282.15 ft)

DORI Distance

Focal Length	Detection Distance①	Recognition Distance②	Identification Distance③
100 mm	Vehicle: 9,020 m (29,593.18 ft) Human: 2,941 m (9,648.95 ft)	Vehicle: 2,255 m (7,398.29 ft) Human: 735 m (2,411.42 ft)	Vehicle: 1,127 m (3,697.51 ft) Human: 368 m (1,207.35 ft)
150 mm	Vehicle: 13,529 m (44,386.48 ft) Human: 4,412 m (14,475.07 ft)	Vehicle: 3,382 m (11,095.80 ft) Human: 1,103 m (3,618.77 ft)	Vehicle: 1,691 m (5,547.90 ft) Human: 551 m (1,807.74 ft)
20 mm–100 mm	Vehicle: 9,020 m (29,593.18 ft) Human: 2,941 m (9,648.95 ft)	Vehicle: 2,255 m (7,398.29 ft) Human: 735 m (2,411.42 ft)	Vehicle: 1,127 m (3,697.51 ft) Human: 368 m (1,207.35 ft)
30 mm–150 mm	Vehicle: 13,529 m (44,386.48 ft) Human: 4,412 m (14,475.07 ft)	Vehicle: 3,382 m (11,095.80 ft) Human: 1,103 m (3,618.77 ft)	Vehicle: 1,691 m (5,547.90 ft) Human: 551 m (1,807.74 ft)
38 mm–190 mm	Vehicle: 17,137 m (56,223.75 ft) Human: 5,588 m (18,333.33 ft)	Vehicle: 4,284 m (14,055.12 ft) Human: 1,397 m (4,583.33 ft)	Vehicle: 2,142 m (7,027.56 ft) Human: 699 m (2,293.31 ft)
23 mm–230 mm	Vehicle: 20,745 m (68,061.02 ft) Human: 6,765 m (22,194.88 ft)	Vehicle: 5,186 m (17,014.44 ft) Human: 1,691 m (5,547.90 ft)	Vehicle: 2,593 m (8,507.22 ft) Human: 846 m (2,775.59 ft)

Thermal Network Hybrid PTZ Camera

Datasheet

TPC-PT8641C

A&E Dökümanları

TPC-PT8641C

Kullanım Kılavuzu

TPC-PT8621C

TPC-PT8621C

Sertifika

CE Belgesi

Teknik Çizim

TPC-PT8621C

TPC-PT8621C

Fotoğraf

TPC-PT8621C

Similar Products

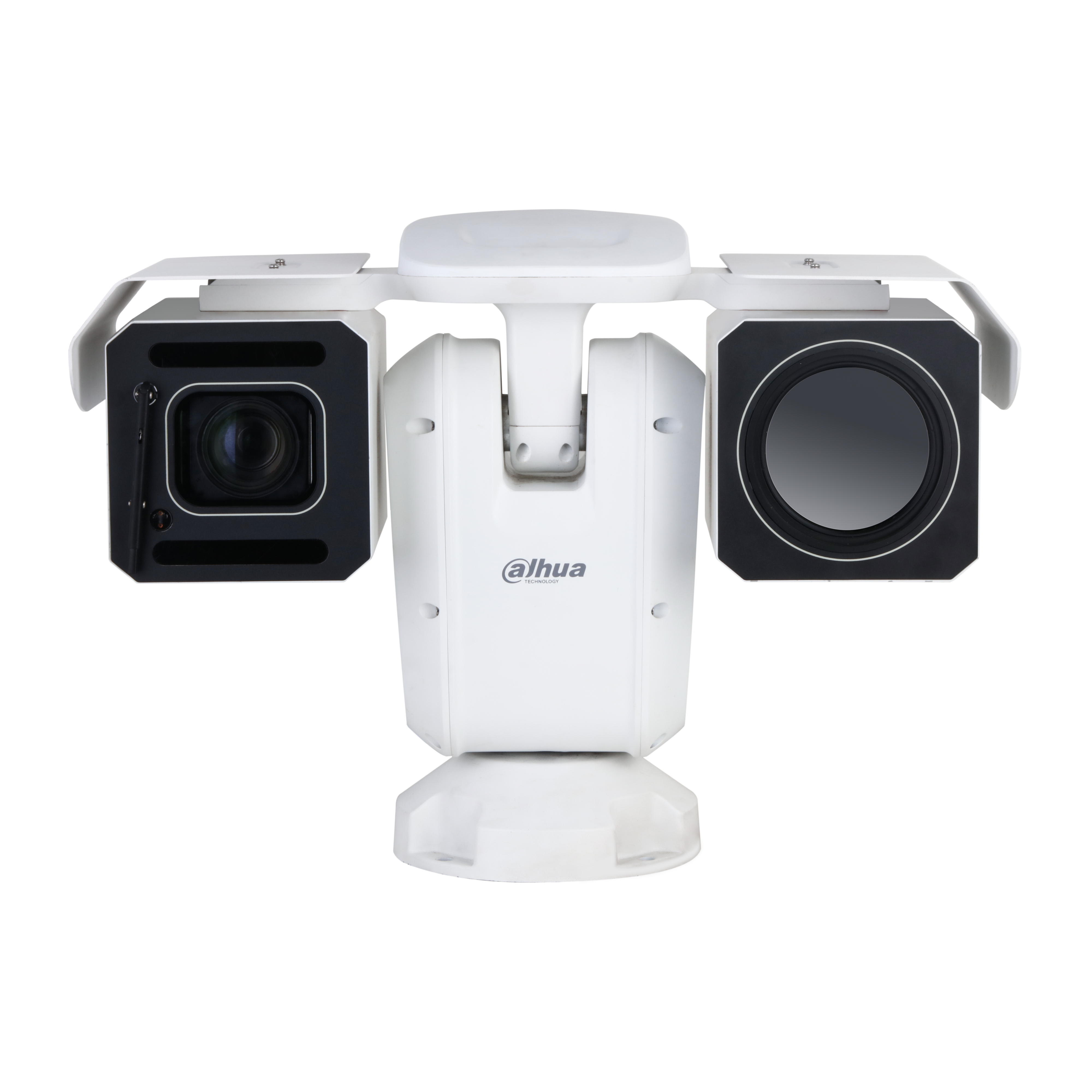

Thermal Network Multi-spectral Pan & Tilt Camera

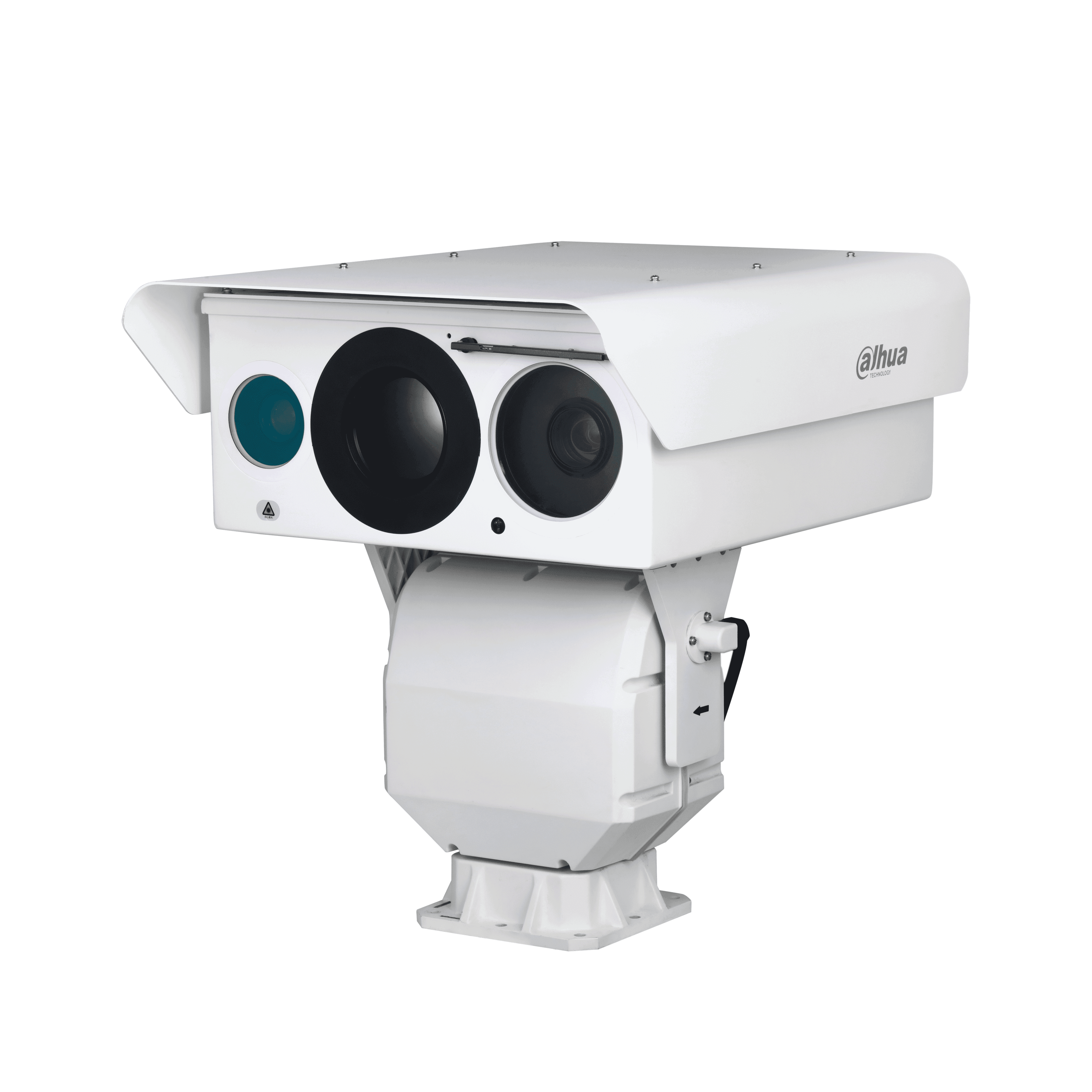

Termal IP Korozyon Önleyici Hibrit PTZ Kamera

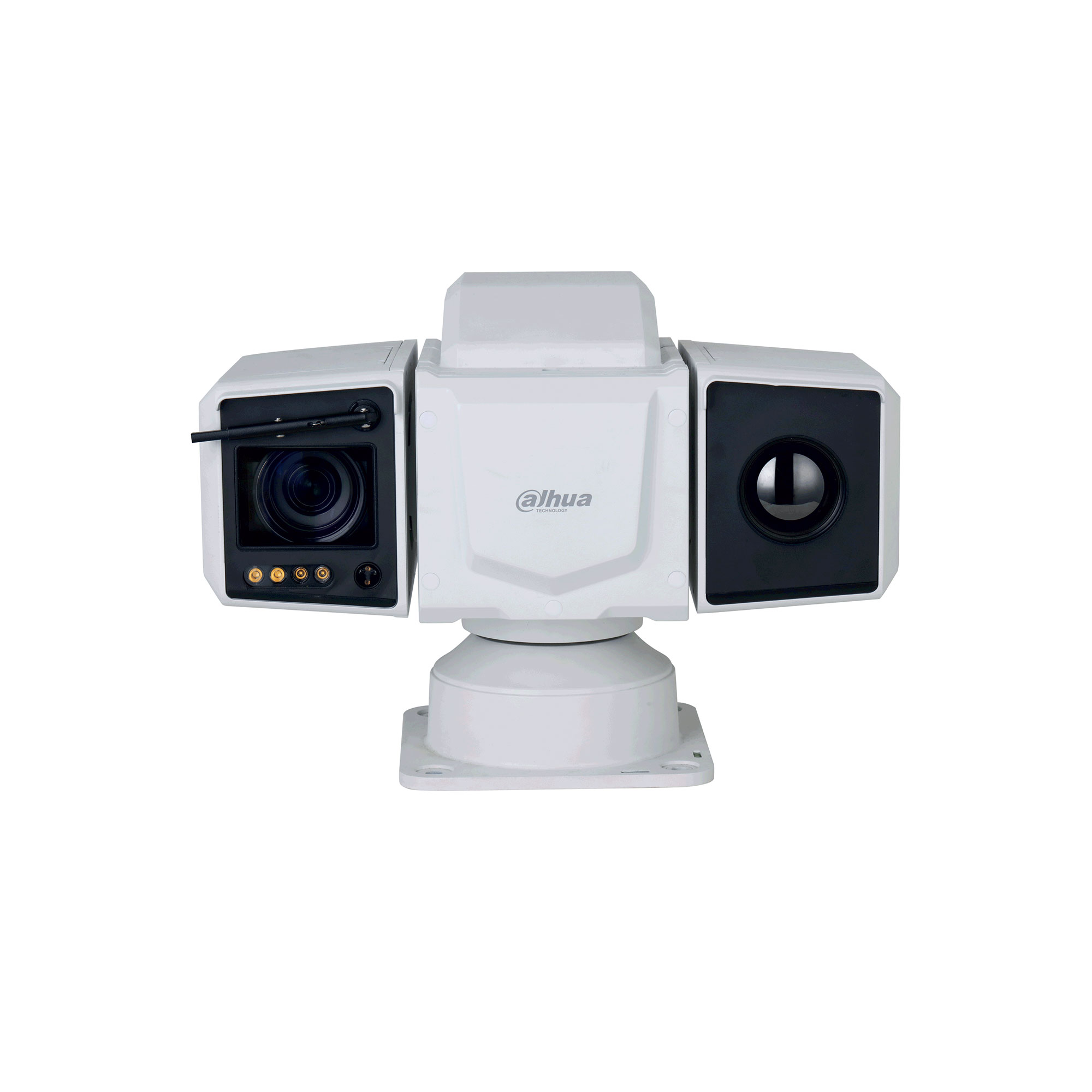

Thermal Network Mini Hybrid Pan & Tilt Camera

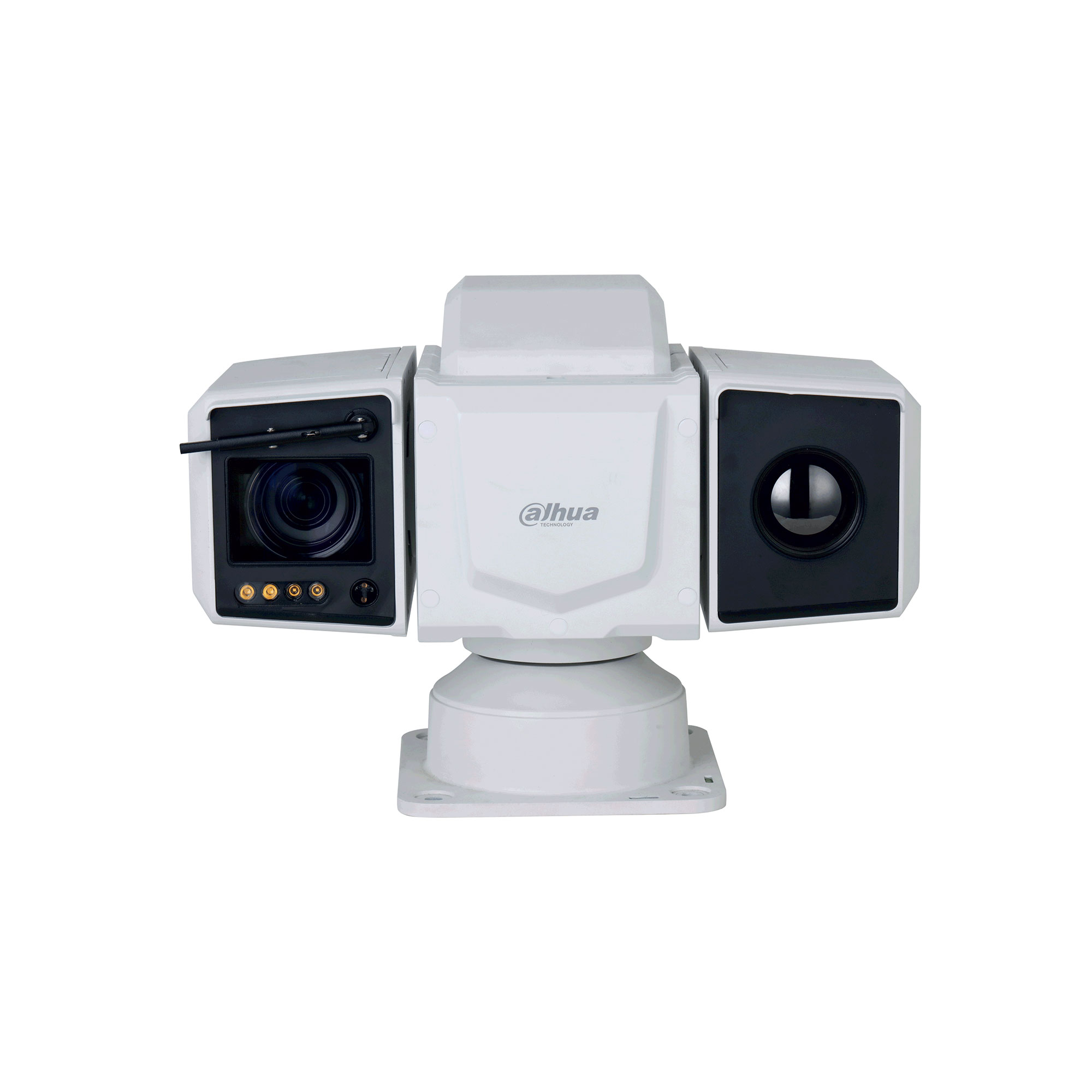

Thermal Network Mini Hybrid Pan & Tilt Camera

Thermal Network Hybrid PTZ Camera

Datasheet

TPC-PT8641C

A&E Dökümanları

TPC-PT8641C

Kullanım Kılavuzu

TPC-PT8621C

TPC-PT8621C

Sertifika

CE Belgesi

Teknik Çizim

TPC-PT8621C

TPC-PT8621C

Fotoğraf

TPC-PT8621C

Similar Products

Thermal Network Multi-spectral Pan & Tilt Camera

Termal IP Korozyon Önleyici Hibrit PTZ Kamera

Thermal Network Mini Hybrid Pan & Tilt Camera

Thermal Network Mini Hybrid Pan & Tilt Camera
