Answers the call from the aluminum door station on screen.

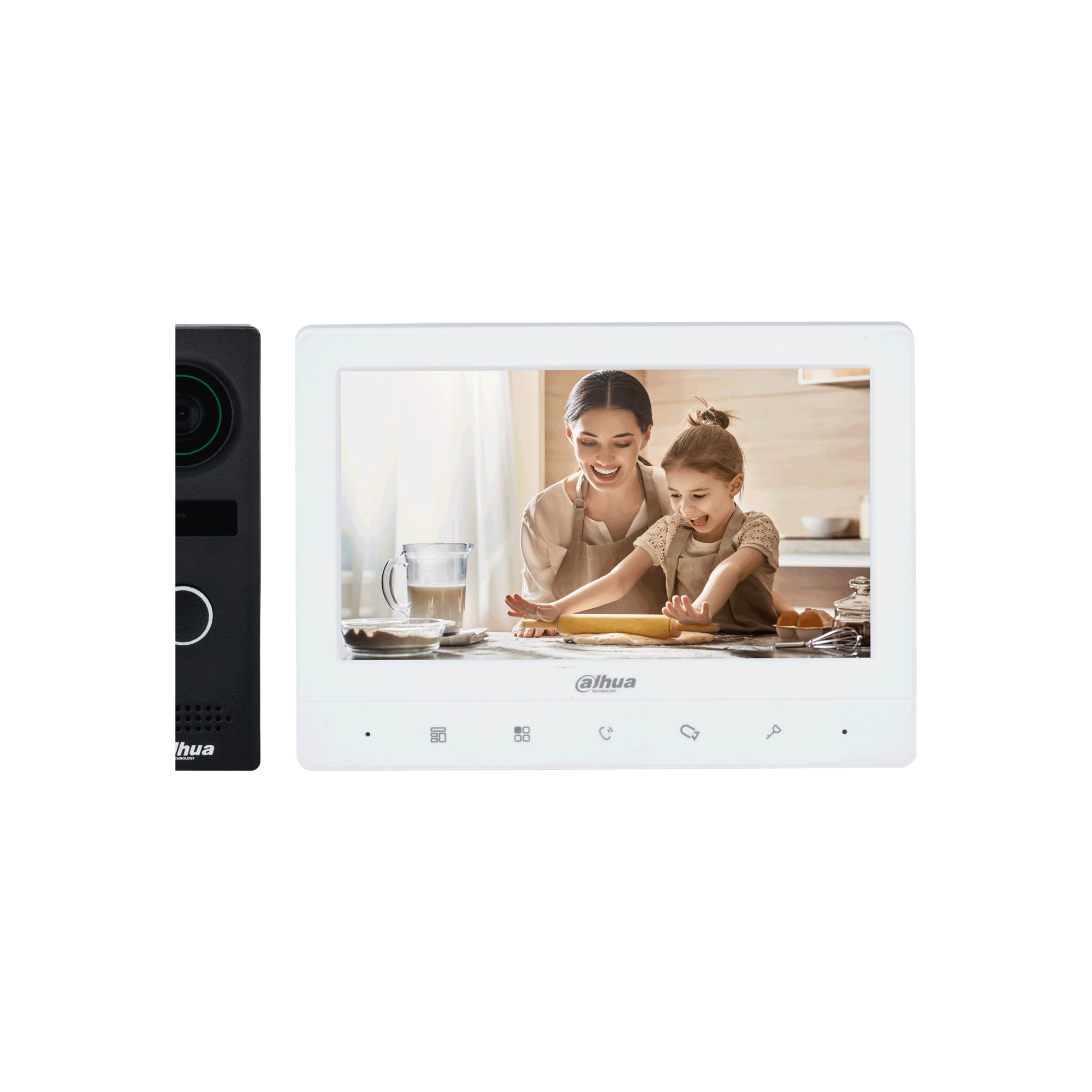

A video intercom kit made up of a touch-screen indoor monitor and an aluminum door station. The 7-inch TFT screen displays 1024 × 600 images, and the 1/4" 1.3 MP camera in the station covers 70° horizontally and 40° vertically. The ADC12 aluminum casing withstands the outdoors at IP66 and IK07.

7"TFT screen

1024 × 600Resolution

12 V DCPower supply

1.3 MPDoor station camera

IP66Protection Grade

IK07Impact resistance

Key features

Video intercomAnswers the call, shows the visitor on screen and releases the lock remotely.

System capacity2 door stations and 3 indoor monitors run on the same line.

SnapshotTakes a photo during a call and leaves a record of who came to the door.

Vandal resistant stationThe ADC12 cast aluminum body withstands the IK07 impact class and IP66 water and dust protection.

Night visionAutomatic IR with ICR switching reveals the doorway in darkness, and DWDR separates a face against strong light.

Simple installationThe bundled adapter and 5 m cable finish the mounting with no extra parts to source.

DHI-VTH1020J-T Indoor Monitor Specifications

Display Type / Resolution

7.0" TFT Screen / 1024 × 600

Button Type / Casing

Touch Button / PC + ABS (White)

Power Supply / Consumption

DC 12V 1A (Adapter Included) / Max. 5W

Dimensions / Accessory

133.90 mm × 182.70 mm × 17.70 mm / 5m Cable Included

DHI-VTO1000JM Outdoor Station Specifications

Image Sensor / Field of View

1/4" 1.3 MP CMOS / Horizontal: 70°, Vertical: 40°

Casing Material / Durability

ADC12 Aluminum / IP66 & IK07 (Vandal Resistant)

Day-Night / WDR

Auto IR (ICR Switch) / DWDR

Audio / Unlock Mode

Built-in Mic & Speaker / Remote Unlock Support

Dimensions / Color

131.45 mm × 46.00 mm × 33.80 mm / Black

Answers the call from the aluminum door station on screen.

7"TFT screen

1024 × 600Resolution

12 V DCPower supply

1.3 MPDoor station camera

IP66Protection Grade

IK07Impact resistance

Key features

Video intercomAnswers the call, shows the visitor on screen and releases the lock remotely.

System capacity2 door stations and 3 indoor monitors run on the same line.

SnapshotTakes a photo during a call and leaves a record of who came to the door.

Vandal resistant stationThe ADC12 cast aluminum body withstands the IK07 impact class and IP66 water and dust protection.

Night visionAutomatic IR with ICR switching reveals the doorway in darkness, and DWDR separates a face against strong light.

Simple installationThe bundled adapter and 5 m cable finish the mounting with no extra parts to source.

DHI-VTH1020J-T Indoor Monitor Specifications

Display Type / Resolution

7.0" TFT Screen / 1024 × 600

Button Type / Casing

Touch Button / PC + ABS (White)

Power Supply / Consumption

DC 12V 1A (Adapter Included) / Max. 5W

Dimensions / Accessory

133.90 mm × 182.70 mm × 17.70 mm / 5m Cable Included

DHI-VTO1000JM Outdoor Station Specifications

Image Sensor / Field of View

1/4" 1.3 MP CMOS / Horizontal: 70°, Vertical: 40°

Casing Material / Durability

ADC12 Aluminum / IP66 & IK07 (Vandal Resistant)

Day-Night / WDR

Auto IR (ICR Switch) / DWDR

Audio / Unlock Mode

Built-in Mic & Speaker / Remote Unlock Support

Dimensions / Color

131.45 mm × 46.00 mm × 33.80 mm / Black
