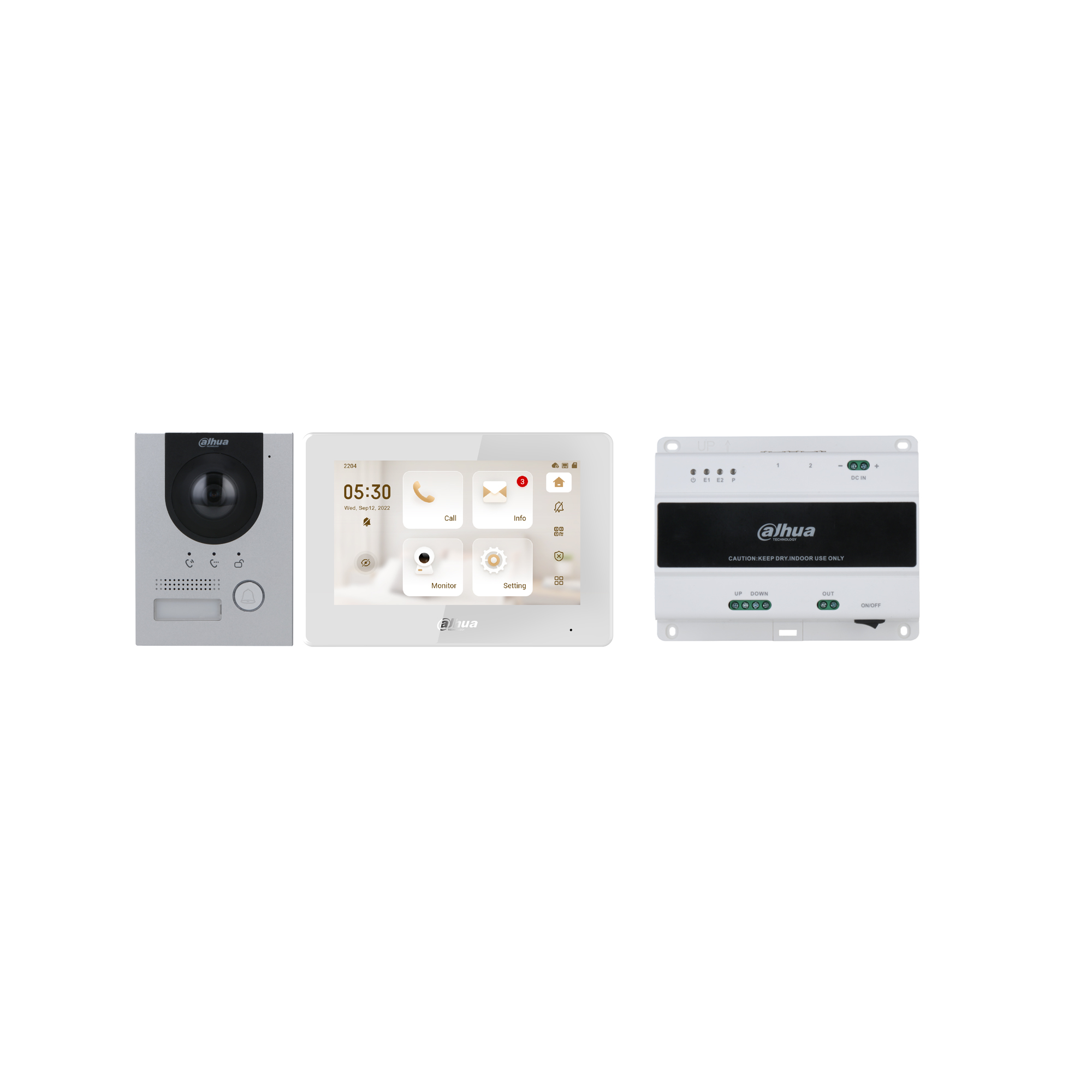

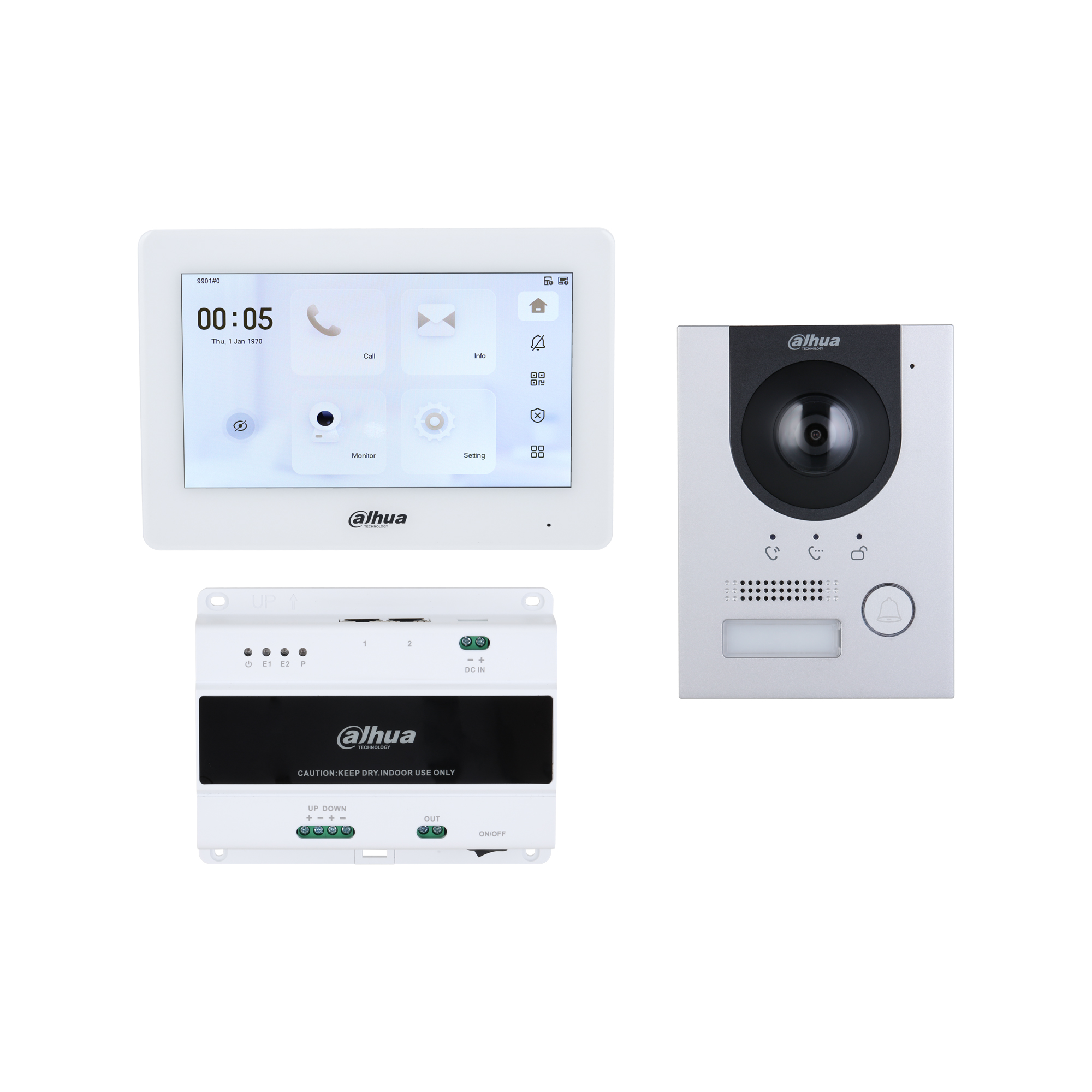

A video intercom kit that sees the doorway from edge to edge
The 2 MP camera in the outdoor station covers a 168.6° horizontal and 176.7° diagonal angle, so a person standing to either side of the door still enters the frame. 120 dB true WDR balances backlight, and automatic IR takes over in the dark. The indoor monitor answers the call on its 7-inch touchscreen and records to a Micro SD card.
7"Display
1024 × 600Resolution
2 MPCamera
6 / 1Alarm I/O
IP65 / IK07Protection Grade
PoEPower Supply
Key features
168.6°
Ultra wide angle
It gathers the area in front of the door from the sides as well, and a 176.7° diagonal angle covers the corners.
120dB
True WDR
It does not darken a face even when afternoon sun hits the door.
7inch
Touchscreen monitor
A TFT capacitive panel at 1024 × 600 resolution shows the call and the camera image.
IP65rating
Weather resistance
The IK07 impact class and the aluminum casing work between -30 °C and +60 °C.
6 / 1alarm
Peripheral inputs
Six inputs and one output take a detector, a siren and a doorbell connection.
10/100Mbps
Network ports
The switch carries two RJ-45 Ethernet ports and two cascade 2-wire ports.
IN DAILY USELocal recordingA Micro SD card keeps the image of a missed call on the device.
Remote door releaseWhen the resident is away, the mobile app carries the talk with the visitor and releases the lock.
Simple installThe switch clips onto a DIN rail, and the wiring comes down to 2 wires.
In installations that power a load from the 12 V output, the outdoor station requires a PSE switch that complies with the 802.3.at standard.
