| General Information |
|---|
| Product Code | FO116S-4T-LSZH |

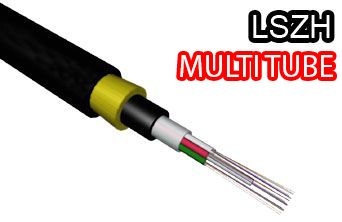

| Cable Type | Indoor/Outdoor Type Fiber Optical Cable, Steel Armored |
| Fiber Type | Single Mode 9/125, ITU-T G652D |
| Number of Fibers | 16 |
| Number of Loose Tubes × Number of Fibers per Tube | 4x4 |
| Standards Conformance | ANSI/TIA/EIA-569B.3, ISO/IEC 11801, CENELEC EN 50173 |
| Cable Construction |
|---|
| Central Strength Member (CSM) – Diameter | 2,2 ± 0,05 mm |
| Central Strength Member (CSM) – Material | FRP |
| CSM Oversheathing Diameter | --- |
| Loose Tube – Material | PC+PBT |
| Loose Tube – Diameter | 2,15 ± 3% mm |
| Loose Tube – Type of Filling Compound | Thixotropic jelly |
| Filler (if required) – Material | PE |
| Core Filling Compound – Material | Petroleum gel for water blocking |
| Core Wrapping – Material | Polyester tape |
| Periphery Strength Members – Material | Glass Yarn |
| Inner Sheath – Material | LDPE |
| Inner Sheath – Thickness | 1,0 mm (nominal) |
| Armor & Rodent Protection – Material | Two sides plastic clad and corrugated steel tape |
| Armor & Rodent Protection – Thickness | 0,15 mm |
| Outer Sheath – Material | UV stabilized LSZH thermoplastic material |
| Outer Sheath – Thickness | 1,3 mm (nominal) |
| Cable Diameter | 13,2 mm ± 0,2 |
| Cable Weight (approx.) | 200 kg/km |
| Mechanical Characteristics |
|---|
| Mechanical Tests | | Test | Test Standard | Specified Value | Acceptance Criteria |
|---|
| Tensile Force – Installation | IEC 60794-1-2-E1 | Max. 2700 N | Δα ≤ 0,05 dB, fiber strain ≤ 0,33 % | | Tensile Force – Operation | IEC 60794-1-2-E1 | Max. 1700 N | Δα ≤ 0,05 dB, no fiber strain | | Crush Resistance | IEC 60794-1-2-E3 | Max. 5000 N | Δα reversible | | Impact | IEC 60794-1-2-E4 | 10 Nm, 3 impacts at different points, R = 300 mm | No fibers break | | Torsion | IEC 60794-1-2-E7 | 100 N, ± 180°, 5 cycles | Δα ≤ 0,05 dB, no damage | | Repeated Bending | IEC 60794-1-2-E6 | R = 20 x D, 100 N load, 30 cycles | No damage | | Cable Bend | IEC 60794-1-2-E11 | R = 20 x D (D: cable diameter), 4 turns, 3 cycles | Δα ≤ 0,05 dB, no damage |
|
| Note | All optical measurements at 1550 nm. |
| Environmental Characteristics |
|---|
| Environmental Tests | | Test | Test Standard | Specified Value | Acceptance Criteria |
|---|
| Water Penetration | IEC 60794-1-2-F5B | 1 meter specimen, 1 m water altitude | No leakage from the opposite end of the cable in 24 hours | | Temperature Cycling | IEC 60794-1-2-F1 | Storage: -40 to +80 °C
Installation: -5 to +50 °C
Operation: -30 to +70 °C | Δα = <0,05 dB/km at 1550 nm |
|
| Identification |
|---|
| Cable Marking | 1 m ±1% intervals in white color with hot print |
| Identification of Cable | ORingNetworking <year of manufacture> <number of fibers> F <fiber type> <length marking in meter> (This inscription is standard imprint; it can be changed according to request.) |
| Color of Filler (if required) | Black |
| Color of Loose Tubes | 1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Grey, 6.White (other tube and fiber colors are optional) |
| Color of Fibers | 1.Blue, 2.Orange, 3.Green, 4.Brown |
| Color of Outer Sheath | Black |
| Delivery Information |
|---|
| Drum Length / Tolerance | 2000 m ± 5% |
| Drum Flange Diameter | 1250 mm |
| Drum Core Diameter | 580 mm |
| Outside Width | 780 mm |
| Central Hole Diameter | 85 mm |
| Note | Drum dimensions can change depending on the cable length on a drum. Standard delivery length is 2 km; other lengths are optional. |
| Optical Fiber Characteristics (Standard SM Fiber ITU-T G652D) |
|---|
| Fiber Specifications | | Feature | Specified Value | Standard Approval |
|---|
| Attenuation (max) | 0.36 dB/km (1310 nm)
0.22 dB/km (1550 nm) | IEC 793-1 | | Mode Field Diameter (MFD) | 9.2±0.5µm | IEC 793-1 | | Chromatic Dispersion (max) | 3.5 ps/(nmxkm) (1310nm)
18 ps/(nmxkm) (1550nm) | IEC 793-1 | | Cladding Diameter | 125±1µm | IEC 793-1 | | Core/Clad Concentricity Error (max) | 1µm | IEC 793-1 | | Zero Dispersion Wavelength | 1300nm≤1324nm | IEC 793-1 | | Cladding Non-circularity (max) | 2% | IEC 793-1 | | Coating Diameter | 250±15µm | IEC 793-1 | | Cut-off Wavelength | 1150nm≤1330nm | IEC 793-1 | | Proof Test | 8.4 N | IEC 793-1 | | Proof Test Strain | 1.00% | IEC 793-1 |
|
