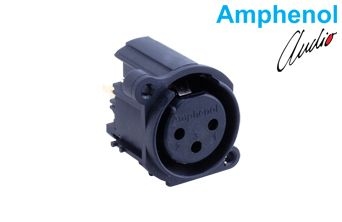

Stock Code: AC3FAVL1-AU-B
| General Characteristics | |
|---|---|
| Part Number | AC3FAVL1-AU-B |
| Series | AC Series XLR PCB Chassis Mount Connector (A Type) |
| Number of Contacts | 3 |
| Gender | Female (socket contacts) |
| Mounting Type | Chassis / panel mount |
| Termination | Vertical printed circuit board (PCB) |
| Locking Mechanism | Latchless |
| Ground Link | Pin 1 to chassis |
| Finish | Black |
| Comparable Part No. | NC3FAV1-0, NC3FAAV1-0 |
| Flammability Rating of Plastics | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Characteristics | |
| Service Voltage RMS | 133 V (not suitable for domestic applications above 50 V) |
| Test Voltage AC RMS | 1500 V |
| Current Carrying Capacity | 6 A |
| Typical Contact Resistance | 5 mΩ |
| Insulation Resistance (initial) | 2 GΩ |
| Insulation Resistance (after damp heat test) | 1 GΩ |
| Climatic Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Mechanical Characteristics | |
| Weight | 14 g (0.030 lb) — approximate, excluding packaging |
| Retention Spring Separating Force | 20 N |
| Mounting Screw Torque Max. | 1.5 Nm |
| Mechanical Operations | 1500 mating cycles |
| Fastening (A Type) | Self-tapping PT screw with thread 2.9 × 1.06 and of tri-rondular configuration |
| Materials | |
| Insulators | PA6.6 + 25% glass fibre reinforced, UL94V-0 |
| Female Contact Material | Bronze |
| Female Contact Plating | 0.05 µm gold over 2 µm nickel |
| Ground Element | Spring steel |
| Applications | |
| Typical Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications |
