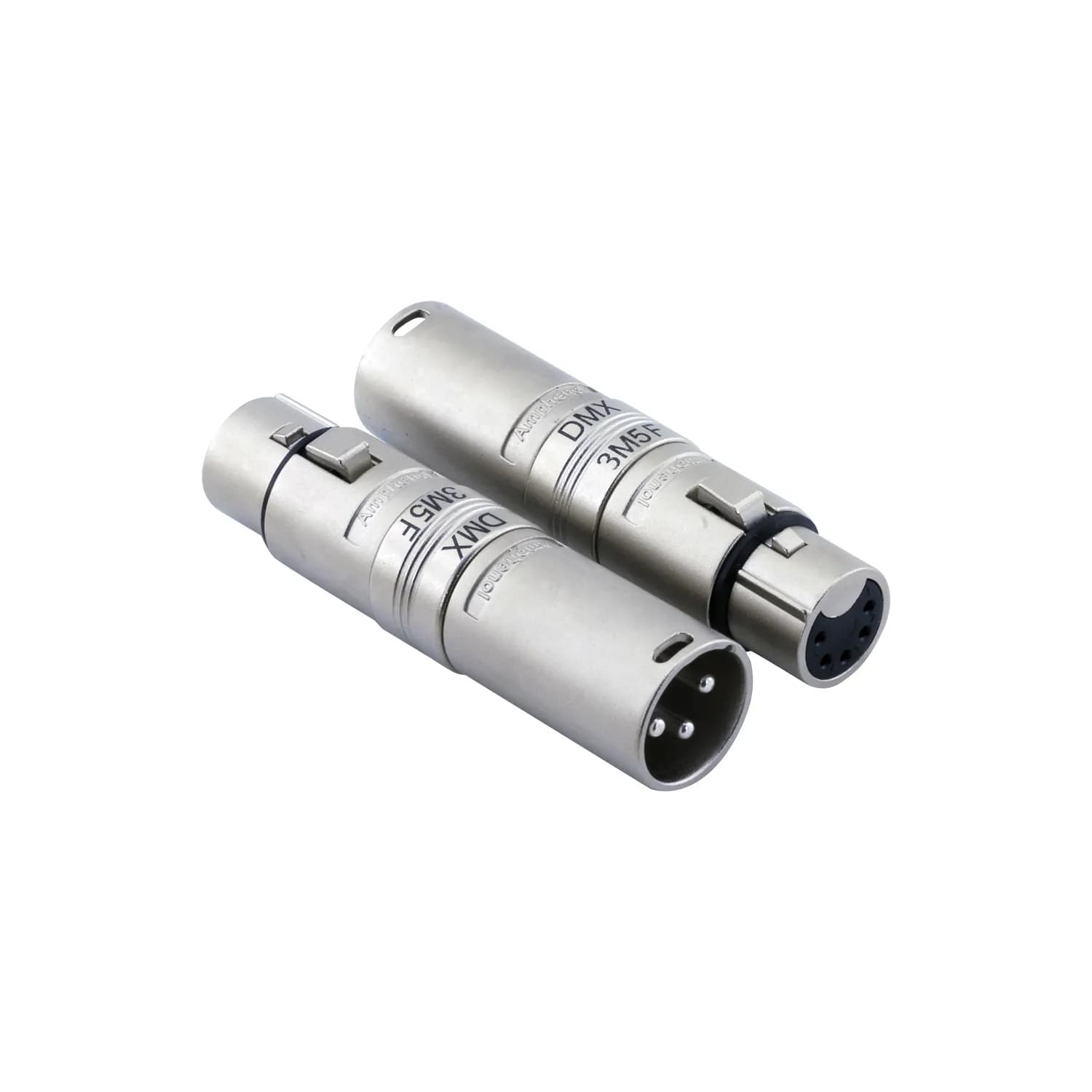

Stock Code: AC3M5FW
| General Characteristics | |
|---|---|
| Number of Contacts | 3 / 4 / 5 / 6A / 7 |
| AC Series Contact Arrangements (front view of pin inserts) | Contact arrangement for 3 / 4 / 5 / 6A / 7 pins |
| Termination | Solder |
| Max. Wire Gauge (stranded wire, solder) | 14 AWG / 16 AWG / 18 AWG / 20 AWG |
| Flammability Rating (insulator plastics and housings) | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Characteristics | |
| Service Voltage RMS | 133 V 1 |
| Test Voltage AC RMS | 1400 V |
| Current Carrying Capacity (solder) | 15 A / 10 A / 7.5 A / 5 A |
| Typical Contact Resistance | ≤3 mΩ |
| Insulation Resistance | ≥1 GΩ |
| Climatic Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Mechanical Characteristics | |
| Insertion and Withdrawal Force | ≥10 N – ≤30 N |
| Weight - Metal 2 | 36 g (0.080 lb) / 37 g (0.081 lb) / 38 g (0.083 lb) |
| Weight - Thermoplastic 2 | 18 g (0.039 lb) / 19 g (0.041 lb) / 20 g (0.044 lb) |
| Typical Cable Retention Force | 22 Kg to 44 Kg (50 lb to 100 lb) - Dependent on cable material and diameter. |
| Cable O.D. Range - JAWS Clamp (Standard) | 3 mm to 6.5 mm (0.118” to 0.255”) |
| Cable O.D. Range - JAWS Clamp (Large) | 6.5 mm to 8 mm (0.255” to 0.314”) |
| Mechanical Operations | 1000 mating cycles |
| Materials | |
| Connector Shell - Metal Shell Finish | Diecast Zinc Alloy, Satin nickel or Black polyester |
| Connector Shell - Thermoplastic Shell Finish | Thermoplastic, UL94V-0 Modified PPE Resin, Black |
| Insulators | UL94V-0 PBT Resin or Modified PPE Resin |
| Boot / Backshell Finish | UL94V-0 Modified PPE Resin or Machined Brass, Black; other colours available. |
| Cable Clamp (JAWS) | UL94V-0 Modified PPO Resin (Black) |
