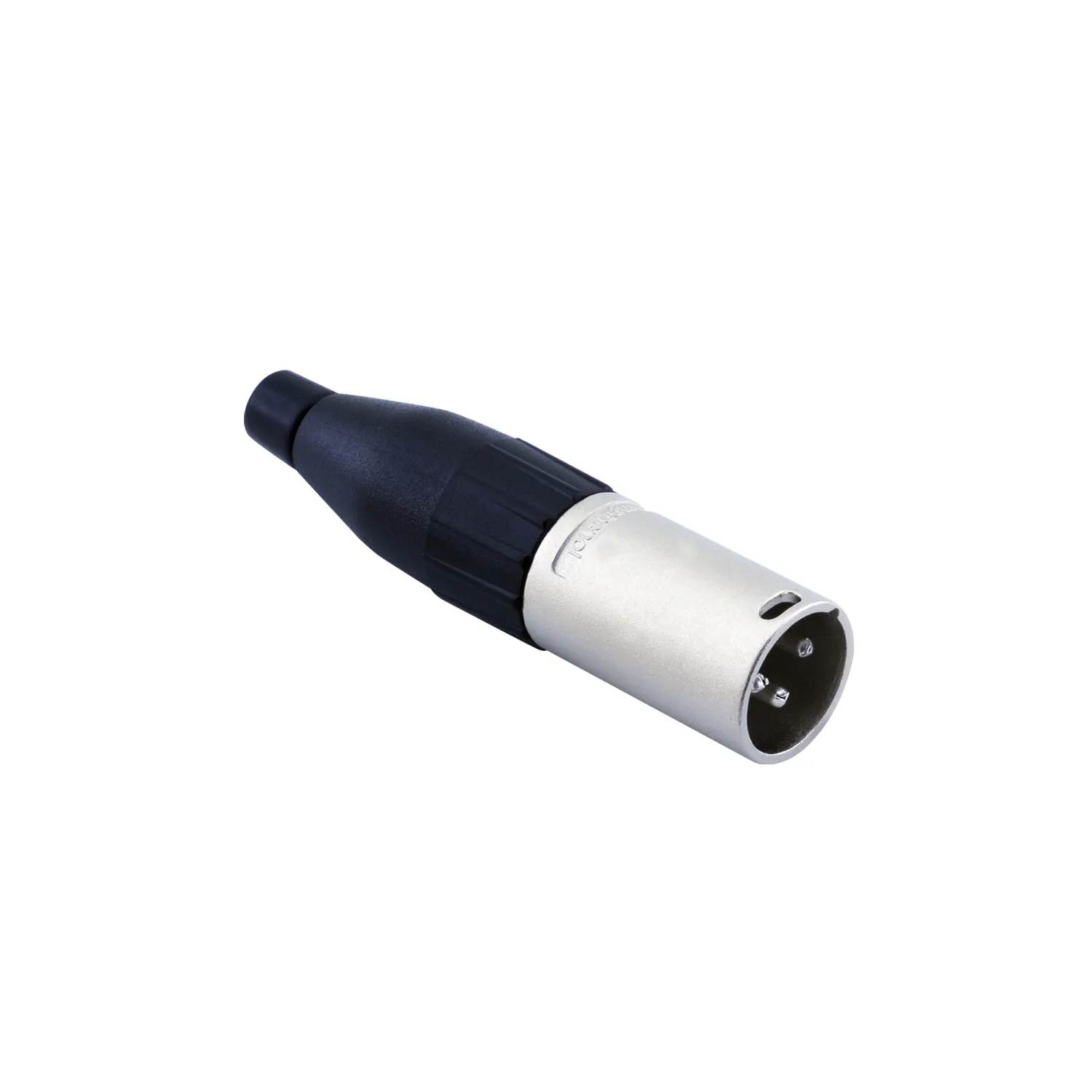

| General Characteristics |
| Number of Contacts |
|
| AC Series Contact Arrangements (front view of pin inserts) |
|
| Termination |
Solder |
| Max. Wire Gauge – Stranded wire: Solder |
|
| Flammability Rating (insulator plastics & housings) |
UL94V-0 |
| Environmental |
Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Characteristics |
| Service Voltage (RMS) |
133V 1 |
| Test Voltage (AC RMS) |
1400V |
| Current Carrying Capacity: Solder |
|
| Typical Contact Resistance |
≤3mΩ |
| Insulation Resistance |
≥1GΩ |
| Climatic Characteristics |
| Protection Class |
IP40 |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Mechanical Characteristics |
| Insertion and Withdrawal Force |
≥10N ~ ≤30N |
| Weight – Metal 2 |
| 36g (0.080lb) | 37g (0.081lb) | 38g (0.083lb) |
|
| Weight – Thermoplastic 2 |
| 18g (0.039lb) | 19g (0.041lb) | 20g (0.044lb) |
|
| Typical Cable Retention Force |
22 kg ~ 44 kg (50lb ~ 100lb) – Dependent on cable material and diameter. |
| Cable O.D. Range – JAWS Clamp (Standard) |
3mm ~ 6.5mm (0.118″ ~ 0.255″) |
| Cable O.D. Range – JAWS Clamp (Large) |
6.5mm ~ 8mm (0.255″ ~ 0.314″) |
| Mechanical Operations |
1000 mating cycles |
| Materials |
| Connector Shell – Metal Shell Finish |
Diecast Zinc Alloy; Satin Nickel or Black Polyester |
| Connector Shell – Thermoplastic Shell Finish |
Thermoplastic, UL94V-0 Modified PPE Resin; Black |
| Insulators |
UL94V-0 PBT Resin or Modified PPE Resin |
| Boot / Backshell Finish |
UL94V-0 Modified PPE Resin or Machined Brass; Black, other colours available – see page 134 |
| Cable Clamp (JAWS) |
UL94V-0 Modified PPO Resin (Black) |
