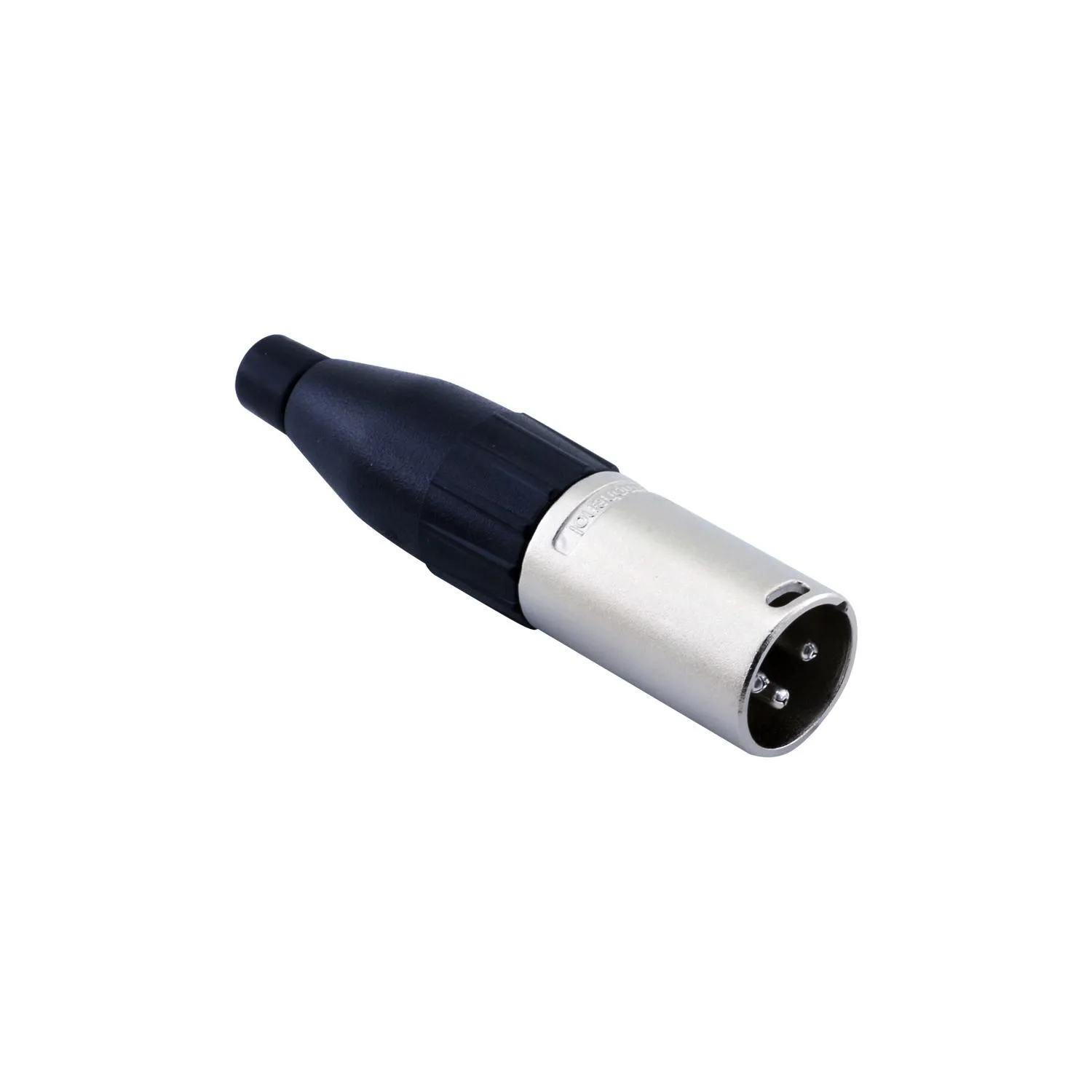

Stock Code: AC3MI
| General Features | |
|---|---|
| Number of Contacts | 3 / 4 / 5 / 6A / 7 |
| AC Series Contact Arrangements (Front View of Pin Inserts) |      |
| Termination | IDC / Solder |
| Max. Wire Gauge – Stranded wire: IDC | 24AWG |
| Max. Wire Gauge – Stranded wire: Solder | 14AWG / 16AWG / 18AWG / 20AWG |
| Flammability Rating of Insulator Plastics and Housings | UL94V-0 |
| Environmental | Complies with RoHS Directive 2002/95/EC |
| Electrical Characteristics | |
| Service Voltage RMS | 133V 1) |
| Test Voltage AC RMS | 1400V |
| Current Carrying Capacity: IDC | N/A |
| Current Carrying Capacity: Solder | 15A / 10A / 7.5A / 7.5A / 5A |
| Typical Contact Resistance | ≤3mΩ |
| Insulation Resistance | ≥1GΩ |
| Climatic Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Mechanical Characteristics | |
| Insertion and Withdrawal Force | 10N – 30N |
| Weight – Metal 2) | 36g (0.080lb) / 37g (0.081lb) / 38g (0.083lb) |
| Weight – Thermoplastic 2) | 18g (0.039lb) / 19g (0.041lb) / 20g (0.044lb) |
| Typical Cable Retention Force | 22Kg to 44Kg (50lb to 100lb) – Dependent on cable material and diameter. |
| Cable O.D. Range – JAWS clamp: IDC | Max. Cable O.D. 5.85mm (0.23”) |
| Cable O.D. Range – JAWS clamp: Standard Solder | 3mm to 6.5mm (0.118” to 0.255”) |
| Cable O.D. Range – JAWS clamp: Large Solder | 6.5mm to 8mm (0.255” to 0.314”) |
| Mechanical Operations | 1000 mating cycles |
| Materials | |
| Connector Shell – Metal | Diecast Zinc Alloy |
| Shell Finish | Satin nickel or Black polyester |
| Connector Shell – Thermoplastic | Thermoplastic, UL94V-0 Modified PPE Resin (Black) |
| Shell Finish (Thermoplastic) | UL94V-0 PBT Resin or Modified PPE Resin |
| Insulators | UL94V-0 Modified PPE Resin or Machined Brass, Black |
| Boot / Backshell | UL94V-0 Modified PPO Resin |
| Cable Clamp (JAWS) | Thermoplastic Polyurethane |
