Stock Code: AC3MAV1-AU-B
| General Characteristics | |
|---|---|
| Part Number | AC3MAV1-AU-B |

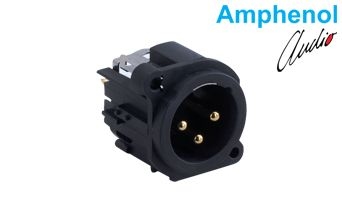

| Product Type | 3 contact XLR male chassis connector, vertical PCB mount |
| Series / Type | AC Series, A Type |
| Number of Contacts | 3 |
| Gender | Male (pin contacts) |
| Termination | Printed circuit board (PCB), vertical mount |
| Ground Link | Option 1: Pin 1 to chassis to mating connector shell |
| Locking Mechanism | Latching (latch lock) |
| Flammability Rating (Plastics) | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Packaging | Bulk packed |
| Electrical Characteristics | |
| Service Voltage (RMS) | 133 V (not suitable for domestic applications above 50 V) |
| Test Voltage (AC RMS) | 1500 V |
| Current Carrying Capacity | 6 A |
| Typical Contact Resistance | 5 mΩ |
| Climatic Characteristics | |
| Insulation Resistance (initial) | 2 GΩ |
| Insulation Resistance (after damp heat test) | 1 GΩ |
| Mechanical Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Weight | 14 g (0.030 lb) |
| Retention Spring Separating Force | 20 N |
| Mounting Screw Torque (max.) | 1.5 Nm |
| Mechanical Operations | 1500 mating cycles |
| Fastening Screw (A Type) | Self-tapping PT screw with 2.9 x 1.06 thread, Tri-rondular configuration |
| Materials | |
| Shell | Thermoplastic |
| Insulators | PA6.6 + 25% glass fibre reinforced, UL94V-0 |
| Male Contact Material | Brass |
| Male Contact Plating | Gold over nickel |
| Latch Lock and Spring | Spring steel |
| Ground Element | Spring steel |
| Applications | |
| Typical Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications |
