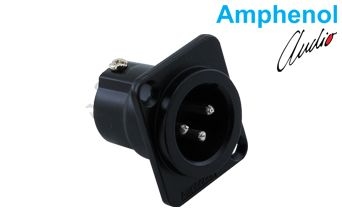

Name: 3 Pin XLR Male Chassis Connector - Black
Brand: Amphenol
SKU: AC3MMDZB

Brings a 3-contact XLR male connection to the panel in black

This Audio AC series panel mount connector builds a 3 pole XLR male connection on the device panel. The black finished housing works at a 15 A rated current in a 40 °C ambient and a 133 V rated voltage on the panel side of broadcast and stage equipment.

3Pin count

MalePlug type

15 ARated current

133 VRated voltage

-25 °C ~ +75 °COperating temperature

Key features

Contact configurationThe 3 pole male contact arrangement receives the XLR audio line on the panel.

Mounting and terminationThe chassis (panel) mount body sits on the surface of the equipment case.

Housing and finishThe housing carries a black finish, and the dark surface leaves a discreet look on the panel.

Usage areas

Radio and TV broadcasting · Professional studios · Sound reinforcement and PA · Musicians and DJs · Special applications

General Characteristics

Part Number

AC3MMDZB

Description

Audio AC-Series Panel Mount Connector; 3 Pole

Part Category

Panel mount connector

Gender

Male

Number of Positions (w/o PE)

Color

Black

Electrical Characteristics

Rated Voltage

133 V

Rated Current (40°C)

15 A

Environmental Conditions

Operating Temperature

-25°C ~ +75°C

Applications

Fields of Use

Radio and TV Broadcasting
Professional Studios
Sound Reinforcement & PA
Musicians and DJs
Special Applications
