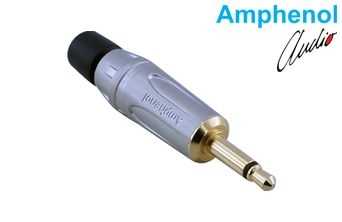

A mono jack plug soldered to the cable end. Its die-cast metal shell is nickel-plated and its contacts are gold-plated; it is used for single-channel audio lines in broadcast and stage setups.
Shell and finishThe die-cast metal shell is nickel-plated, and a clear PVC tube insulates the solder terminals.
Contact platingThe tip, ring, and sleeve contacts are all gold-plated.
DimensionsThe plug diameter is Ø3.5 mm, the body diameter is Ø10.3 mm, and the overall length is 50 mm.
Series variantsThe same series includes the nickel-shell KM2P and KM2P-AU plus the black-shell KM2PB and KM2PB-AU.
ComplianceThe product complies with RoHS 2002/95/EC.
