Adds a stereo 3.5 mm jack input to the panel and the circuit board

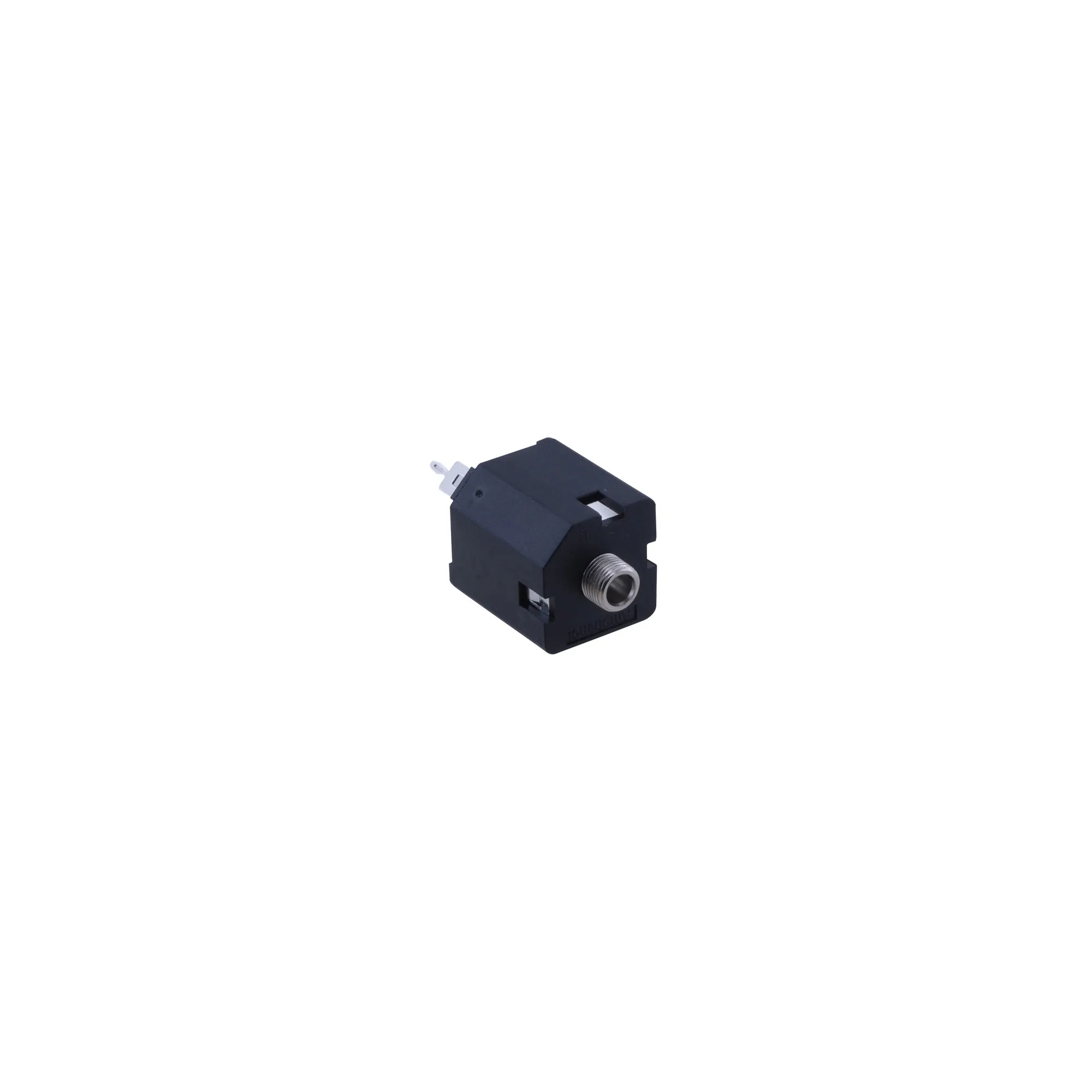

A vertical-body stereo jack socket that solders to the circuit board and fastens to the panel. With its black finish and 3-pole tip-ring-sleeve contact layout, it serves as an input and an output on professional audio equipment.

3.5 mmjack size

Stereoaudio channel

Femaleplug type

3number of contacts

IP40protection grade

Vertical PCBmounting type

Key features

Contact layoutIt uses a 3-pole tip-ring-sleeve (TRS) contact layout, with tin-over-brass contacts.

TerminationSolder, PCB, or combo options are available; solderability complies with IEC 68-2-20.

Electrical ratingsA 10 A current carrying capacity, 34 V rated voltage, and 500 V AC RMS dielectric withstanding; typical contact resistance sits at ≤10 mΩ.

Mechanical enduranceInsertion and withdrawal force runs from ≥10 N to ≤30 N, and it is designed for at least 10,000 mating cycles.

MaterialsThe connector housing is 30% glass-filled PA66 nylon and the metal nut is brass; the flammability rating is UL94V-0.

Operating conditionsIt works at an IP40 protection grade over a -25°C to +70°C operating temperature range.

Application areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA·Musicians and DJs

Current carrying capacity varies with the mating connector and cable. The product complies with EU RoHS 2 Directive 2011/65/EU.

General Specifications

Number of Contacts

2 Pole (Mono) / 3 Pole Tip Ring Sleeve (Stereo)

Termination

Solder, PCB or Combo

Flammability rating of insulating plastics

UL94V-0

Solderability, complies with

IEC 68-2-20

Environmental

Complies with EU RoHS 2 Directive 2011/65/EU

Electrical Specifications

Current Carrying Capacity

10A (Depending on Mating Connector and Cable)

Typical Contact Resistance

≤10mΩ

Insulation Resistance (initial)
After Damp Heat Test

>2GΩ
≥10³ Meg Ω

Rated Voltage
Test Voltage AC RMS: Dielectric Withstanding

34V
500V

Climatic Specifications

Ingress Protection

IP40

Operating Temperature

-25°C to +70°C (-13°F to +158°F)

Mechanical Specifications

Insertion and Withdrawal Force

≥10N - ≤30N

Mating Cycles

Minimum of 10,000 cycles

Weight
- Straight
- Right Angle

18g (0.039lb)
25g (0.055lb)

Materials

Connector Housing

Nylon PA66 30% Glass Filled

Metal Nut

Brass

Plastic Nut

Nylon PA66 30% Glass Filled

Washer

Fiber / Brass / Nylon PA66 30% Glass Filled

Contact Plating

Tin - 4µm Min. over 2µm Min. Cu (Copper)
Silver - 0.3µm Min. over 2µm Min. Cu (Copper)
Nickel - 2µm Min. over 2µm Min. Cu (Copper)
Gold Flash - 0.05µm Min. over 2µm Min. Cu (Copper)

Contacts

Brass / Sn (Tin) over Cu (Copper)
