Connector Plastic Plug Str Cord 4 Pin

Name: Connector Plastic Plug Str Cord 4 Pin
Brand: Amphenol
SKU: AP-4-12

Stock Code: AP-4-12

2 options

Pin Count4 Pin2

Currently viewing: AP-4-12 · 4 Pin

Terminates the loudspeaker cable in line

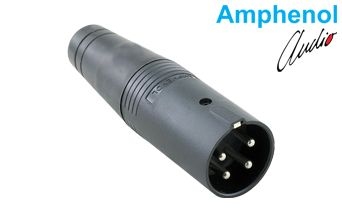

A 4-pole male loudspeaker cable connector for audio and lighting systems. It hangs free on the cable and takes the wire ends into solder cups.

4 pinNumber of contacts

MaleGender

Free hanging (in-line)Mounting type

20 ACurrent rating

IP40Protection grade

Key features

Current capacityCarries 20 A and accepts wire up to 12 AWG.

Cable openingTakes cables between 11.00 mm and 17.00 mm.

Operating temperatureWorks across the -25 °C to +75 °C range.

DurabilityWithstands 1000 mating cycles, and the housing carries a UL94 V-0 flammability rating.

MaterialsThe modified PPE housing and PBT insert carry tin-plated brass contacts.

General Specifications
Product Series	LoudspeakerSeries™ AP
Part Number	AP-4-12
Product Type	4-Pole Male Loudspeaker Cable Connector (Straight, Cord)
No. of Positions	4
Gender	Male
Contact Type	Machined
Termination	Solder Cup
Mounting Type	Free Hanging (In-Line)
Fastening Type	Latch Holder
Shielding	Unshielded
Application	Audio
Finish / Colour	Black
Materials
Housing Material	Modified PPE Resin (Polyphenylene Ether)
Insert Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass
Contact Plating	Tin
Flammability Rating	UL94 V-0
Electrical and Mechanical Specifications
Current Carrying Capacity	20 A
Max. Wire Gauge	12 AWG
Cable Opening	11.00 mm ~ 17.00 mm (0.433" ~ 0.669")
Mating Cycle Durability	1000
Environmental and Compliance
Operating Temperature	-25°C ~ +75°C (-13°F ~ +167°F)
Ingress Protection	IP40
Environmental	Complies with EU RoHS 2 Directive 2011/65/EU
