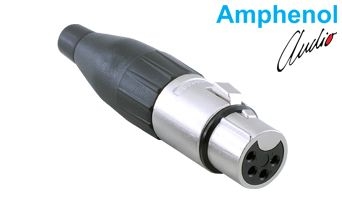

Turns a cable end into a 4 pole XLR female connection.
This nickel plated zinc alloy cable type XLR female connector terminates microphone, speaker and stage lines with machined silver contacts. A 10 A current capacity and 133 V service voltage carry the load of professional audio lines.
4Pin Count
FemalePlug Type
10 ACurrent Carrying Capacity
133 VService Voltage
IP40Protection Grade
-25°C ~ +75°COperating Temperature
Key features
Machined contactsMachined silver plated contacts stay at a typical contact resistance of 3 mΩ.
Solder terminationThe solder end accepts wire up to 16 AWG.
Zinc alloy housingThe diecast zinc alloy housing with nickel finish stands up to stage use.
1000 mating cyclesContact pressure holds after repeated mating and unmating.
IP40 and UL94V-0IP40 protects against solid objects and the housing carries a UL94V-0 flammability rating.
The 133 V service voltage is not suitable for domestic applications above 50 V.
