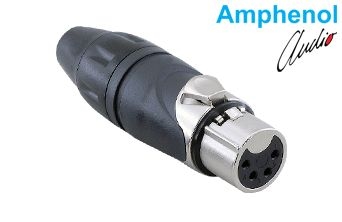

Stock Code: AX4F
| General | |
|---|---|
| Brand | Amphenol |
| Product Code | AX4F |
| Connector Type | 4-pin XLR, female (socket) |
| Applications | |
| Areas of Use | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; custom applications |
| Design and Construction Features | |
| Body Design | Unique Australian design; smooth outer surface |
| Grounding and EMI Performance | One-piece grounded/latching spring design; grounds the mating connector for improved connection and EMI performance |
| Grip Sleeve | Ergonomic design for improved grip |
| Channel Identity | Available with coloured sleeve options |
| Latch | Large ergonomic latch; fast and easy mating |
| Latching Point | Concealed design; improved aesthetics, insulation and durability |
| Socket Plating | Lead plating from the mating point to the exit point on socket connectors |
| Cable Clamp | Chuck-style cable clamp; integrated disassembly after soldering |
| Cable Outer Diameter (O.D.) | 3 mm – 8 mm (0.118" – 0.314") |
| Outer Shell | Flexible and bendable overmoulded outer shell; improved aesthetics, cable protection and sealing |
| Socket Connection | Concentric socket connection for optimum contact resistance |
| Pin Connection | High-precision pin connection standard |
| Solder Cups | Compact solder cups; saves time and material during soldering |
| Shell Material | Zinc die-cast shell for robustness |
| Plating | Satin nickel or black |
