Stock Code: AC4FB
| General Specifications | |
|---|---|
| Part Number | AC4FB |

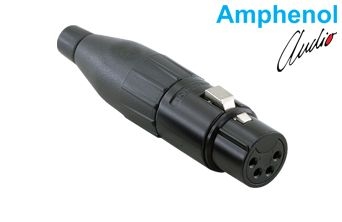

| Description | 4 Pole XLR Female Cable Connector, Machined Contacts, Black Finish |
| Comparable Part No. | NC4FX-BAG, A4FB |
| No. of Positions | 4 |
| Gender | Female |
| Finish | Black |
| Contact Specifications | |
| Contact Type | Machined |
| Contact Plating | Silver |
| Termination | Solder |
| Max. Wire Gauge | 16 AWG |
| Typical Contact Resistance | < 3 mΩ |
| Mating Cycle Durability | 1000 |
| Electrical Specifications | |
| Current Carrying Capacity | 10 A |
| Service Voltage RMS | 133 V (not suitable for domestic applications above 50 V) |
| Test Voltage AC RMS | 1400 V |
| Insulation Resistance | < 1 GΩ |
| Mechanical and Material | |
| Housing Material | Diecast Zinc Alloy |
| IP Rating | IP40 |
| Flammability Rating | UL94V-0 |
| Environmental | |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Environmental Compliance | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Typical Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications |
