Stock Code: AC4FDZ
| General Information | |
|---|---|
| Part Number | AC4FDZ |

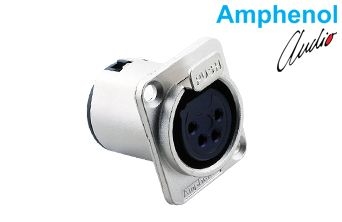

| Description | 4 Pole XLR Female Chassis Mount Connector, D Type, Machined Contacts, Vertical PCB, Nickel Finish |
| Comparable Part No. | NC4FD-L-1 |
| Applications | Radio and TV Broadcasting Professional Studios Sound Reinforcement & PA Musicians and DJs Special Applications |
| Mechanical Specifications | |
| No. of Positions | 4 |
| Gender | Female |
| Contact Type | Machined |
| Contact Plating | Silver |
| Finish | Nickel |
| Housing Material | Diecast Zinc Alloy |
| Termination | Solder Bucket |
| Max. Wire Gauge | 16 AWG |
| Mating Cycle Durability | 1000 |
| Electrical Specifications | |
| Current Carrying Capacity | 10 A |
| Service Voltage RMS | 133 V (Not suitable for domestic applications above 50 V) |
| Test Voltage AC RMS | 1400 V |
| Typical Contact Resistance | < 3 mΩ |
| Insulation Resistance | > 100 mΩ |
| Environmental Specifications and Standards | |
| IP Rating | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
