    5. 4 Pin XLR Female Chassis Connektor - Black

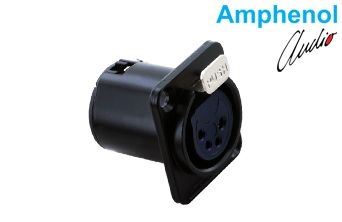

    4 Pin XLR Female Chassis Connektor - Black
    Amphenol

    4 Pin XLR Female Chassis Connektor - Black

    Stock Code: AC4FDZB

    Options

    6 options
    ColorBlack2
    Pin Count4 Pin4
    Currently viewing: AC4FDZB · Black · 4 Pin
    Creates a 4-pole audio connection that suits black panels.
    This black finished D type chassis connector carries a female XLR link onto an equipment panel. A diecast zinc alloy shell and machined silver contacts take the load of studio and stage work. The black finish keeps the same look as dark colored panels.
    4Pin Count
    FemalePlug Type
    10 ACurrent carrying capacity
    SilverContact plating
    IP40Protection Grade
    -25°C ~ +75°COperating Temperature
    Key features
    Machined contactsSilver plated machined contacts hold the connection through 1000 mating cycles.
    Measured flangeThe 26.0 × 24.0 mm flange, Ø24.0 mm panel hole and 18.9 mm hole spacing fit the standard cut-out.
    Black metal shellThe black finished diecast zinc alloy shell resists impact and wear.
    Solder bucket terminationIt accepts wire up to 16 AWG.
    Electrical enduranceA 1400 V test voltage and 3 mΩ typical contact resistance keep signal loss low.
    The 133 V service voltage is not suitable for domestic applications above 50 V.
    General Specifications
    Part NumberAC4FDZB
    Product Type4-pole XLR female chassis (panel mount) connector, D type
    No. of Positions4
    GenderFemale
    Finish / ColourBlack
    Comparable Part No.NC4FD-L-1-BAG
    Electrical Specifications
    Current Carrying Capacity10 A
    Service Voltage (RMS)133 V (not suitable for domestic applications above 50 V)
    Test Voltage (AC RMS)1400 V
    Typical Contact Resistance< 3 mΩ
    Insulation Resistance> 100 mΩ
    Mechanical Specifications
    Contact TypeMachined
    Contact PlatingSilver
    TerminationSolder Bucket
    Max. Wire Gauge16 AWG
    Housing MaterialDiecast Zinc Alloy
    Mating Cycle Durability1000
    Environmental & Standards
    IP RatingIP40
    Operating Temperature-25°C ~ +75°C (-13°F ~ +167°F)
    Flammability RatingUL94V-0
    Environmental ComplianceComplies with EU RoHS 2 Directive 2011/65/EU
    Dimensions (mm [inch])
    Flange Dimensions (W×H)26.0 [1.02"] × 24.0 [.94"]
    Overall Height31.0 [1.22"]
    Overall Depth33.1 [1.30"]
    Flange Thickness3.0 [.12"]
    Panel Cut-out — Hole DiameterØ24.0 [Ø.94"]
    Panel Cut-out — Mounting Holes2 × Ø3.30 [Ø.13"]
    Panel Cut-out — Hole Centre Spacing18.9 [.75"] × 24.0 [.94"]
    Applications
    Typical ApplicationsRadio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications
