    1. ›
    2. Audio and Video Products›
    3. Audio›
    4. XLR Connectors›
    5. Connector Metal Plastic Panel Mount 4 SKt

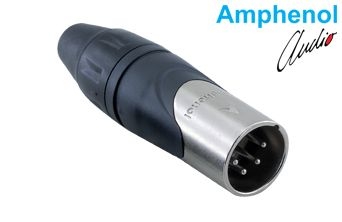

    Connector Metal Plastic Panel Mount 4 SKt
    Amphenol

    Connector Metal Plastic Panel Mount 4 SKt

    Stock Code: AX4M

    Options

    8 options
    ColorStandard2
    Pin Count4 Pin5
    Currently viewing: AX4M · Standard · 4 Pin
    Turns a cable end into a latching 4 pin XLR male connection.
    This overmolded cable connector terminates four lines on the pin side and grounds the mating connector through a one-piece latch spring. The smooth outer surface and large latch suit stage lines that get connected and disconnected often.
    4Pin Count
    MalePlug Type
    3 mm – 8 mmCable Outer Diameter
    NickelShell Finish
    Zinc die-castCasing Material
    Key features
    Grounded latch springThe one-piece latch spring grounds the mating connector and improves EMI performance.
    Chuck style cable clampThe clamp grips cable of 3 mm – 8 mm outer diameter and reopens the connector after soldering.
    High precision pin connectionMates tightly with standard XLR sockets.
    Concealed latching pointThe concealed latch protects insulation and durability and leaves the outer surface smooth.
    Flexible overmolded shellThe overmolded outer shell protects the cable at the bend point and keeps the body sealed.
    Ergonomic sleeveA large latch and ergonomic sleeve speed up mating, while colored sleeve options separate channels.
    General
    BrandAmphenol
    Part NumberAX4M
    Number of Contacts4
    ApplicationsRadio and TV broadcasting
    Professional studios
    Sound reinforcement & PA
    Musicians and DJs
    Special applications
    Design and Construction Features
    DesignSmooth outer surface with unique Australian design
    Grounding / EMIOne-piece grounded latch spring design; grounds the mating connector for improved connection and EMI performance
    SleeveErgonomic sleeve for improved grip
    Channel IdentityChannel identity through coloured sleeve options
    LatchLarge ergonomic latch for fast and easy mating
    Plating (Socket Connectors)Lead plating from the mating point to the exit point on socket connectors
    Cable ClampChuck-style cable clamp supporting 3 mm – 8 mm (0.118'' – 0.314'') cable O.D.; integrated separability after soldering
    Latching PointConcealed latching point providing improved aesthetics, insulation and durability
    Outer ShellFlexible and bendable overmoulded outer shell for improved aesthetics, cable protection and sealing
    Socket ConnectionConcentric socket connection for optimum contact resistance
    Pin ConnectionHigh-precision pin connection standard
    Solder CupsCompact solder cups save time and material during soldering
    Shell / FinishZinc die-cast shell for robustness; satin nickel or black finish
