Stock Code: AC4MDZB
| General Specifications | |
|---|---|
| Part Number | AC4MDZB |

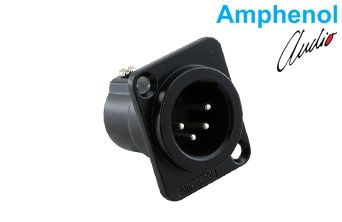

| Description | 4 pole XLR male chassis (panel) mount connector, D type, stamped contacts, solder bucket, black |
| No. of Positions | 4 |
| Gender | Male |
| Mount Type | Chassis / panel mount (D type) |
| Comparable Part No. | NC4MD-L-1-BAG, 719-0400 |
| Electrical Specifications | |
| Current Carrying Capacity | 10 A |
| Contact Type | Stamped |
| Termination | Solder Bucket |
| Max. Wire Gauge | 16 AWG |
| Mating Cycle Durability | 1000 |
| Mechanical Specifications | |
| Housing Material | Diecast Zinc Alloy |
| Finish | Nickel |
| Housing Colour | Black |
| Flange Dimensions (W×H) | 26.0 × 31.0 mm (1.02" × 1.22") |
| Flange Thickness | 3.0 mm (0.12") |
| Overall Length | 32.1 mm (1.26") |
| Mounting Hole Spacing | 19.0 × 24.0 mm (0.75" × 0.94") |
| Mounting Hole Diameter | 2 × Ø3.30 mm (Ø0.13") |
| Panel Cut-out Diameter | Ø24.0 mm (Ø0.94") |
| Environmental & Standards | |
| Ingress Protection | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental Compliance | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications |
