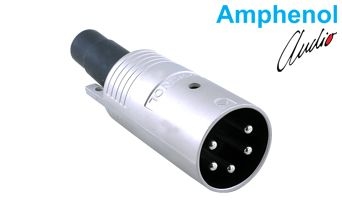

Name: Connector Metal Plug Str 5 Pin
Brand: Amphenol
SKU: EP-5-12

Terminates loudspeaker cable with a five-pole metal male connector.

A metal male connector that enters the end of loudspeaker cable and terminates the line in professional sound systems. Machined contacts take wire up to 12 AWG with a solder joint, and the diecast zinc alloy housing carries the connection.

5number of poles

20 Acurrent carrying capacity

12 AWGmax. wire gauge

IP40protection grade

1000mating cycles

Key features

Contacts and terminationMachined contacts take wire up to 12 AWG with a solder joint.

HousingThe diecast zinc alloy housing carries a nickel finish.

DurabilityIt withstands 1000 mating cycles of plugging and unplugging.

EnvironmentIt works between -25°C and +75°C and carries IP40 protection.

ComplianceIt meets the UL94V-0 flammability rating and complies with EU RoHS 2 Directive 2011/65/EU.

General

Product Type

5 Pole Male Metal Loudspeaker Cable Connector

Part Number

EP-5-12

No. of Positions

Electrical

Current Carrying Capacity

20 A

Max. Wire Gauge

12 AWG

Termination

Solder

Mechanical

Contact Type

Machined

Housing Material

Diecast Zinc Alloy

Finish

Nickel

Mating Cycle Durability

1000

Environmental

IP Rating

IP40

Operating Temperature

-25°C ~ +75°C (-13°F ~ +167°F)

Flammability Rating

UL94V-0

Environmental Compliance

Complies with EU RoHS 2 Directive 2011/65/EU

Applications

Typical Applications

Radio and TV broadcasting; professional studios; sound reinforcement & PA systems; musicians and DJs; special applications
