Opens a five-contact Mini XLR input on the panel.

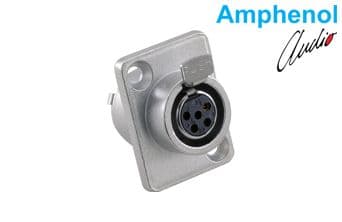

A Mini XLR G Type chassis connector that carries a 5-contact audio and signal input on equipment panels. With printed circuit board (PCB) or solder bucket termination it fits studio devices, stage equipment and broadcast hardware.
5Pin Count
FemaleGender
Chassis connectorProduct Type
4 ARated Current
50 VRated Voltage
Key features
Connector TypeUses the Mini XLR G Type interface on the panel side.
PlatingA nickel plated diecast shell seats against the panel.
Contact TypeStamped contacts carry the signal.
Mounting and TerminationFits panel mounting and uses printed circuit board (PCB) or solder bucket termination.
Max. Wire GaugeAccepts conductors up to 24 AWG - 0.5 mm².
Operating TemperatureWorks across the -30°C ~ +80°C range.
In the mated condition the Protection Grade is IP00, so the connector suits protected indoor use. The product complies with EU RoHS 2 Directive 2011/65/EU.
