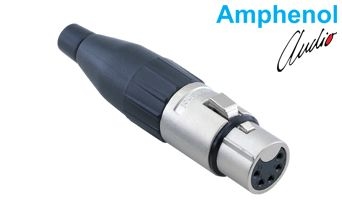

A female XLR connection that terminates a 5 contact audio line at the cable end
A 5 pole female XLR cable connector with a diecast zinc housing and nickel finish. The machined silver contacts carry 7.5 A, and the JAWS clamp grips cable outside diameters from 3 mm to 6.5 mm.
5Pin Count
FemaleGender
7.5 ACurrent Carrying Capacity
IP40Protection Grade
-25°C to +75°COperating Temperature
NickelFinish
Key features
Machined silver contactsThe machined contacts carry 7.5 A and keep typical contact resistance below 3 mΩ.
JAWS cable clampThe clamp grips cable from 3 mm to 6.5 mm outside diameter and keeps pull forces away from the contacts.
Diecast zinc housingThe satin nickel plated diecast zinc housing takes the knocks of stage use.
IP40 protection and -25°C to +75°C rangeThe connector is IP40 rated and works between -25°C and +75°C.
1000 mating cyclesThe contacts withstand 1000 insertion and withdrawal cycles.
18 AWG solder terminationThe solder end accepts stranded conductors up to 18 AWG.
The service voltage is 133 V RMS; it is not suitable for domestic applications above 50 V.
