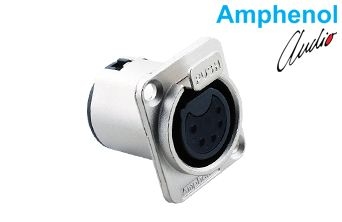

A female XLR chassis connection that brings a 5 contact audio line out through the panel
A D type 5 pole female XLR chassis connector for rack panels and enclosure faces. The diecast zinc housing carries a nickel finish, and the machined silver contacts carry 7.5 A.
5Pin Count
FemaleGender
7.5 ACurrent Carrying Capacity
IP40Protection Grade
-25°C to +75°COperating Temperature
NickelFinish
Key features
Machined silver contactsThe machined contacts carry 7.5 A and show a typical contact resistance of 3 mΩ.
D type chassis mountThe D type flange seats in a standard panel cut-out, and the solder bucket accepts wire up to 18 AWG.
IP40 protection and -25°C to +75°C rangeThe connector is IP40 rated and works between -25°C and +75°C.
1000 mating cyclesThe contacts withstand 1000 insertion and withdrawal cycles.
UL94V-0 and RoHS 2The housing carries a UL94V-0 flammability rating, and the product complies with the EU RoHS 2 directive.
The service voltage is 133 V RMS; it is not suitable for domestic applications above 50 V.
