Stock Code: AC5FDZB
| General Specifications | |
|---|---|
| Part Number | AC5FDZB |

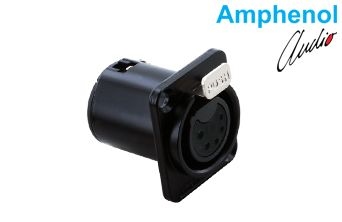

| Product Description | 5 pole XLR female chassis (panel) mount connector, D type, machined contacts, solder bucket, black finish |
| No. of Positions | 5 |
| Gender | Female |
| Mount Type | Chassis (panel) mount, D type |
| Comparable Part Number | NC5FD-L-1-BAG |
| Electrical Specifications | |
| Current Carrying Capacity | 7.5 A |
| Contact Type | Machined |
| Termination | Solder Bucket |
| Max. Wire Gauge | 18 AWG |
| Mating Cycle Durability | 1000 |
| Mechanical Specifications and Material | |
| Housing Material | Diecast Zinc Alloy |
| Finish / Colour | Black |
| Flammability Rating | UL94V-0 |
| Environmental Specifications | |
| Ingress Protection (IP) | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Environmental Compliance | Complies with EU RoHS 2 Directive 2011/65/EU |
| Dimensions | |
| Flange Size (W × H) | 26.0 mm × 31.0 mm [1.02" × 1.22"] |
| Overall Length | 33.1 mm [1.30"] |
| Flange Thickness | 3.0 mm [.12"] |
| Mounting Hole Spacing | 19.0 mm × 24.0 mm [.75" × .94"] |
| Panel Cut Out | |
| Cut Out Diameter | Ø24.0 mm [Ø.94"] |
| Mounting Holes | 2 × Ø3.30 mm [Ø.13"] |
| Hole Centre Spacing | 18.9 mm × 24.0 mm [.75" × .94"] |
| Applications | |
| Application Areas | Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications |
