Name: Adaptor Dmx 5 Pin Male To 5 Pin Male
Brand: Amphenol
SKU: AC5M5MW

Joins two XLR female ends on a 5 pole line

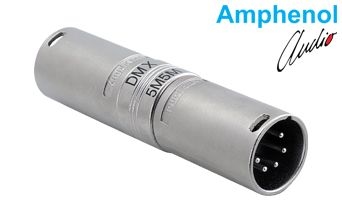

This AC series in-line adapter continues the 5 pole XLR line with male - male ends. The factory prewired metal body carries the DMX 5M5M marking and takes its place on stage and studio lines.

5Pin count

Male - MalePlug type

IP40Protection grade

NickelHousing finish

Key features

Contact configurationA 5 pole male - male contact arrangement connects two female cable ends to each other.

Mounting and terminationThe factory prewired design needs no extra soldering on the line.

Housing and finishThe diecast zinc alloy housing is nickel plated and carries IP40 protection.

Usage areas

Radio and TV broadcasting · Professional studios · Sound reinforcement and PA · Musicians and DJs · Special applications

General Specifications

Part Number

AC5M5MW

Series

AC Series

Product Type

In-line XLR adapter

Description

5 Pole XLR Male to Male Metal In-line Adapter, Prewired, Nickel Finish

No. of Positions

Gender

Male to Male

Wiring

Factory prewired

Body Marking

DMX 5M5M

Comparable Part No.

NA5MM

Materials and Finish

Housing Material

Diecast Zinc Alloy

Finish

Nickel

Protection

IP Rating

IP40

Applications

Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications
