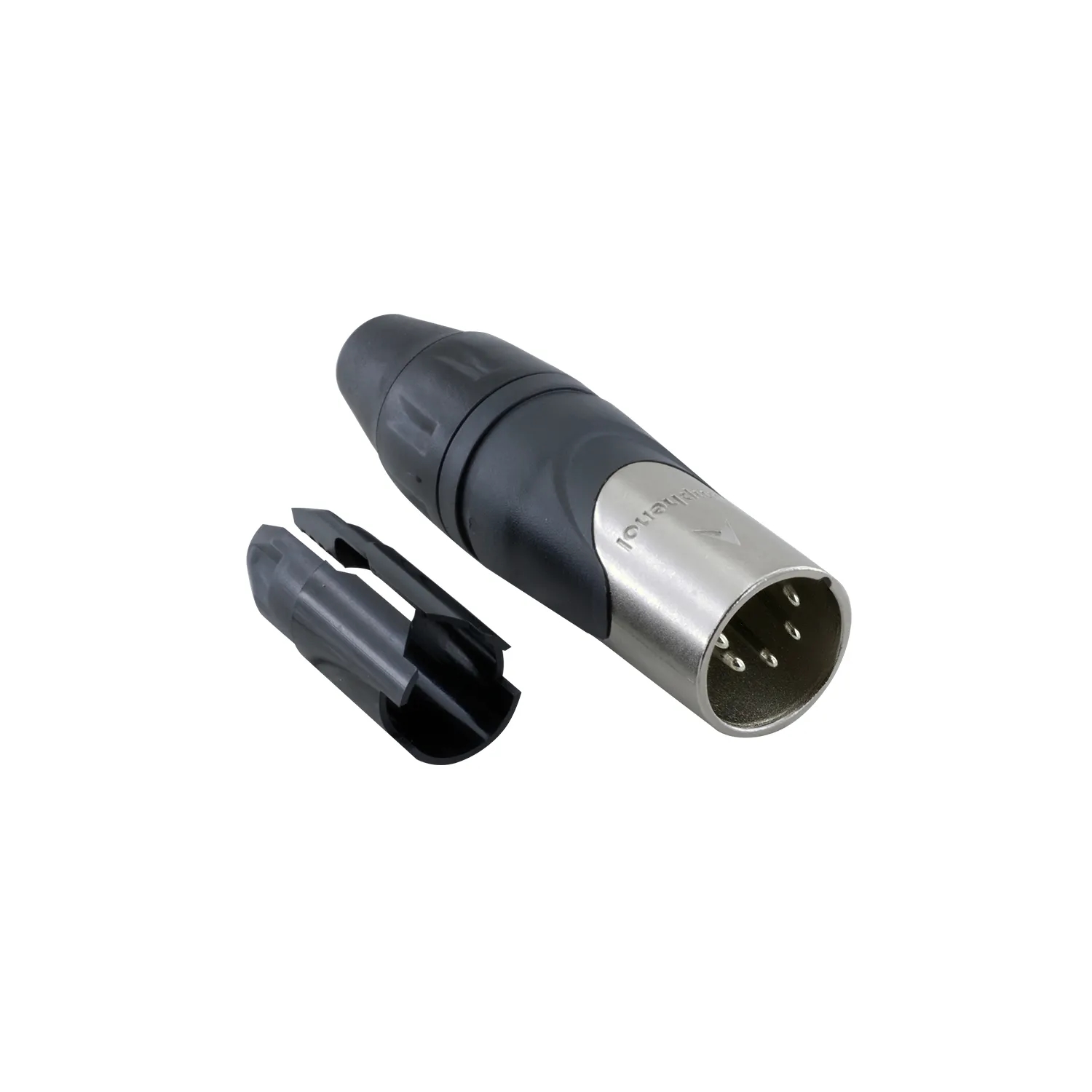

5 Pin XLR Erkek Konnektör

Name: 5 Pin XLR Erkek Konnektör
Brand: Amphenol
SKU: AX5M

Stock Code: AX5M

Adds a 5-contact XLR male termination to the cable end

This AX series male plug terminates the 5 pole XLR line at the cable end. A die-cast zinc shell, an ergonomic sleeve and a large latch keep mating fast on stage.

5Pin count

MalePlug type

7.5 ACurrent capacity

133 VService voltage

IP40Protection grade

-25 °C ~ +75 °COperating temperature

Key features

Contact configurationA 5 pole male contact arrangement; the machined brass contacts carry silver or optional gold plating and the typical contact resistance stays below 3 mΩ.

Mounting and terminationIt terminates the cable end by soldering and accepts stranded wire up to 18 AWG.

Cable connectionIt grips cable of 3 mm - 8 mm outer diameter, and the typical cable retention force stays between 22 kg and 44 kg.

Grounding and latchThe one-piece grounded latch spring grounds the mating connector and lifts EMI performance, while the concealed latching point improves insulation and durability.

Housing and finishThe diecast zinc alloy shell carries a satin nickel or black finish, and UL94V-0 rated PA66 insulators with 30% glass fill separate the contacts.

DurabilityA 1000 mating cycle rating covers lines in frequent use, and the insertion and withdrawal force stays between 10 N and 30 N.

Usage areas

Radio and TV broadcasting · Professional studios · Sound reinforcement and PA · Musicians and DJs · Special applications

General Specifications
Contact Count	3 / 4 / 5
AX Series Contact Arrangements (front view of pin inserts)	See images in original table
Termination	Solder
Max. Wire Gauge - Stranded wire (Solder)	14AWG / 16AWG / 18AWG
Flammability Rating of Plastics	UL94V-0
Environment	Complies with EU RoHS 2 Directive 2011/65/EU
Electrical Specifications
Service Voltage RMS	133V 1)
Test Voltage AC RMS	1400V
Current Carrying Capacity	15A / 10A / 7.5A
Typical Contact Resistance	≤3mΩ
Insulation Resistance	≥1GΩ
Climatic Specifications
Protection Class	IP40
Operating Temperature	-25°C to +75°C (-13°F to +167°F)
Mechanical Specifications
Insertion and Withdrawal Force	≥10N - ≤30N
Weight	31g (0.068lb) / 33g (0.073lb) / 33g (0.073lb)
Typical Cable Retention Force	22Kg - 44Kg (50lb - 100lb) - Depends on cable material and diameter.
Cable O.D. Range	3 mm - 8 mm (0.118" - 0.314")
Mechanical Operations	1000 mating cycles
Materials
Connector Shell - Metal / Shell Plating	Diecast Zinc Alloy / Satin Nickel or Black
Insulators	UL94V-0 PA66, 30% Glass Filled
Boot / Backshell Finish	UL94V-0 Noryl N190 / Santoprene - Black, other colours available
Cable Clamp	Noryl N190
Sleeve	Noryl N190
Female Contact Plating	0.05µm gold over 2µm nickel
Male Contact (Machined) - Solder / Plating	Brass / Silver or Gold (Optional)
Female Contact (Stamped) - Solder / Plating	Phosphor Bronze / Tin or Gold (Optional)
