    1. ›
    2. Audio and Video Products›
    3. Audio›
    4. AP Thermoplastic Connectors›
    5. Connecotor Plastic Panel Mount 6 Pin
    Connecotor Plastic Panel Mount 6 Pin
    Amphenol

    Connecotor Plastic Panel Mount 6 Pin

    Stock Code: AP-6-11

    Options

    2 options
    Pin Count6 Pin2
    Currently viewing: AP-6-11 · 6 Pin
    Terminates the loudspeaker cable at the cable end

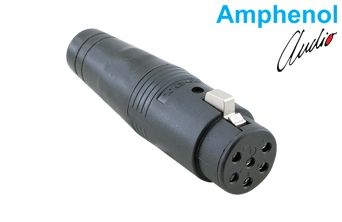

    A 6-contact female loudspeaker cable connector for professional audio systems. It hangs free on the cable and takes its socket contacts into solder cups.
    6 pinNumber of contacts
    FemaleGender
    Cable typeMounting type
    200 VVoltage rating
    20 ACurrent rating
    IP40Protection grade
    Key features
    Cable-type bodyThe backshell and cable clamp hold the cable inside the connector.
    Cable rangeAccepts cables between 11.00 mm and 17.00 mm.
    Latch lockA latch lock and keyed orientation keep the connector seated.
    Operating temperatureWorks between -25 °C and +75 °C.
    MaterialsThe modified PPE housing and PBT insert carry a UL94 V-0 flammability rating.
    General Specifications
    Part NumberAP-6-11
    BrandAmphenol
    SeriesLoudspeakerSeries™ AP
    Connector TypeFemale connector (socket contacts)
    Number of Contacts6
    Mounting TypeCable type (free hanging / in-line)
    TerminationSolder Cup
    Electrical Specifications
    Rated Voltage200 V
    Rated Current (40 °C)20 A
    Mechanical Specifications and Materials
    Housing MaterialModified Polyphenylene Ether (PPE)
    Insert MaterialPolybutylene Terephthalate (PBT)
    Contact MaterialBrass
    Contact PlatingTin (Sn)
    Shell FinishBlack
    Cable Range11.00 mm ~ 17.00 mm (0.433" ~ 0.669")
    FasteningLatch Lock, keyed orientation
    Cable ClampYes (backshell and cable clamp)
    Environmental Specifications
    Operating Temperature-25 °C ~ +75 °C
    Ingress ProtectionIP40
    ShieldingUnshielded
    Standards and Compliance
    FlammabilityUL94 V-0
    RoHSRoHS compliant (2002/95/EC)
    Applications
    ApplicationsRadio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications

    Teknik Çizim

    AP-6-11

    pdf9/24/2025
