Stock Code: AC6AF
| General | |
|---|---|
| Part Number | AC6AF |

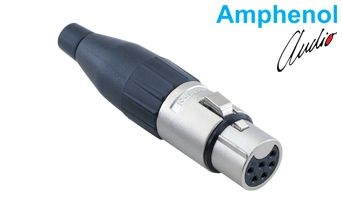

| Product Type | 6 Pole XLR Female Cable Connector |
| No. of Positions | 6 |
| Gender | Female |
| Termination | Solder |
| Comparable Part No. | NC6FXX, NC6FX |
| Electrical Specifications | |
| Current Carrying Capacity | 7.5 A |
| Service Voltage (RMS) | 133 V (not suitable for domestic applications above 50 V) |
| Test Voltage (AC RMS) | 1400 V |
| Max. Wire Gauge | 18 AWG |
| Mechanical and Environmental Specifications | |
| Housing Material | Diecast Zinc Alloy |
| Housing Finish | Nickel |
| Contact Type | Machined |
| Contact Plating | Silver |
| Mating Cycle Durability | 1000 |
| IP Rating | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Application Areas | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; custom applications |
