Stock Code: AC6AMDZ

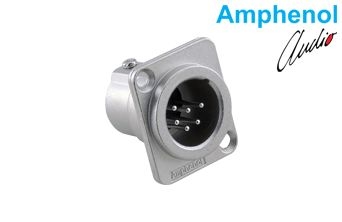

| General Characteristics | |
|---|---|
| Part Number | AC6AMDZ |
| Series | AC/AX Series XLR Metal Chassis Mount Connectors (Metal "Z") |
| Description | XLR 6A pole male, D flange, machined contacts, nickel finish |
| Number of Contacts | 6 (6A contact arrangement) |
| Gender | Male (pin contacts) |
| Mounting Type | Chassis / panel mount, D flange |
| Contact Type | Machined |
| Contact Plating | Silver |
| Shell Finish | Nickel |
| Termination | Solder Bucket |
| Max. Wire Gauge (stranded wire, solder) | 18 AWG |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Comparable Part No. | NC6MD-L-1 |
| Electrical Characteristics | |
| Service Voltage RMS | 133 V (not suitable for domestic applications above 50 V) |
| Test Voltage AC RMS | 1400 V |
| Current Carrying Capacity (solder) | 7.5 A |
| Typical Contact Resistance | ≤ 3 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Climatic Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Mechanical Characteristics | |
| Weight (metal) | 33 g (0.072 lb) |
| Mechanical Operations | 1000 mating cycles |
| Materials | |
| Connector Shell | Diecast Zinc Alloy |
| Shell Finish | Satin Nickel |
| Insulators | PA66 30% Glass Filled Resin |
| Male Contact (machined, solder) | Brass / Silver plating (gold optional) |
| Dimensions and Mounting | |
| Flange Dimensions | 26.0 mm [1.02"] × 31.0 mm [1.22"] |
| Overall Depth | 32.1 mm [1.26"] |
| Flange Thickness | 3.0 mm [.12"] |
| Mounting Hole Spacing | 19.0 mm [.75"] × 24.0 mm [.94"] |
| Panel Cut Out | ø24.0 mm [ø.94"] + 2 × ø3.30 mm [ø.13"] mounting holes |
| Applications | |
| Application Areas | Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications |
