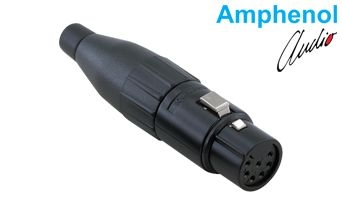

    Connector Metal Plug Str Cord 7 Skt
    Amphenol

    Connector Metal Plug Str Cord 7 Skt

    Stock Code: AC7FB

    Options

    2 options
    Pin Count72
    Currently viewing: AC7FB · 7
    Adds a 7-contact XLR female termination to the cable end in black
    This black finished AC series female cable connector terminates the 7 pole XLR line by soldering. Gold-plated machined contacts keep the typical contact resistance below 3 mΩ.
    7Pin count
    FemalePlug type
    5 ACurrent capacity
    133 VService voltage
    IP40Protection grade
    -25 °C ~ +75 °COperating temperature
    Key features
    Contact configurationA 7 pole female contact arrangement; the machined contacts are gold plated.
    Mounting and terminationThe cable type housing terminates the line by soldering and accepts wire up to 20 AWG.
    Cable connectionThe jaws-type cable clamp grips the soldered cable inside the housing.
    Housing and finishThe diecast zinc alloy housing is black finished, and UL94V-0 rated insulators resist flame spread.
    DurabilityA 1000 mating cycle rating and the 1400 V test voltage cover multichannel lines that are unplugged often.
    ComplianceComplies with EU RoHS 2 Directive 2011/65/EU.
    Usage areas
    Radio and TV broadcasting · Professional studios · Sound reinforcement and PA · Musicians and DJs · Special applications
    The 133 V service voltage is not suitable for domestic applications above 50 V.
    General Specifications
    Part NumberAC7FB
    Description7 pole XLR female cable connector, machined contacts, black finish
    No. of Positions7
    GenderFemale
    FinishBlack
    Housing MaterialDiecast zinc alloy
    Contact and Termination
    Contact TypeMachined
    Contact PlatingGold
    TerminationSolder
    Max. Wire Gauge20 AWG
    Electrical Specifications
    Current Carrying Capacity5 A
    Service Voltage RMS133 V (not suitable for domestic applications above 50 V)
    Test Voltage (AC RMS)1400 V
    Typical Contact Resistance< 3 mΩ
    Insulation Resistance< 1 GΩ
    Environmental and Mechanical Specifications
    Ingress Protection (IP)IP40
    Operating Temperature-25°C to +75°C (-13°F to +167°F)
    Mating Cycle Durability1000
    Flammability RatingUL94V-0
    EnvironmentalComplies with EU RoHS 2 Directive 2011/65/EU
    Applications
    ApplicationsRadio and TV broadcasting
    Professional studios
    Sound reinforcement and PA systems
    Musicians and DJs
    Special applications
