Carries a 7 contact link through the panel on gold plated contacts

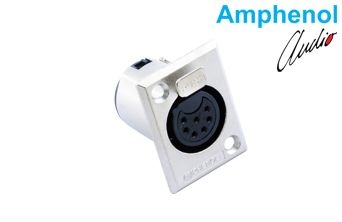

A D type 7 pole female XLR chassis connector that mounts on the panel face. The gold plated machined contacts show a typical contact resistance of 3 mΩ, and the diecast zinc housing carries a nickel finish.
7Pin Count
FemaleGender
5 ACurrent Carrying Capacity
IP40Protection Grade
-25°C to +75°COperating Temperature
NickelFinish
Key features
Gold plated machined contactsThe machined contacts carry gold plating and show a typical contact resistance of 3 mΩ.
5 A current capacityThe contacts carry 5 A, and the solder end accepts wire up to 20 AWG.
Wide D type flangeThe 26.0 mm × 31.0 mm flange seats in a Ø24.0 mm panel cut-out, and 2 × Ø3.30 mm holes take the mounting screws.
IP40 protection and -25°C to +75°C rangeThe connector is IP40 rated and works between -25°C and +75°C.
1000 mating cycles and UL94V-0The contacts withstand 1000 insertion and withdrawal cycles, and the housing carries a UL94V-0 rating.
The service voltage is 133 V RMS; it is not suitable for domestic applications above 50 V.
