Builds a 7-contact XLR male connection at the cable end

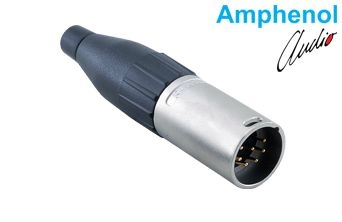

This AC series male cable connector terminates the 7 pole XLR line by soldering. A nickel-plated zinc alloy housing and gold-plated machined contacts carry multichannel broadcast and stage lines.

7Pin count

MalePlug type

5 ACurrent capacity

133 VService voltage

IP40Protection grade

-25 °C ~ +75 °COperating temperature

Key features

Contact configurationA 7 pole male contact arrangement; the machined contacts are gold plated.

Mounting and terminationThe cable type housing terminates the line by soldering and accepts wire up to 20 AWG.

Cable connectionThe jaws-type cable clamp grips the soldered cable inside the housing.

Housing and finishThe diecast zinc alloy housing is nickel plated, and UL94V-0 rated insulators resist flame spread.

DurabilityA 1000 mating cycle rating and the 1400 V test voltage cover lines that are unplugged often.

ComplianceComplies with EU RoHS 2 Directive 2011/65/EU.

Usage areas

Radio and TV broadcasting · Professional studios · Sound reinforcement and PA · Musicians and DJs · Special applications

The 133 V service voltage is not suitable for domestic applications above 50 V.

General Specifications

Product Description

7 Pole XLR Male Cable Connector, Machined Contacts, Nickel Finish

No. of Positions

Gender

Male

Shell Finish

Nickel

Housing Material

Diecast Zinc Alloy

Comparable Part No.

NC7MX, NC7MXX

Electrical Specifications

Current Carrying Capacity

5 A

Service Voltage (RMS)

133 V (not suitable for domestic applications above 50 V)

Test Voltage (AC RMS)

1400 V

Mechanical Specifications

Contact Type

Machined

Contact Plating

Gold

Termination

Solder

Max. Wire Gauge

20 AWG

Mating Cycle Durability

1000

Environmental & Compliance

Operating Temperature

-25°C ~ +75°C (-13°F ~ +167°F)

Ingress Protection (IP)

IP40

Flammability Rating

UL94V-0

Environmental

Complies with EU RoHS 2 Directive 2011/65/EU

Applications

Typical Applications

Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications
