Specifications
Model	M9
Fiber Alignment Mode	Core Alignment
Motor Operation	6 Motors
Dimensions	136H x 114W x 125D (including rubber bumper)
Weight	1.67 kg (with battery) / 1.43 kg (without battery)
Fiber Count	Single
Applicable Fibers	SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable	0.25~3.0 mm / Indoor cable
Cleave Length	10 - 16 mm
Cladding Diameter	80 µm - 150 µm
Splicing Mode	Max 128 modes, 24 pre-set modes
Heating Mode	Max 32 modes, 7 pre-set modes
Typical Splice Loss	0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) Measured by cut-back method according to ITU-T standards.
Return Loss	>> 60dB
Illumination	2 White LEDs
Splicing Time	Quick mode: 7 sec (Avg.) / SM Auto: 9 sec (Avg.)
Estimated Splice Loss	Available
Heating Sleeve Length	20 mm - 60 mm
Heating Time	13 seconds (45 mm, slim 60 mm) , 15 seconds (60 mm)
Storage of Results	Last 10,000 records
Tensile Test	1.96~2.25N
Operating Conditions	Altitude 0~5000m above sea level, Humidity 0~95% relative humidity, -10~50°C, Wind 15m/s
Storage Conditions	Humidity 0~95%RH, -20~60°C, battery -20~30°C
Display	90° bi-directional view, 4.3" Color High Resolution Screen
Fiber View and Magnification	300X magnification with 3 screen modes, 400X partial magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Splicing Count / Heating with Battery	Typical use: 130 cycles / Power saving use: 200 cycles
Operation Methods	Button / Touch Screen
Auto Calibration	Automatic arc calibration according to air pressure and temperature
Electrode Life	5500 arcs, can be extended using an electrode grinder
Terminal	USB Type-C

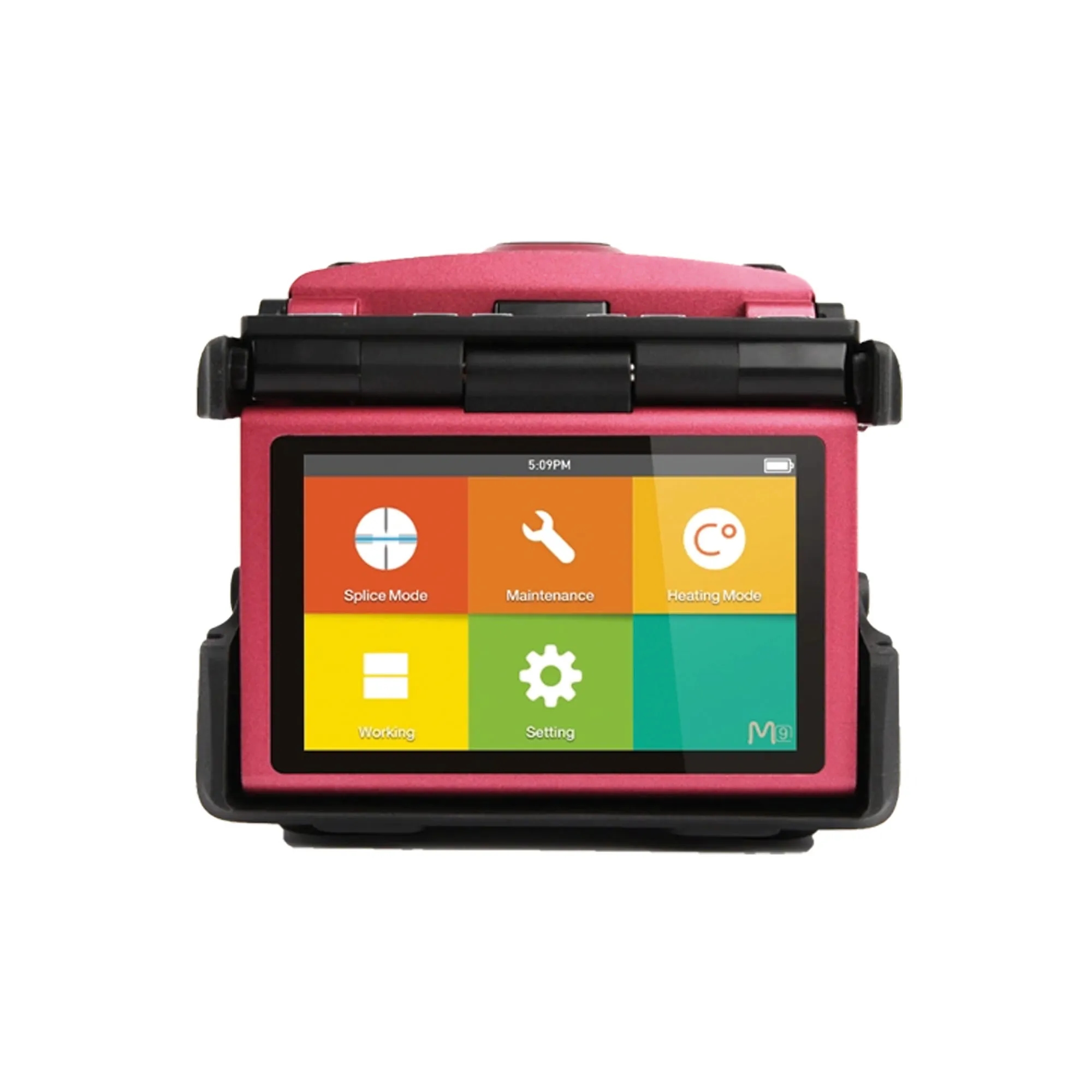

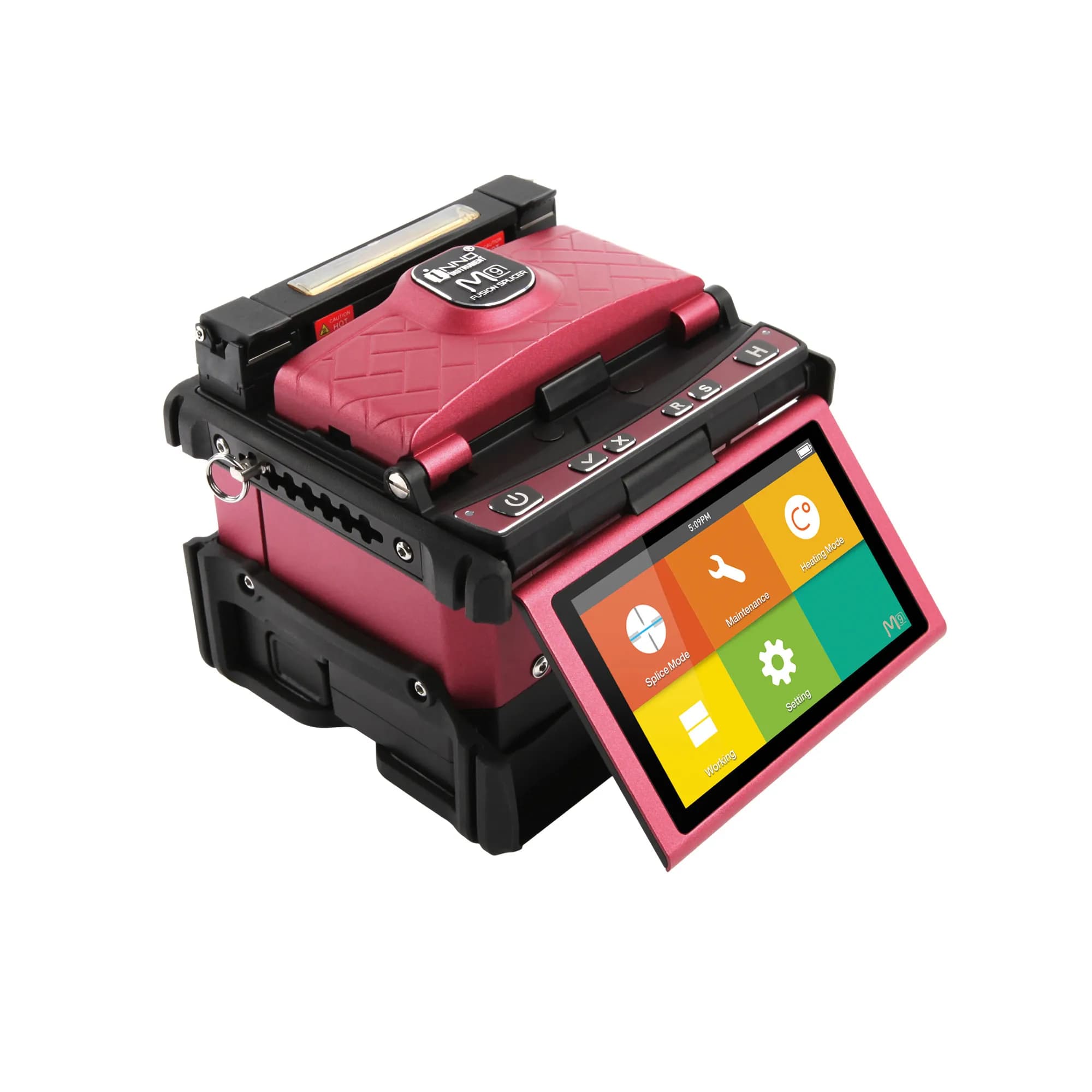

Splices with core alignment from a compact body carried on a shoulder strap.

An ultra-portable core alignment fusion splicer for field crews. It moves between touch screen and keypad, and automatic arc calibration follows changing weather conditions.

Core alignmentSplicing method

7 secSplice time

13 secHeating time

4.3 inchesColor touch screen

200 cyclesBattery capacity

2White LEDs

Key features

6motors

Core alignment motors

The motors bring both fiber cores onto the same axis.

7sec

Splicing in quick mode

In SM auto mode the splice time stays around 9 sec.

300X

Magnification of the fiber image

Partial magnification reaches 400X, and the view moves through three screen modes.

1.67kg

Portable body

The adjustable shoulder strap carries the unit all the way to the work point.

0.02dB

Typical splice loss on single mode

On multimode fiber the typical loss drops to 0.01 dB.

5500arcs

Electrode life

An electrode grinder stretches the replacement interval further.

DAY-TO-DAY IN THE FIELD

Dual operation modeTouch screen and physical keys work side by side, so the technician picks whichever suits the site.

Shoulder strapThe adjustable strap brings the unit to the work point without opening a case.

Automatic arc calibrationIt retunes the arc as air pressure and temperature shift.

Specifications

Model

Fiber Alignment Mode

Core Alignment

Motor Operation

6 Motors

Dimensions

136H x 114W x 125D (including rubber bumper)

Weight

1.67 kg (with battery) / 1.43 kg (without battery)

Fiber Count

Single

Applicable Fibers

SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655)

Compatible Fiber / Cable

0.25~3.0 mm / Indoor cable

Cleave Length

10 - 16 mm

Cladding Diameter

80 µm - 150 µm

Splicing Mode

Max 128 modes, 24 pre-set modes

Heating Mode

Max 32 modes, 7 pre-set modes

Typical Splice Loss

0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)
Measured by cut-back method according to ITU-T standards.

Return Loss

>> 60dB

Illumination

2 White LEDs

Splicing Time

Quick mode: 7 sec (Avg.) / SM Auto: 9 sec (Avg.)

Estimated Splice Loss

Available

Heating Sleeve Length

20 mm - 60 mm

Heating Time

13 seconds (45 mm, slim 60 mm) , 15 seconds (60 mm)

Storage of Results

Last 10,000 records

Tensile Test

1.96~2.25N

Operating Conditions

Altitude 0~5000m above sea level, Humidity 0~95% relative humidity, -10~50°C, Wind 15m/s

Storage Conditions

Humidity 0~95%RH, -20~60°C, battery -20~30°C

Display

90° bi-directional view, 4.3" Color High Resolution Screen

Fiber View and Magnification

300X magnification with 3 screen modes, 400X partial magnification

Power Supply

AC Input 100-240V, DC Input 9-14V

Splicing Count / Heating with Battery

Typical use: 130 cycles / Power saving use: 200 cycles

Operation Methods

Button / Touch Screen

Auto Calibration

Automatic arc calibration according to air pressure and temperature

Electrode Life

5500 arcs, can be extended using an electrode grinder

Terminal

USB Type-C
