Stock Code: View8X
| Technical Specifications | |
|---|---|
| Alignment Method | Premium Core Alignment |
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652&T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter | 100µm - 3mm |
| Cladding Diameter | 80 - 150µm |
| Cleave Length | 5 - 16mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss | >> 60dB |
| Splice Time | Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve | 20mm - 60mm |
| Data Output | Cloud (View Pro Manager) + USB-C |
| Splice Memory | 20,000 Splice data / 10,000 Splice image |
| Battery | Battery Capacity: 9000mAh / Operation Cycle: 500 cycles (Splicing + Heating) |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |

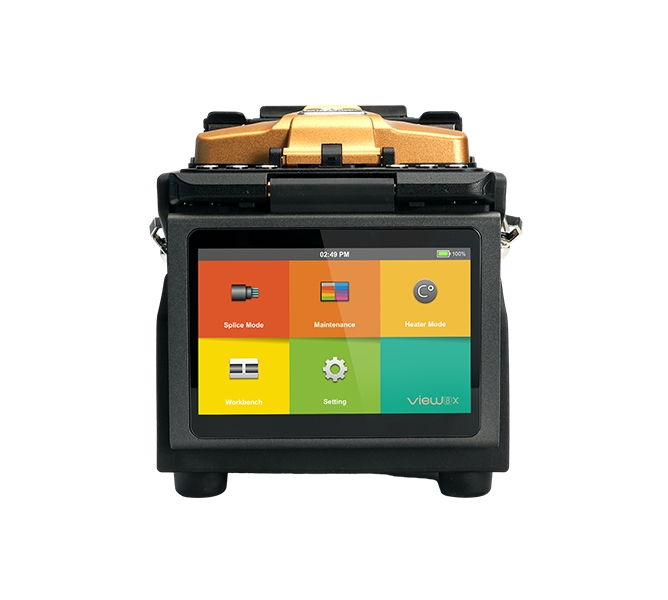

| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Magnification | x360, x520 |
| Size | 162 x 143 x 158mm |
| Weight | 2.68kg |
| Pull Test | 1.96 - 2.25N |
