Stock Code: View8 Pro
| Specifications | |
|---|---|
| Model | VIEW8 PRO |
| Alignment Method | Core alignment |
| Number of Fiber | Single |
| Applicable Fibers | SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Cladding Diameter | 100 µm ~ 125 µm |
| Coating Diameter | 200 µm ~ 3 mm |
| Cleaved Length | 5 ~ 16 mm |
| Typical Splice Loss*1 | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss | >> 60dB |
| Estimated Splice Loss | Available |
| Splice Time*2 | Quick mode: 6 sec (Avg.) / SM Auto mode: 8 sec (Avg.) |
| Splice Mode | Max 128 modes |
| Heating Sleeve | 20 ~ 60 mm |
| Heating Time*3 | 9 sec (45 mm, slim 60 mm) , 11 sec (60 mm) |
| Heating Mode | Max 32 modes |
| Tension Test | 1.96 ~ 2.25N |
| Dimensions | 143W x 158D x 162H mm (with rubber bumper) 130W x 157D x 150H mm (without rubber bumper) |
| Weight | 2.78 kg (with battery) / 2.12 kg (without battery) |
| White LED | 2 White LEDs |

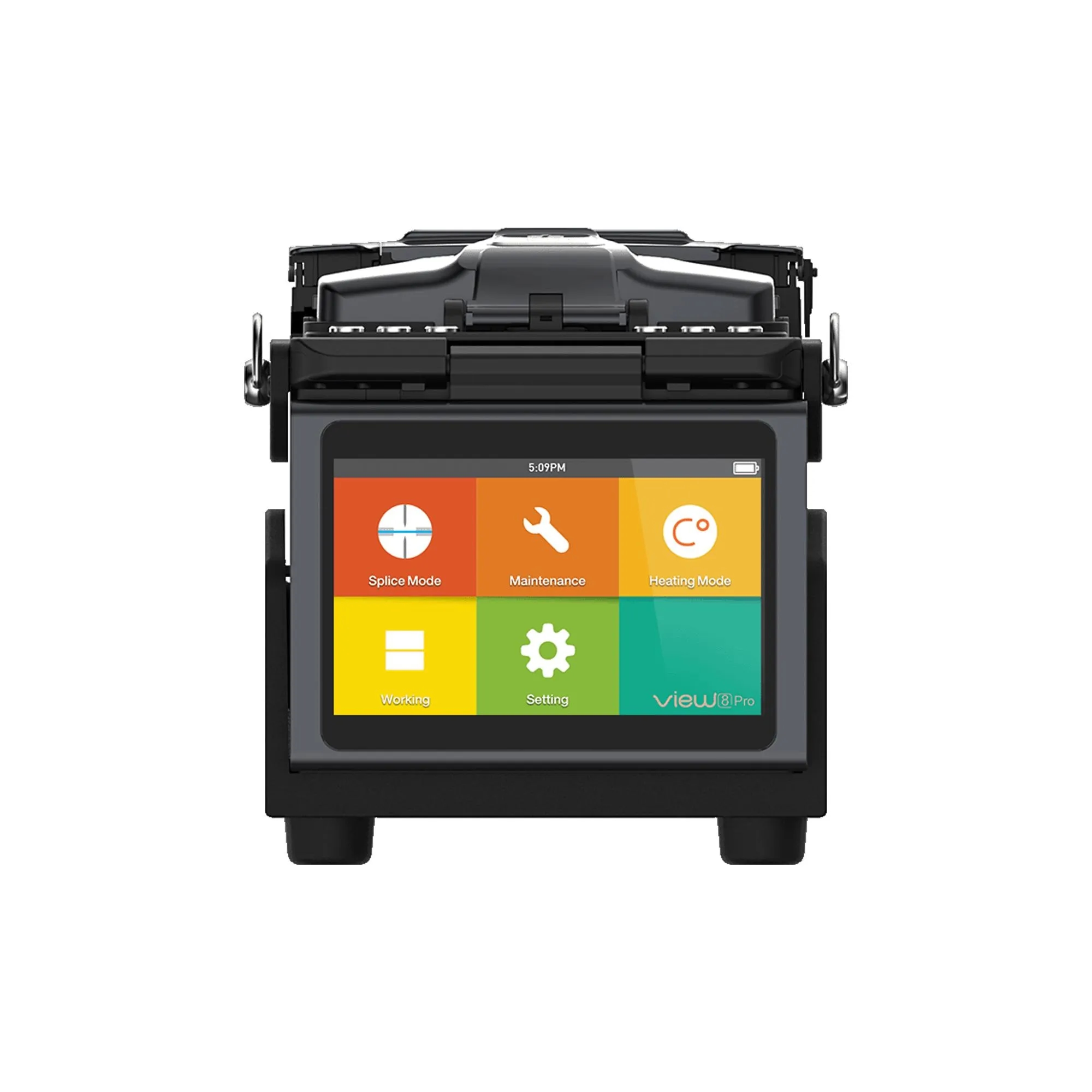

| Monitor | 5.0" Color LCD display, Full touch screen |
| Fiber View | X, Y, XY, X/Y |
| Magnification | 320 ~ 520x |
| Results Storage | 10,000 Splice data / 10,000 Splice image |
| Power Supply | AC Input 100 ~ 240V, DC Input 9 ~ 14V |
| Terminal | USB Type C / Nano SIM |
| Battery Capacity*4 | LBT-30, Typical usage: 355 cycles / Power save usage: 450 cycles |
| Electrode Life*5 | 5500 arcs discharge |
| GPS | Available |
