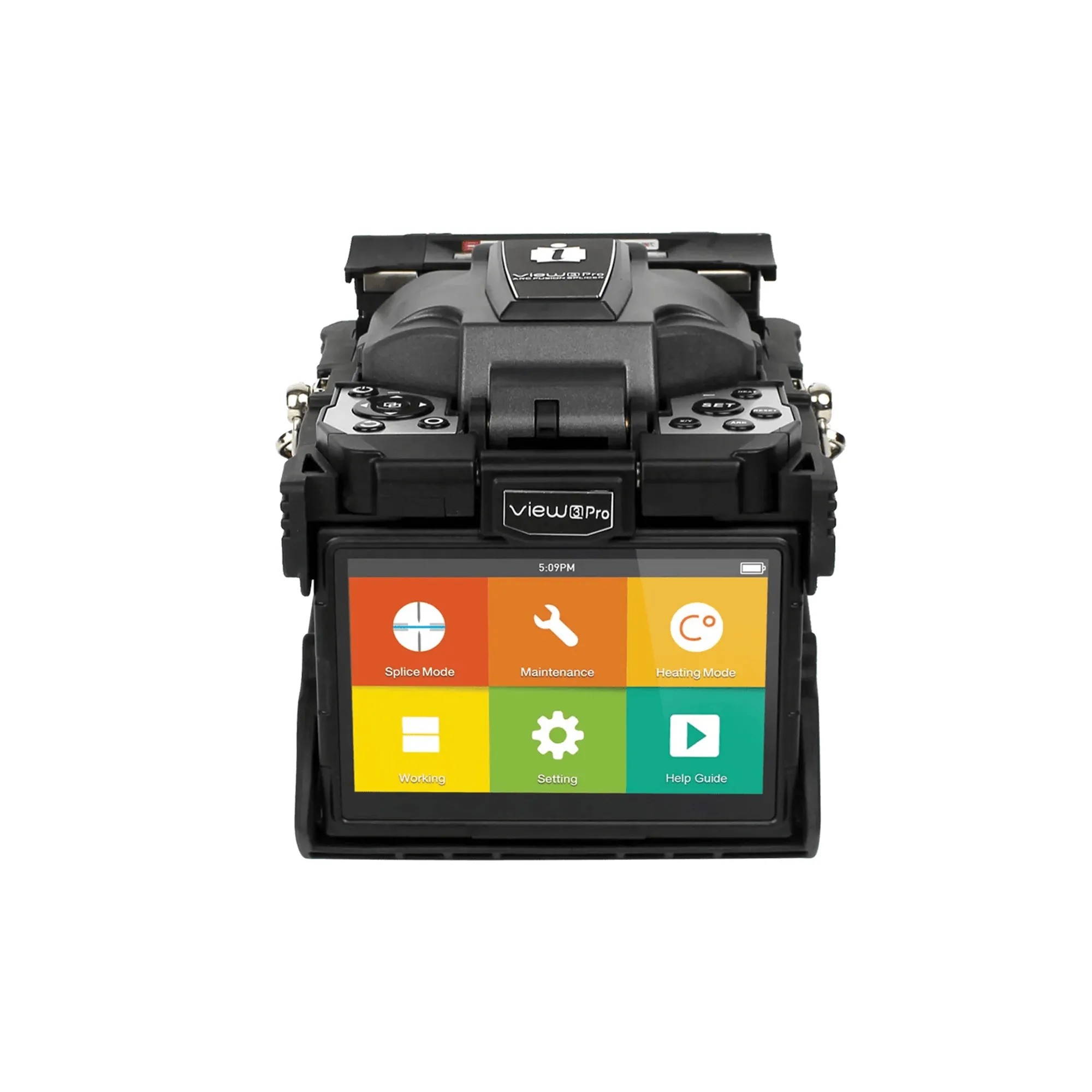

Stock Code: View3 Pro
| Specifications | |
|---|---|
| Model | VIEW3 PRO |
| Alignment Mode | Active Cladding Alignment |
| Fiber Count | Single |
| Applicable Fibers | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) / CS (ITU-T G.654) / EDF |
| Cladding Diameter | 80 µm - 150 µm |
| Coating Diameter | 100~3000 µm |
| Cleave Length | 5 ~ 16mm |
| Typical Splice Loss*1 | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
| Return Loss | >> 60dB |
| Estimated Splice Loss | Available |
| Splicing Mode | Max 128 modes, 24 pre-set modes |
| Heating Mode | Max 32 modes, 7 pre-set modes |
| Typical Splice Loss | 0.02dB (SM) / 0.01dB (MM) / 0.04dB (DS) / 0.04dB (NZDS) / 0.02dB (G.657) Measured by cut-back method according to ITU-T standards. |
| Splicing Time*2 | Quick mode: 7 sec (Average) / Typical: 9 sec (Average) |
| Splicing Mode | Max 128 modes |
| Heating Sleeve | 20 ~ 60mm |
| Heating Time*3 | 13 seconds (45mm, slim 60mm), 15 seconds (60mm) |
| Heating Sleeve Length | 20 mm - 60 mm |
| Heating Time | 13 seconds (45mm, slim 60mm), 15 seconds (60mm) |
| Heating Mode | Max 32 modes |
| Tensile Test | 1.96~2.25N |
| Dimensions | 149W x 177D x 151H mm (with rubber bumper) 130W x 166D x 140H mm (without rubber bumper) |
| Weight | 2.21 kg (with battery) / 1.85 kg (without battery) |
| White LED | 3 White LEDs |
| Monitor | 5.0" Color LCD Screen, Full Touch Screen |
| Fiber View | X, Y, XY, X/Y |
| Magnification | 320 ~ 520x |
| Storage of Results | 10,000 Splice data / 10,000 Splice images |
| Power Supply | AC Input 100 ~ 240V, DC Input 9 ~ 14V |
| Electrode Life | 5500 arc discharges |
| Terminal | USB Type C / Nano SIM |
| GPS | Available |
| Battery Capacity*4 | LBT-52, Typical use: 200 cycles / Power saving use: 250 cycles |
