Feeds 48 V DC loads inside the panel from the DIN rail.

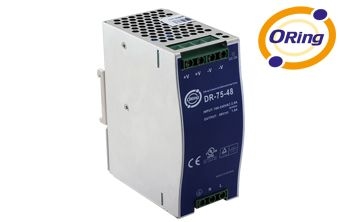

A switching power supply that converts mains voltage to 48 V DC. It runs on a single-phase input across the 85 ~ 264 VAC range. The enclosed case mounts on a DIN rail and feeds continuously running loads in industrial panels.

75 WMax. Output Power

48 V DCOutput voltage

1.6 ARated current

85 ~ 264 VACInput voltage range

81%Efficiency (typ.)

Key features

76.8W

Continuous output capacity

Runs without interruption at rated power.

48V DC

Fixed supply voltage

Adjusts the output between 48 ~ 53 V.

81%

Conversion efficiency

Transfers most of the input power to the output.

3KVAC

Input-output isolation

Separates the input side voltage from the output circuit.

123.1Khours

Mean time between failures

Based on the MIL-HDBK-217F calculation.

IN DAILY USE

Fanless coolingCools by free air convection and uses no fan.

Protected outputShuts down the output on overload, overvoltage, over temperature and short circuit.

Simple mountingClips directly onto the DIN rail.

Usage AreasIndustrial control panels·DIN rail distribution cabinets

General
Model	DR-75-48
Manufacturer	MEAN WELL
Product Category	DIN Rail Power Supplies
Product Type	Switching Power Supply
Application Area	Industrial
Input
Input Type	Single Phase
Voltage Range	85 ~ 264 VAC / 120 ~ 370 VDC
Frequency Range	47 ~ 63 Hz
Efficiency (Typ.)	81%
AC Current (Typ.)	1.6 A / 115 V; 0.96 A / 230 V
Inrush Current (Typ.)	Cold start 20 A / 115 VAC; 40 A / 230 VAC
Leakage Current	< 1 mA / 240 VAC
Output
Output Voltage	48 VDC
Rated Current	1.6 A
Current Range	0 ~ 1.6 A
Rated Power	76.8 W
Ripple & Noise (max.)	240 mVp-p
Voltage Adj. Range	48 ~ 53 V
Voltage Tolerance	±1.0%
Line Regulation	±0.5%
Load Regulation	±1.0%
Setup / Rise Time	1000 ms, 60 ms / 230 VAC
Hold-up Time (Typ.)	60 ms / 230 VAC; 12 ms / 115 VAC at full load
Protection
Overload Protection	105 ~ 150% rated output power; constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection	58 ~ 65 V
Over Temperature Protection	Shut down o/p voltage, re-power on to recover
Short Circuit Protection	Yes
Environment
Working Temperature	-10 ~ +60 °C (Refer to Derating Curve)
Working Humidity	20 ~ 90% RH (non-condensing)
Storage Temperature / Humidity	-20 ~ +85 °C, 10 ~ 95% RH
Temp. Coefficient	±0.03% / °C (0 ~ 50 °C)
Vibration	10 ~ 500 Hz, 2G, 10 min./cycle along each axis (X, Y, Z), 60 min. total; compliance to IEC60068-2-6
Safety & EMC
Safety Standards	UL 508, EAC TP TC 004 approved
Withstand Voltage	I/P-O/P: 3 KVAC; I/P-FG: 2.0 KVAC; O/P-FG: 0.5 KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100 MΩ / 500 VDC
EMC Emission	Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC Immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020
MTBF	123.1K hrs min., MIL-HDBK-217F (25 °C)
Mechanical
Dimensions (W×H×D)	55.5 × 125.2 × 100 mm
Weight	0.6 kg
Cooling	Free air convection
Mounting	DIN rail TS-35/7.5 or TS-35/15
Case Type	Enclosed

General

Model

DR-75-48

Manufacturer

MEAN WELL

Product Category

DIN Rail Power Supplies

Product Type

Switching Power Supply

Application Area

Industrial

Input

Input Type

Single Phase

Voltage Range

85 ~ 264 VAC / 120 ~ 370 VDC

Frequency Range

47 ~ 63 Hz

Efficiency (Typ.)

81%

AC Current (Typ.)

1.6 A / 115 V; 0.96 A / 230 V

Inrush Current (Typ.)

Cold start 20 A / 115 VAC; 40 A / 230 VAC

Leakage Current

< 1 mA / 240 VAC

Output

Output Voltage

48 VDC

Rated Current

1.6 A

Current Range

0 ~ 1.6 A

Rated Power

76.8 W

Ripple & Noise (max.)

240 mVp-p

Voltage Adj. Range

48 ~ 53 V

Voltage Tolerance

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Setup / Rise Time

1000 ms, 60 ms / 230 VAC

Hold-up Time (Typ.)

60 ms / 230 VAC; 12 ms / 115 VAC at full load

Protection

Overload Protection

105 ~ 150% rated output power; constant current limiting, recovers automatically after fault condition is removed

Over Voltage Protection

58 ~ 65 V

Over Temperature Protection

Shut down o/p voltage, re-power on to recover

Short Circuit Protection

Yes

Environment

Working Temperature

-10 ~ +60 °C (Refer to Derating Curve)

Working Humidity

20 ~ 90% RH (non-condensing)

Storage Temperature / Humidity

-20 ~ +85 °C, 10 ~ 95% RH

Temp. Coefficient

±0.03% / °C (0 ~ 50 °C)

Vibration

10 ~ 500 Hz, 2G, 10 min./cycle along each axis (X, Y, Z), 60 min. total; compliance to IEC60068-2-6

Safety & EMC

Safety Standards

UL 508, EAC TP TC 004 approved

Withstand Voltage

I/P-O/P: 3 KVAC; I/P-FG: 2.0 KVAC; O/P-FG: 0.5 KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100 MΩ / 500 VDC

EMC Emission

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

MTBF

123.1K hrs min., MIL-HDBK-217F (25 °C)

Mechanical

Dimensions (W×H×D)

55.5 × 125.2 × 100 mm

Weight

0.6 kg

Cooling

Free air convection

Mounting

DIN rail TS-35/7.5 or TS-35/15

Case Type

Enclosed
