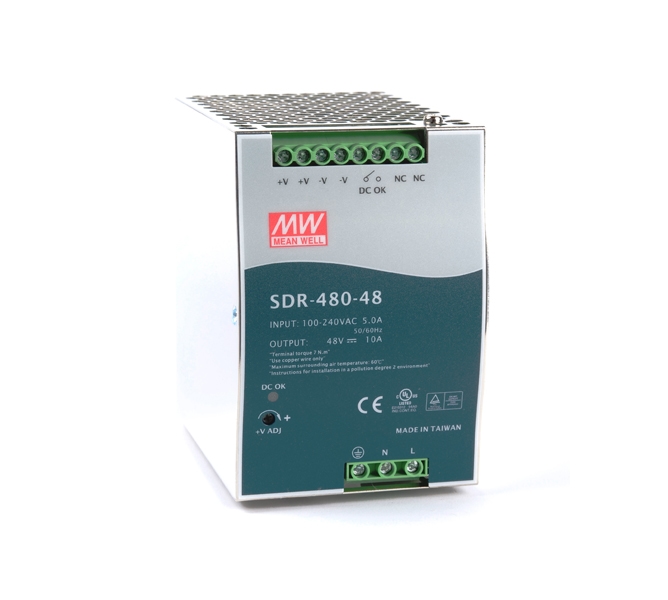

Stock Code: SDR-480-48
| General | |
|---|---|
| Series | SDR-480 (480W) |
| Base Product Number | SDR-480 |
| Number of Outputs | 1 |
| Application | ITE (Commercial Equipment) |
| Input | |
| Input Type | AC or DC |
| Voltage Range | 90 ~ 264 VAC / 127 ~ 370 VDC |
| Frequency Range | 47 ~ 63 Hz |
| Efficiency (Typ.) | 94% |
| AC Current (Typ.) | 5 A / 115 VAC |
| Inrush Current (Typ.) | 40 A / 115 VAC; 80 A / 230 VAC |
| Leakage Current | <0.8 mA / 240 VAC |
| Power Factor (PFC, Typ.) | 0.94 / 230 VAC; 0.99 / 115 VAC (at full load) |
| Output | |
| Output Voltage | 48 VDC |
| Rated Current | 10 A |
| Current Range | 0 ~ 10 A |
| Rated Power | 480 W |
| Peak Current | 15 A |
| Peak Power | 720 W (3 sec.) |
| Ripple & Noise (max.) | 120 mVp-p |
| Voltage Adj. Range | 48 ~ 55 V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
| Setup / Rise Time | 1500 ms, 150 ms / 230 VAC |
| Hold-up Time (Typ.) | 14 ms / 230 VAC (at full load) |
| Protection | |
| Overload Protection | 110 ~ 150% of rated output power, auto-recovery |
| Over Voltage Protection | 56 ~ 65 V; shut down o/p voltage, auto-recovery |
| Over Temperature Protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Short Circuit Protection | Yes (constant current limiting) |
| Environment | |
| Working Temperature | -25°C ~ +70°C (refer to derating curve) |
| Working Humidity | 20 ~ 95% RH (non-condensing) |
| Storage Temp. / Humidity | -40°C ~ +85°C, 10 ~ 95% RH |
| Temp. Coefficient | ±0.03% / °C (0 ~ 50°C) |
| Cooling | Free air convection |
| Safety & EMC | |
| Withstand Voltage | I/P-O/P: 3 kVAC; I/P-FG: 2 kVAC; O/P-FG: 0.5 kVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: >100 MΩ / 500 VDC |
| Safety Standards | UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004, BSMI CNS15598-1 |
| EMC Emission | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3 |
| EMC Immunity | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (heavy industry level, SEMI F47 approved) |
| Certifications | CB, CE, cULus, TUV |
| MTBF | 964.2K hrs min. (Telcordia SR-332) |
| Mechanical | |
| Dimensions (W×H×D) | 85.5 × 125.2 × 128.5 mm |
| Weight | 1.6 kg |
| Mounting | DIN rail TS-35/7.5 or TS-35/15 |
| Features | Adjustable Output, Power Factor Correction (PFC), Universal Input, Built-in DC OK relay contact |
