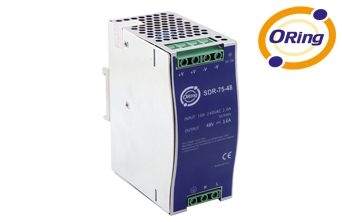

Name: DIN Rail Power Adapter 75W
Brand: ORing
SKU: SDR-75-48

Feeds 48 V DC loads in tight panels.

A switching power supply that converts mains voltage to 48 V DC. It works across the 88 ~ 264 V AC range and starts up in environments down to -30 °C. The 32 mm wide case takes little space on the DIN rail.

75 WMax. Output Power

48 V DCOutput voltage

1.6 ARated current

88 ~ 264 V ACInput voltage range

-30 ~ +70 °COperating Temperature

Key features

112.5W

Peak power capacity

Covers the start-up load for 3 seconds.

2.34A

Peak current capacity

Covers the extra current drawn at start-up.

90%

Conversion efficiency

Transfers most of the input power to the output.

32mm

Body width

Takes little space on the DIN rail.

IN DAILY USE

Fanless coolingCools by free air convection and uses no fan.

Protected outputShuts down the output on overload, overvoltage, over temperature and short circuit.

Simple mountingClips directly onto the DIN rail.

Usage AreasIndustrial control panels·DIN rail distribution cabinets

General
Brand	Mean Well
Series	SDR
Model	SDR-75-48
Type	Switching Mode (SMPS)
Input
Input Voltage Range	88 ~ 264 V AC / 124 ~ 370 V DC
Frequency Range	47 ~ 63 Hz
AC Current (Typ.)	1.4 A / 115 V AC; 0.85 A / 230 V AC
Inrush Current (Typ.)	30 A / 115 V AC; 50 A / 230 V AC
Leakage Current	< 1 mA / 240 V AC
Efficiency (Typ.)	90%
Output
Output Voltage	48 V DC
Rated Current	1.6 A
Current Range	0 ~ 1.6 A
Rated Power	76.8 W
Peak Current	2.34 A
Peak Power	112.5 W (3 sec.)
Ripple & Noise (max.)	120 mVp-p
Voltage Adj. Range	48 ~ 55 V
Voltage Tolerance	±1.0%
Line Regulation	±0.5%
Load Regulation	±1.0%
Setup / Rise Time	1500 ms, 60 ms / 230 V AC; 3000 ms, 60 ms / 115 V AC (at full load)
Hold-up Time (Typ.)	80 ms / 230 V AC; 20 ms / 115 V AC (at full load)
Protection
Overload Protection	110 ~ 150% of rated output power
Over Voltage Protection	56 ~ 65 V; shut down o/p voltage, re-power on to recover
Over Temperature Protection	Shut down o/p voltage, re-power on to recover after temperature goes down
Short Circuit Protection	Yes
Environment
Working Temperature	-30°C ~ +70°C
Working Humidity	20 ~ 95% RH (non-condensing)
Storage Temperature / Humidity	-40°C ~ +85°C, 10 ~ 95% RH
Temp. Coefficient	±0.03%/°C (0 ~ 60°C)
Safety & EMC
Safety Standards	UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004
Withstand Voltage	I/P-O/P: 3 kV AC; I/P-FG: 2 kV AC; O/P-FG: 0.5 kV AC
Isolation Resistance	> 100 MΩ / 500 V DC
EMC Emission	BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3
EMC Immunity	BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035; heavy industry level; SEMI F47
MTBF	479.8K hrs (MIL-HDBK-217F)
Mechanical
Dimensions (W×H×D)	32 × 125.2 × 102 mm
Weight	0.51 kg
Mounting	DIN-Rail (TS35/7.5 or TS35/15)
Cooling	Free air convection

General

Brand

Mean Well

Series

SDR

Model

SDR-75-48

Type

Switching Mode (SMPS)

Input

Input Voltage Range

88 ~ 264 V AC / 124 ~ 370 V DC

Frequency Range

47 ~ 63 Hz

AC Current (Typ.)

1.4 A / 115 V AC; 0.85 A / 230 V AC

Inrush Current (Typ.)

30 A / 115 V AC; 50 A / 230 V AC

Leakage Current

< 1 mA / 240 V AC

Efficiency (Typ.)

90%

Output

Output Voltage

48 V DC

Rated Current

1.6 A

Current Range

0 ~ 1.6 A

Rated Power

76.8 W

Peak Current

2.34 A

Peak Power

112.5 W (3 sec.)

Ripple & Noise (max.)

120 mVp-p

Voltage Adj. Range

48 ~ 55 V

Voltage Tolerance

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Setup / Rise Time

1500 ms, 60 ms / 230 V AC; 3000 ms, 60 ms / 115 V AC (at full load)

Hold-up Time (Typ.)

80 ms / 230 V AC; 20 ms / 115 V AC (at full load)

Protection

Overload Protection

110 ~ 150% of rated output power

Over Voltage Protection

56 ~ 65 V; shut down o/p voltage, re-power on to recover

Over Temperature Protection

Shut down o/p voltage, re-power on to recover after temperature goes down

Short Circuit Protection

Yes

Environment

Working Temperature

-30°C ~ +70°C

Working Humidity

20 ~ 95% RH (non-condensing)

Storage Temperature / Humidity

-40°C ~ +85°C, 10 ~ 95% RH

Temp. Coefficient

±0.03%/°C (0 ~ 60°C)

Safety & EMC

Safety Standards

UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004

Withstand Voltage

I/P-O/P: 3 kV AC; I/P-FG: 2 kV AC; O/P-FG: 0.5 kV AC

Isolation Resistance

> 100 MΩ / 500 V DC

EMC Emission

BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3

EMC Immunity

BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035; heavy industry level; SEMI F47

MTBF

479.8K hrs (MIL-HDBK-217F)

Mechanical

Dimensions (W×H×D)

32 × 125.2 × 102 mm

Weight

0.51 kg

Mounting

DIN-Rail (TS35/7.5 or TS35/15)

Cooling

Free air convection
