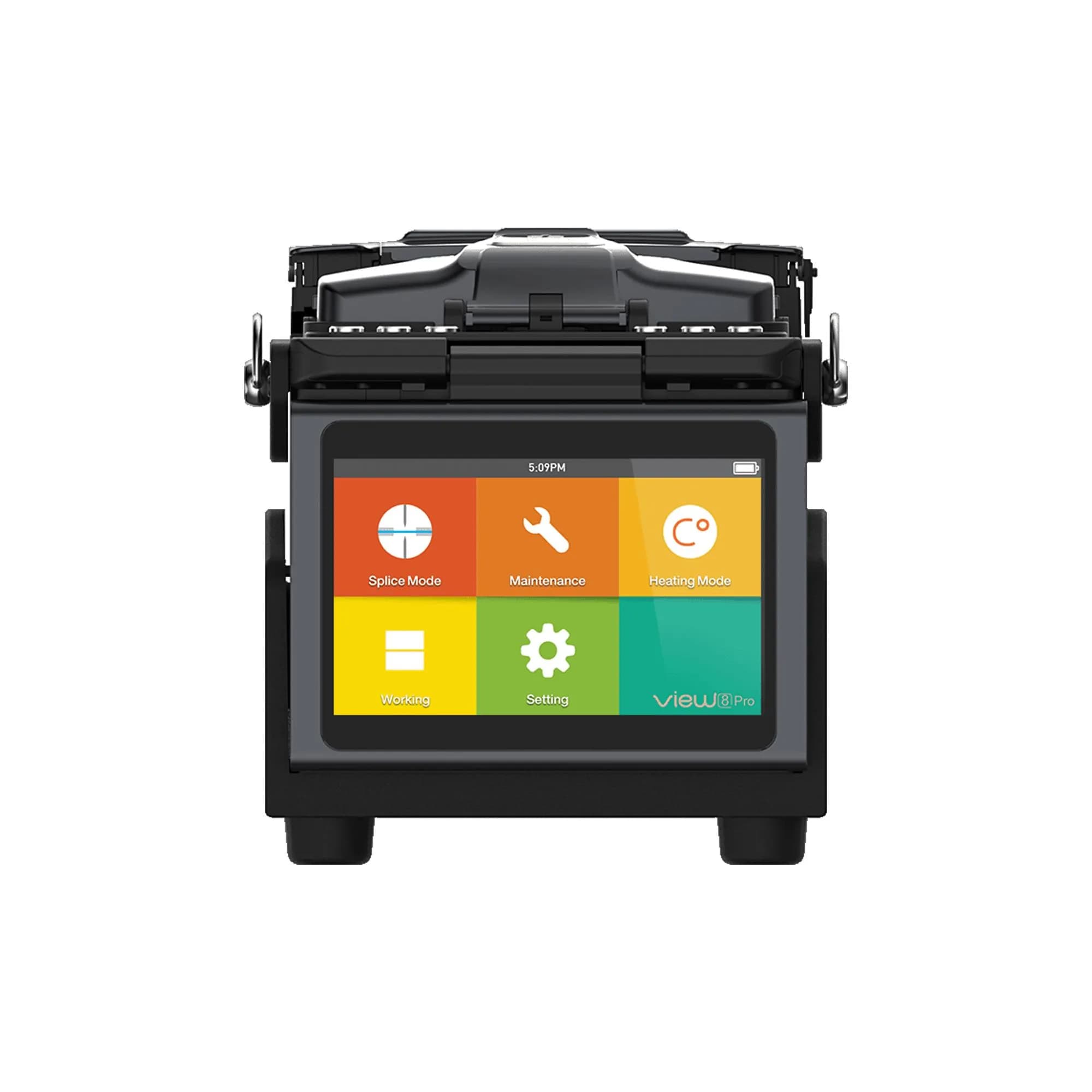

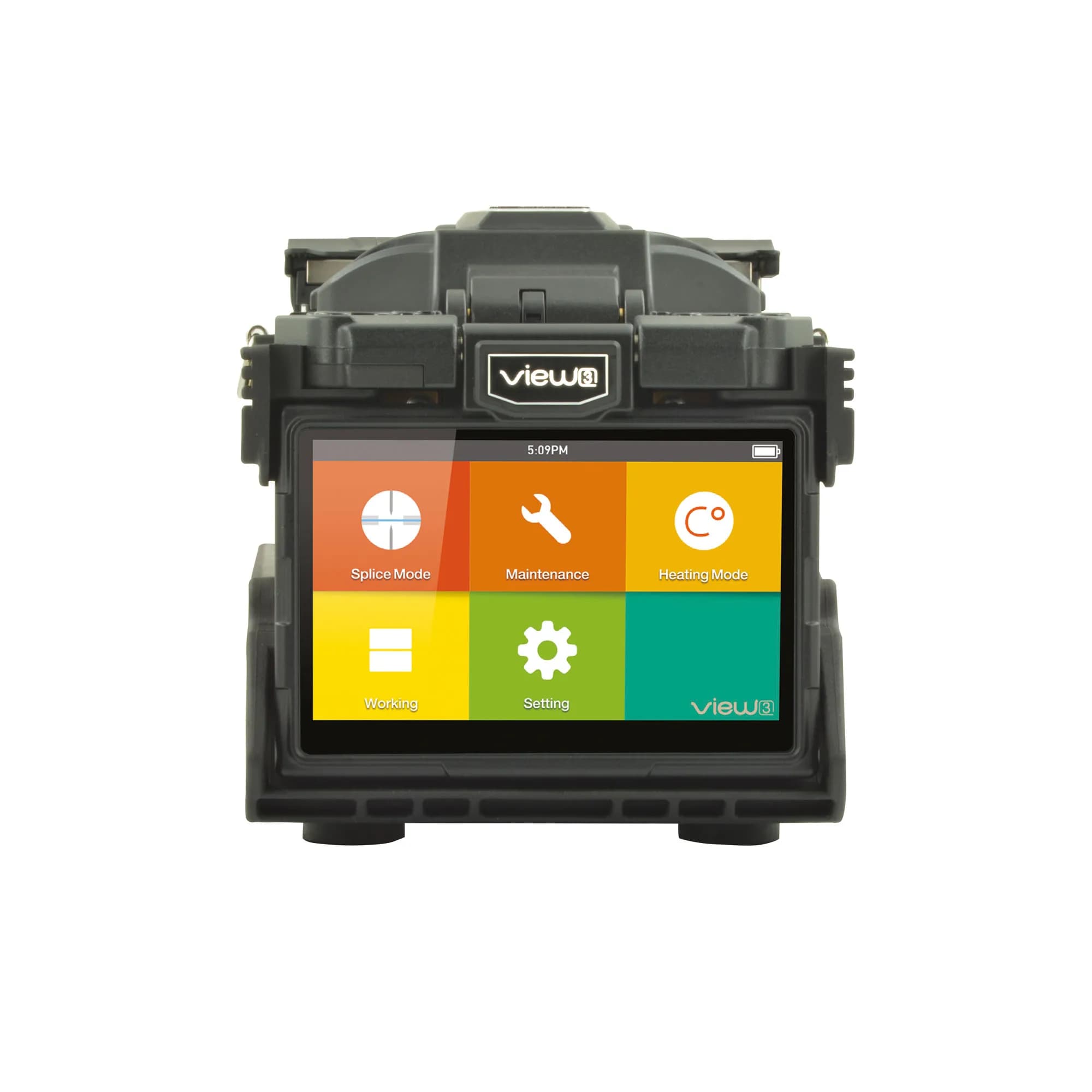

Stock Code: View3
| Model | |
|---|---|
| Dimensions | 143H x 130W x 155D mm (without rubber bumper) / 152H x 147W x 175D mm (with rubber bumper) |
| Weight | 2.31KG (with battery) / 1.95KG (without battery) |
| Fiber Count | Single |
| Applicable Fiber | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber Cable | 0.25~3.0 mm / Indoor Cable |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 µm |
| Splicing Mode | Max 128 modes |
| Heating Mode | 5 pre-set modes / Max 32 modes |
| Typical Splice Loss | SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard) |
| Return Loss | >>60dB |
| Illumination | 3 White LEDs |
| Splicing Time | Quick Mode: 7 sec / Auto mode: 9 sec |
| Estimated Splice Loss | Available |
| Heating Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 30 seconds |
| Storage of Results | 2000 results |
| Tensile Test | 1.96~2.25N |
| Operating Conditions | Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max. Wind 15m/s |
| Storage Conditions | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0" Color High Resolution Screen |
| Fiber View and Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| Splicing Count and Heating with Battery | 4200mAh Battery Capacity, Typical 170 times (Splice+Heat) |
| Operation Methods | Button / Touch Screen |
| Auto Calibration | Automatic arc calibration according to air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
