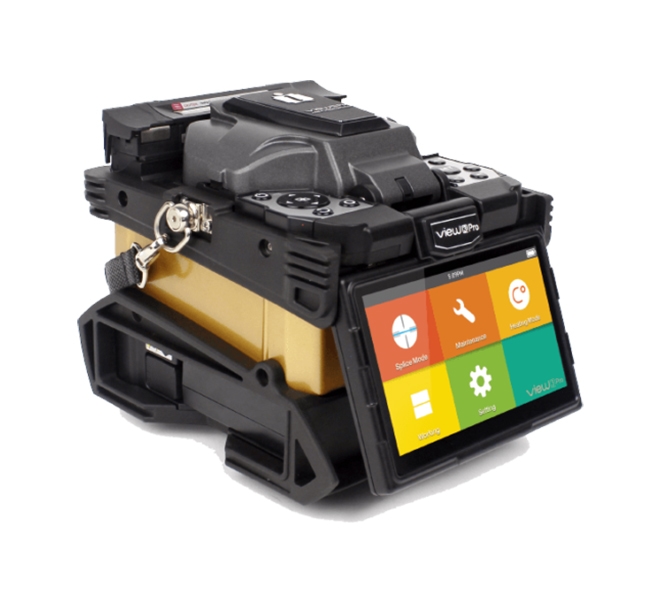

Monitoring Web Service Active V-Groove Fusion Splicer

Name: Monitoring Web Service Active V-Groove Fusion Splicer
Brand: Inno Instrument
SKU: VIEW 3 Pro

Stock Code: VIEW 3 Pro

Joins fiber ends with clad alignment and reports every result over the web.

A fusion splicer with active clad alignment for single fiber work. It runs from a full color touch screen, and its web-based real-time service carries job status beyond the field.

Active clad alignmentSplicing method

7 secSplice time

13 secHeating time

5 inchesColor touch screen

5200 mAhBattery capacity

3White LEDs

Key features

7sec

Splicing in quick mode

Quick mode closes each splice fast, while SM auto mode settles around 9 sec.

0.03dB

Typical splice loss on single mode

On multimode fiber the typical loss drops to 0.01 dB.

60dB

Return loss

Holds back the light reflected from the splice point.

5200mAh

Field battery

Completes a typical 200 splice and heat cycles per charge.

320 ~ 520x

Magnification of the fiber image

Switches between the X, Y, XY and X/Y views.

5500arcs

Electrode life

Keeps the electrode replacement interval long.

DAY-TO-DAY IN THE FIELD

Remote monitoringThe web-based real-time service shows the crew leader where the job stands, as it happens.

Detachable holderThe SOC holder and heating oven come off, so the technician moves between connector types quickly.

Working in the darkWhite LED lighting and the ceramic clamp keep splice quality steady on night shifts.

General Specifications
Model	View 3 Pro
Alignment Method	Active clad alignment
Number of Fiber	Single
Applicable Fibers	SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Cladding Diameter	80 ~ 150 µm
Cleaved Length	5 ~ 16 mm
Typical Splice Loss	SM: 0.03 dB / MM: 0.01 dB / DS: 0.05 dB / NZDS: 0.05 dB / G.657: 0.03 dB
Return Loss	>> 60 dB
Estimated Splice Loss	Available
Splice Time	Quick mode: 7 sec (Avg.) / SM Auto mode: 9 sec (Avg.)
Splice Mode	Max 128 modes
Heating Sleeve Length	20 ~ 60 mm
Heating Time	13 sec
Heating Mode	Max 32 modes
Tension Test	1.96 ~ 2.25 N
Dimension	149W x 177D x 151H mm (including rubber bumper) / 130W x 166D x 140H mm (excluding rubber bumper)
Weight	2.21 kg (with battery) / 1.85 kg (without battery)
White LED	3 White LEDs
Monitor	5.0" Color LCD display, full touch screen
Fiber View	X, Y, XY, X/Y
Magnification	320 ~ 520x
Results Storage	10,000 splice data / 10,000 splice image
Power Supply	AC input 100 ~ 240 V, DC input 9 ~ 14 V
Terminal	USB Type-C / Nano SIM
Battery Capacity	5200 mAh battery capacity, typical 200 cycles (Splice+Heat)
Electrode Life	5500 arc discharges
Environmental Condition
Operating Condition	Altitude: 0 ~ 5000 m Humidity: 0 ~ 95%, non-dew Temperature: -10 ~ 50 °C Wind: up to 15 m/sec
Storage Condition	Humidity: 0 ~ 95%, non-dew Temperature: -40 ~ 80 °C
Environmental Test
Water Resistance	IPx2
Shock Resistance	Drop from 76 cm
Dust Resistance	IP5X

Datasheet

VIEW 3 Pro

pdf6/14/2021

Kullanım Kılavuzu

VIEW 3 Pro

pdf6/14/2021

Fotoğraf

VIEW 3 Pro

png6/15/2021

Monitoring Web Service Active V-Groove Fusion Splicer

Stock Code: VIEW 3 Pro

Joins fiber ends with clad alignment and reports every result over the web.

A fusion splicer with active clad alignment for single fiber work. It runs from a full color touch screen, and its web-based real-time service carries job status beyond the field.

Active clad alignmentSplicing method

7 secSplice time

13 secHeating time

5 inchesColor touch screen

5200 mAhBattery capacity

3White LEDs

Key features

7sec

Splicing in quick mode

Quick mode closes each splice fast, while SM auto mode settles around 9 sec.

0.03dB

Typical splice loss on single mode

On multimode fiber the typical loss drops to 0.01 dB.

60dB

Return loss

Holds back the light reflected from the splice point.

5200mAh

Field battery

Completes a typical 200 splice and heat cycles per charge.

320 ~ 520x

Magnification of the fiber image

Switches between the X, Y, XY and X/Y views.

5500arcs

Electrode life

Keeps the electrode replacement interval long.

DAY-TO-DAY IN THE FIELD

Remote monitoringThe web-based real-time service shows the crew leader where the job stands, as it happens.

Detachable holderThe SOC holder and heating oven come off, so the technician moves between connector types quickly.

Working in the darkWhite LED lighting and the ceramic clamp keep splice quality steady on night shifts.

General Specifications
Model	View 3 Pro
Alignment Method	Active clad alignment
Number of Fiber	Single
Applicable Fibers	SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Cladding Diameter	80 ~ 150 µm
Cleaved Length	5 ~ 16 mm
Typical Splice Loss	SM: 0.03 dB / MM: 0.01 dB / DS: 0.05 dB / NZDS: 0.05 dB / G.657: 0.03 dB
Return Loss	>> 60 dB
Estimated Splice Loss	Available
Splice Time	Quick mode: 7 sec (Avg.) / SM Auto mode: 9 sec (Avg.)
Splice Mode	Max 128 modes
Heating Sleeve Length	20 ~ 60 mm
Heating Time	13 sec
Heating Mode	Max 32 modes
Tension Test	1.96 ~ 2.25 N
Dimension	149W x 177D x 151H mm (including rubber bumper) / 130W x 166D x 140H mm (excluding rubber bumper)
Weight	2.21 kg (with battery) / 1.85 kg (without battery)
White LED	3 White LEDs
Monitor	5.0" Color LCD display, full touch screen
Fiber View	X, Y, XY, X/Y
Magnification	320 ~ 520x
Results Storage	10,000 splice data / 10,000 splice image
Power Supply	AC input 100 ~ 240 V, DC input 9 ~ 14 V
Terminal	USB Type-C / Nano SIM
Battery Capacity	5200 mAh battery capacity, typical 200 cycles (Splice+Heat)
Electrode Life	5500 arc discharges
Environmental Condition
Operating Condition	Altitude: 0 ~ 5000 m Humidity: 0 ~ 95%, non-dew Temperature: -10 ~ 50 °C Wind: up to 15 m/sec
Storage Condition	Humidity: 0 ~ 95%, non-dew Temperature: -40 ~ 80 °C
Environmental Test
Water Resistance	IPx2
Shock Resistance	Drop from 76 cm
Dust Resistance	IP5X
